YY52L-MDP (1987)
Toyota Dyna150
Production
Aug 1987
-
May 1995
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )2L,3L

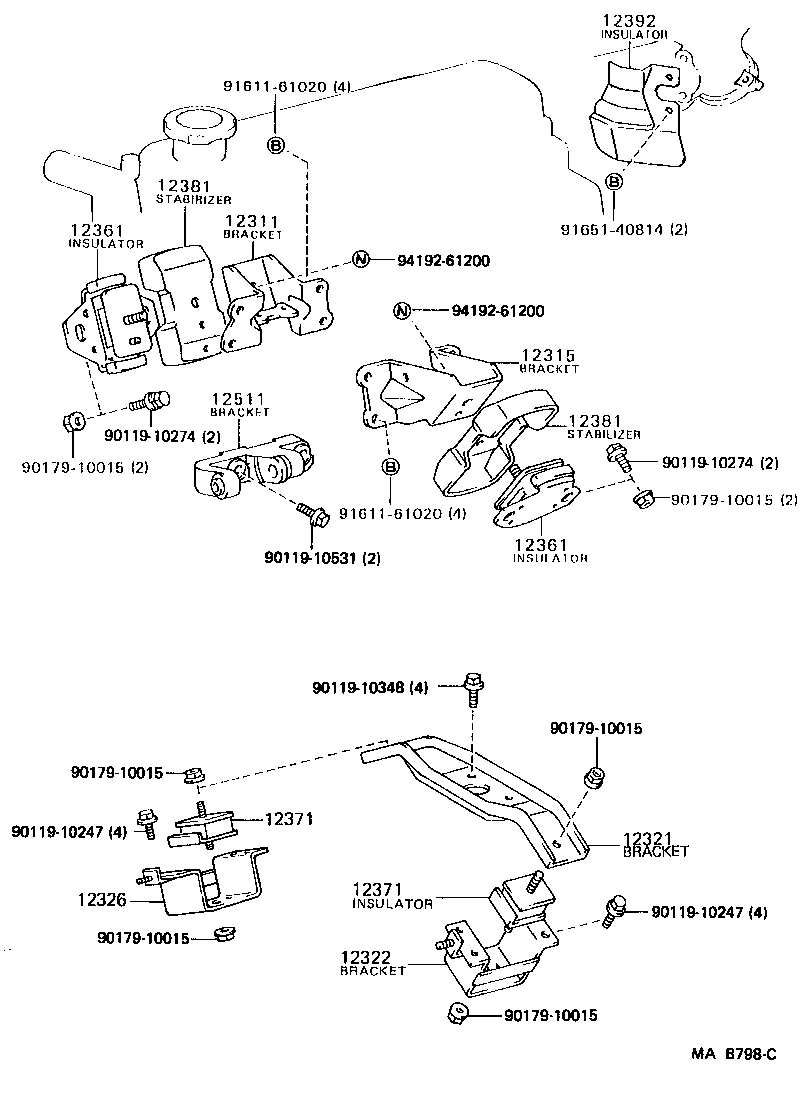

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-71010 |
3Y..YY52,61 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-71010 |
3Y..YY52,61 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-73010 |
3Y..YY52,61 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-71070 |
3Y..YY52,61 |
1 | ||
| 12326 - BRACKET, ENGINE MOUNTING STAY | ||||
| 12326-71010 |
3Y..YY52,61 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-71020 |
3Y..YY52,61 |
2 | ||
| 12361-71020 |
3Y..YY52,61 |
2 | ||
| 12361-71020 |
3Y..YY52,61 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-71020 |
3Y..YY52,61 |
2 | ||
| 12361-71020 |
3Y..YY52,61 |
2 | ||
| 12361-71020 |
3Y..YY52,61 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-54070 |
3Y..YY52,61 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-71030 |
3Y..YY52,61 |
2 | ||
| 12381-71030 |
3Y..YY52,61 |
2 | ||
| 12381-71030 |
3Y..YY52,61 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-71030 |
3Y..YY52,61 |
2 | ||
| 12381-71030 |
3Y..YY52,61 |
2 | ||
| 12381-71030 |
3Y..YY52,61 |
2 | ||
| Common parts | ||||
| 90119-10274 | ||||
| 90119-10348 | ||||
| 90179-10015 | ||||
| 91611-61025 | ||||
| 91612-61020 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
(8708- )3Y
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-71010 |
3Y..YY52,61 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-71010 |
3Y..YY52,61 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-73010 |
3Y..YY52,61 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-71070 |
3Y..YY52,61 |
1 | ||
| 12326 - BRACKET, ENGINE MOUNTING STAY | ||||
| 12326-71010 |
3Y..YY52,61 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-71020 |
3Y..YY52,61 |
2 | ||
| 12361-71020 |
3Y..YY52,61 |
2 | ||
| 12361-71020 |
3Y..YY52,61 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-71020 |
3Y..YY52,61 |
2 | ||
| 12361-71020 |
3Y..YY52,61 |
2 | ||
| 12361-71020 |
3Y..YY52,61 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-54070 |
3Y..YY52,61 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-54070 |
3Y..YY52,61 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-71030 |
3Y..YY52,61 |
2 | ||
| 12381-71030 |
3Y..YY52,61 |
2 | ||
| 12381-71030 |
3Y..YY52,61 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-71030 |
3Y..YY52,61 |
2 | ||
| 12381-71030 |
3Y..YY52,61 |
2 | ||
| 12381-71030 |
3Y..YY52,61 |
2 | ||
| 12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH | ||||
| 12391-72010 |
3Y..YY52,61 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-73011 |
3Y..YY52,61 |
1 | ||
| Common parts | ||||
| 90119-10247 | ||||
| 90119-10274 | ||||
| 90119-10348 | ||||
| 90119-10531 | ||||
| 90179-10015 | ||||
| 91611-61020 | ||||
| 91651-40814 | ||||
| 94192-61200 | ||||
