YY52L-MDP (1987)
Toyota Dyna150
Production
Aug 1987
-
May 1995
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

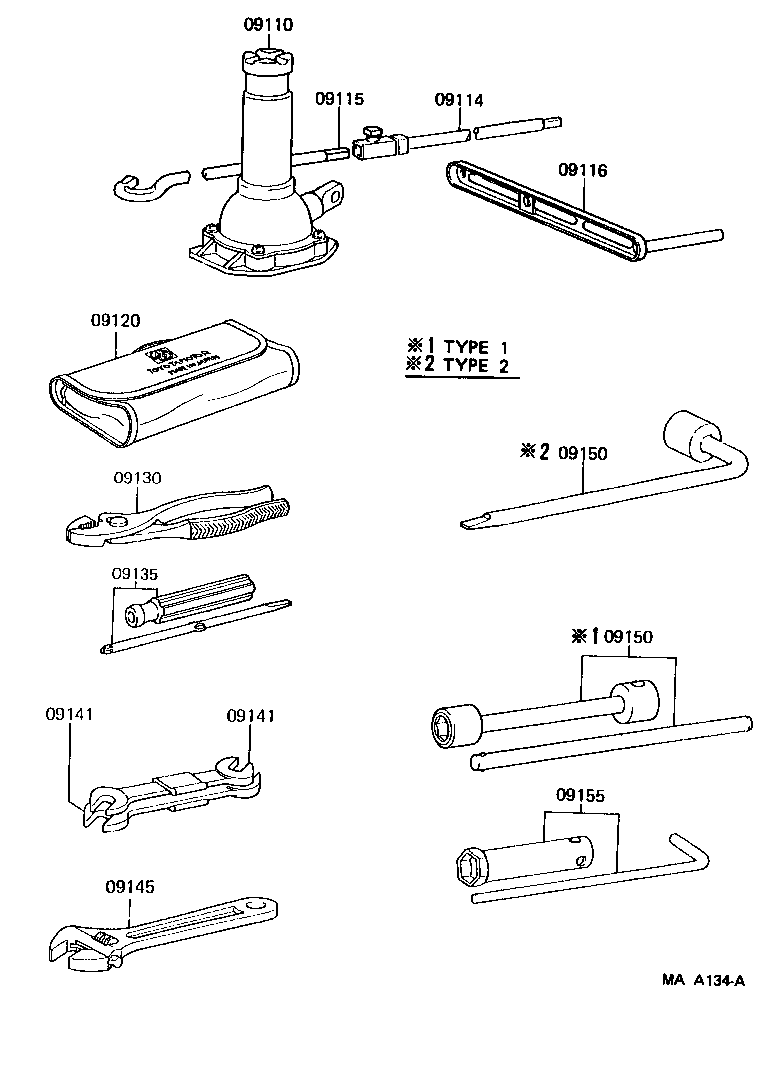

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09110 - JACK ASSY | ||||
| 09111-25070 |
LY6#,YY52,61..GEN |
1 | ||
| 09114 - EXTENSION SUB-ASSY, JACK HANDLE | ||||
| 09114-25020 |
LY6#,YY52,61 |
1 | ||
| 09115 - ROD SUB-ASSY, JACK HANDLE | ||||
| 09115-28020 |
LY6#,YY52,61 |
1 | ||
| 09116 - LEVER, JACK HANDLE | ||||
| 09116-35041 |
LY6#,YY52,61 |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-36060 |
LY6#,YY52,61 |
1 | ||
| 09130 - PLIERS | ||||
| 99913-11500 |
LY6#,YY52,61 |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
LY6#,YY52,61 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11214 |
LY6#,YY52,61 12 X 14 |
1 | ||
| 99914-10810 |
LY6#,YY52,61 8 X 10 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11214 |
LY6#,YY52,61 12 X 14 |
1 | ||
| 99914-10810 |
LY6#,YY52,61 8 X 10 |
1 | ||
| 09145 - WRENCH, MONKEY | ||||
| 99911-11200 |
LY6#,YY52,61 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-25010 |
LY6#,YY52,61..ST |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-25010 |
LY6#,YY52,61..ST |
1 | ||
| 09155 - WRENCH, SPARK PLUG | ||||
| 09155-41010 |
YY52,61 |
1 | ||
