YY51L-MDP (1985)
Toyota Dyna150
(8508- )

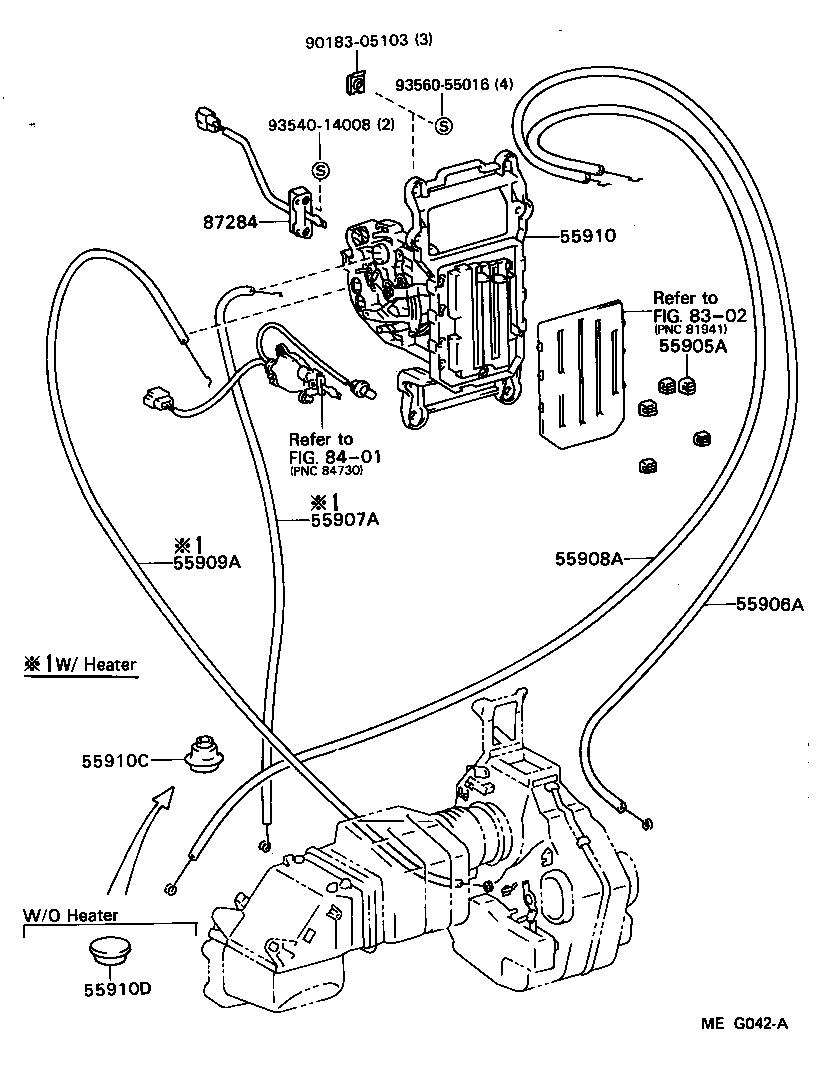

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
LY60,YY5#,6# CABLE LEVER |
3 | ||
| 55905-95707 |
LY60,YY5#,6# BLOWER SW OR VARIABLE RESISTOR |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95406 |
LY60,YY5#,6#..LHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95406 |
LY60,YY5#,6#..LHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95402 |
LY60,YY5#,6# |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95406 |
LY60,YY5#,6#..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95410 |
LY60,YY5#,6#..EUR,GEN W/BOOST VENTILATOR |
1 | ||
| 55910-95409 |
LY60,YY5#,60..T3,TW W/HEATER |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-24215 |
LY60,YY5#,60..T3,TW W/HEATER |
1 | ||
| 90950-01127 |
LY60,YY5#,6#..EUR,GEN W/BOOST VENTILATOR |
1 | ||
| 55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE) | ||||
| 90950-01127 |
LY60,YY5#,6#..EUR,GEN |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95400 |
YY5#,6#..GEN |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 93540-14008 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

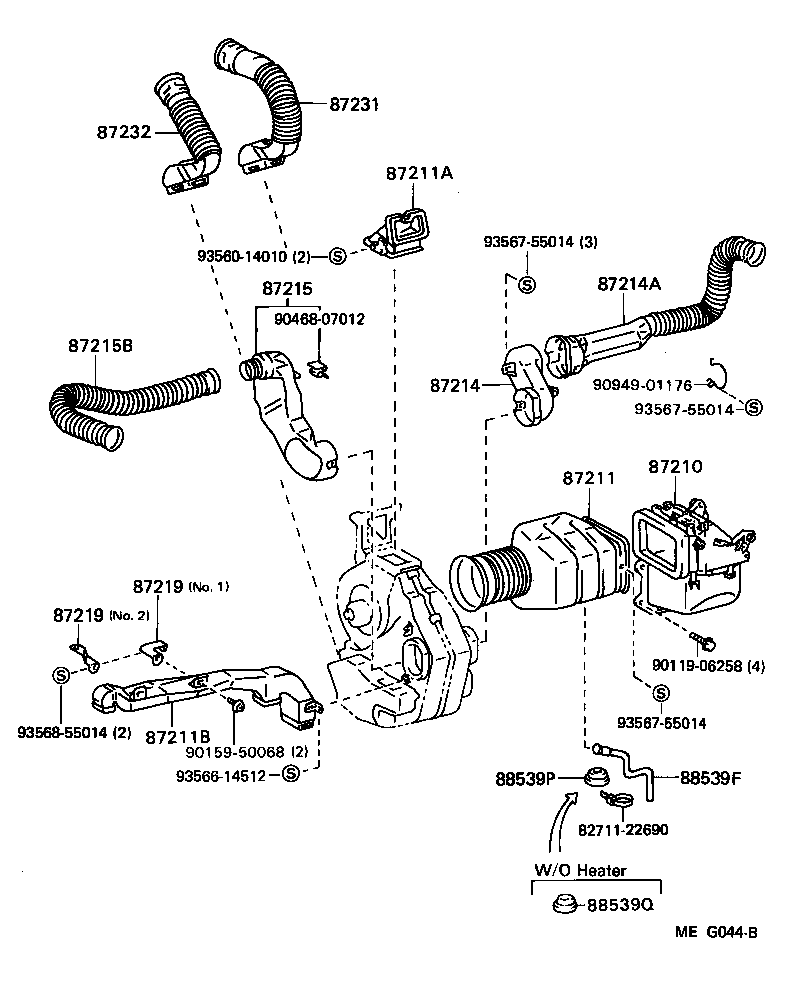

(8508- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95404 |
LY60,YY5#,6#..LHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-95405 |
LY60,YY5#,6#..LHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-95403 |
LY60,YY5#,6#..LHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-95409 |
LY60,YY5#,6#..LHD |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55848-95401 |
LY60,YY5#,6#..LHD |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55847-95400 |
LY60,YY5#,6#..LHD |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55843-95406 |
LY60,YY5#,6#..LHD |
1 | ||
| 87215B - DUCT, AIR, SIDE NO.3 LH | ||||
| 55863-95405 |
LY60,YY5#,6#..LHD |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95403 |
LY60,YY5#,6# NO.2 |
1 | ||
| 87214-95402 |
LY60,YY5#,6# NO.1 |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95403 |
LY60,YY5#,6# NO.2 |
1 | ||
| 87214-95402 |
LY60,YY5#,6# NO.1 |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-95408 |
LY60,YY5#,6#..LHD |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-95407 |
LY60,YY5#,6#..LHD |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-95403 |
LY60,YY5#,6# |
1 | ||
| 88539P - GROMMET(FOR DRAIN HOSE) | ||||
| 88897-30580 |
LY60,YY5#,6# |
1 | ||
| 88539Q - PLUG, HOLE (FOR DRAIN HOSE HOLE) | ||||
| 90950-01061 |
LY60,YY5#,6#..EUR,GEN |
1 | ||
| Common parts | ||||
| 82711-22690 | ||||
| 90119-06258 | ||||
| 90159-50068 | ||||
| 90468-07012 | ||||
| 90949-01176 | ||||
| 93560-14010 | ||||
| 93566-14512 | ||||
| 93567-55014 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 2(8708-9110)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90183-05103 | ||||
| 90950-01127 | ||||
| 93540-14008 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
