YY51L-MDP (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1986
Engine 2Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )ST..GEN

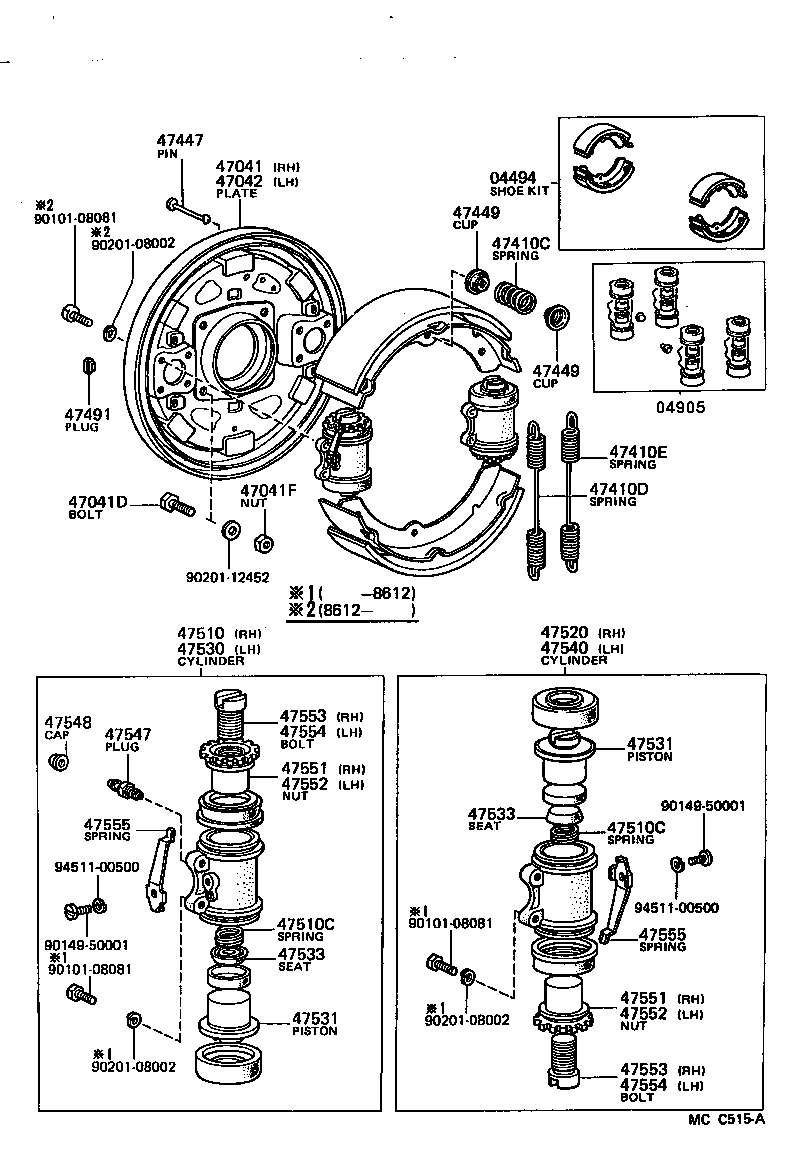

Click highlighted areas on diagram

diagram 04494 04905 47041 47041D 47041F 47042 47410C 47410D 47410E 47447 47449 47449 47491 47510 47510C 47510C 47520 47530 47531 47531 47533 47533 47540 47547 47548 47551 47551 47552 47552 47553 47553 47554 47554 47555 47555 9010108081 9010108081 9010108081 9014950001 9014950001 9020108002 9020108002 9020108002 9020112452 9451100500 9451100500
Part # Description Qty Price
04494 - SHOE KIT, FRONT BRAKE
04494-25020

LY60,YY5#,6#..ST..GEN

 1
04905 - CUP KIT, FRONT WHEEL CYLINDER
04905-25020

LY60,YY5#,6#..ST..GEN

 1
47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH
47041-25050

LY60,YY5#,6#..ST..GEN

 1
47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)
90119-12096

LY60,YY5#,6#..ST..GEN

 8
47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)
94115-71200

LY60,YY5#,6#..ST..GEN

 8
47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH
47042-25040

LY60,YY5#,6#..ST..GEN

 1
47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN)
90501-20756

LY60,YY5#,6#..ST..GEN

 4
47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
90506-26009

LY60,YY5#,6#..ST..GEN

 2
47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
90506-26009

LY60,YY5#,6#..ST..GEN

 2
47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47447-20010

LY60,YY5#,6#..ST..GEN

 4
47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47449-30020

LY60,YY5#,6#..ST..GEN

 8
47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47449-30020

LY60,YY5#,6#..ST..GEN

 8
47491 - PLUG, HOLE(FOR FRONT BRAKE)
47491-36010

LY60,YY5#,6#..ST..GEN

 8
47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER
47510-29195

LY60,YY5#,6#..ST..GEN

 1
47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)
90501-10759

LY60,YY5#,6#..ST..GEN

 4
47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)
90501-10759

LY60,YY5#,6#..ST..GEN

 4
47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)
47520-29115

LY60,YY5#,6#..ST..GEN

 1
47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER
47530-29195

LY60,YY5#,6#..ST..GEN

 1
47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)
47531-60010

LY60,YY5#,6#..ST..GEN

 4
47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)
47531-60010

LY60,YY5#,6#..ST..GEN

 4
47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)
47533-25010

LY60,YY5#,6#..ST..GEN

 4
47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)
47533-25010

LY60,YY5#,6#..ST..GEN

 4
47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)
47540-29115

LY60,YY5#,6#..ST..GEN

 1
47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE)
47547-12010

LY60,YY5#,6#..ST..GEN

 2
47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)
31478-30010

LY60,YY5#,6#..ST..GEN

 2
47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE
47551-25050

LY60,YY5#,6#..ST..GEN

 2
47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE
47551-25050

LY60,YY5#,6#..ST..GEN

 2
47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE
47552-25050

LY60,YY5#,6#..ST..GEN

 2
47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE
47552-25050

LY60,YY5#,6#..ST..GEN

 2
47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK
47553-36021

LY60,YY5#,6#..ST..GEN

 2
47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK
47553-36021

LY60,YY5#,6#..ST..GEN

 2
47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK
47554-36021

LY60,YY5#,6#..ST..GEN

 2
47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK
47554-36021

LY60,YY5#,6#..ST..GEN

 2
47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)
47555-25010

LY60,YY5#,6#..ST..GEN

 4
47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)
47555-25010

LY60,YY5#,6#..ST..GEN

 4
Common parts
90101-08081
90149-50001
90201-08002
90201-12452
94511-00500
