LY61R-MDBQ3 (1988)

Toyota Dyna150

Production Aug 1988 - May 1995
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

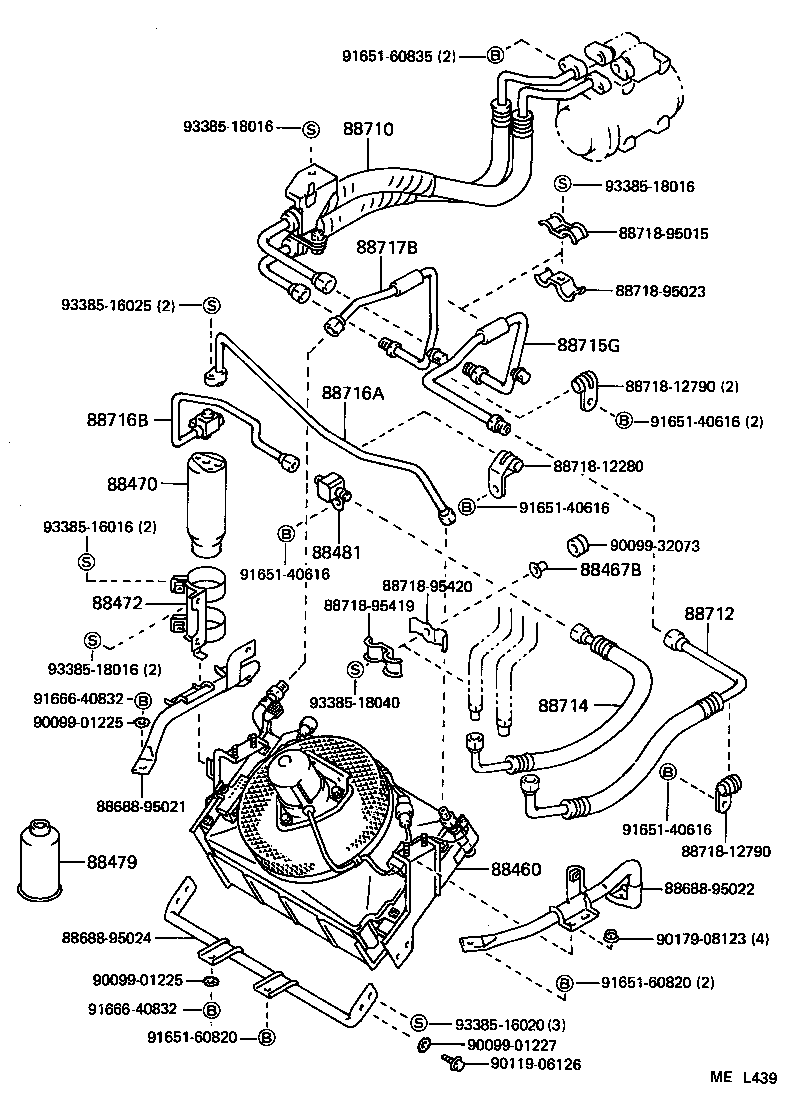

ILLUST NO. 1 OF 3(8808-9309)LY61..RHD

Click highlighted areas on diagram

DEALER OPTION

diagram 88460 88467B 88470 88472 88479 88481 8868895021 8868895022 8868895024 88710 88712 88714 88715G 88716A 88716B 88717B 8871812280 8871812790 8871812790 8871895015 8871895023 8871895419 8871895420 9009901225 9009901225 9009901227 9009932073 9011906126 9017908123 9165140616 9165140616 9165140616 9165140616 9165160820 9165160820 9165160835 9166640832 9166640832 9338516016 9338516020 9338516025 9338518016 9338518016 9338518016 9338518040
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95015

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88460-25030

LY61..RHD..(T2,T3)

 1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010

YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST

 1
88467-22010

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16040

LY61..T2;LY61..ARL

 1
88471-20050

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95011

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST

250G

 2
90986-02004

LY61..ARL..IV;LY61,YY61..RHD..(T2,TW)

250G

 2
90986-02008

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

200G

 2
90986-02007

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

250G

 1
88481 - GLASS, SIGHT
88481-87002

LY61..T2,T3;LY61..TW..ST

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-95013

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95033

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88712-25050

LY61..RHD..(T2,T3)

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95016

LY61..T2,T3;LY61..TW..ST

 1
88721-25030

LY61..T2,T3;LY61..TW..ST

 1
88715G - TUBE, DISCHARGE, G
88715-95012

LY61..T2,T3;LY61..TW..ST

 1
88715-25070

LY61..T2,T3;LY61..TW..ST

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95021

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88716-25050

LY61..RHD..(T2,T3)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95022

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88716-25070

LY61..RHD..(T2,T3)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-25090

LY61..RHD..(T2,T3)

 1
88717-95015

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
Common parts
88688-95021
88688-95022
88688-95024
88718-12280
88718-12790
88718-95015
88718-95023
88718-95419
88718-95420
90099-01225
90099-01227
90099-32073
90119-06126
90179-08123
91651-40616
91651-60820
91651-60835
91666-40832
93385-16016
93385-16020
93385-16025
93385-18016
93385-18040

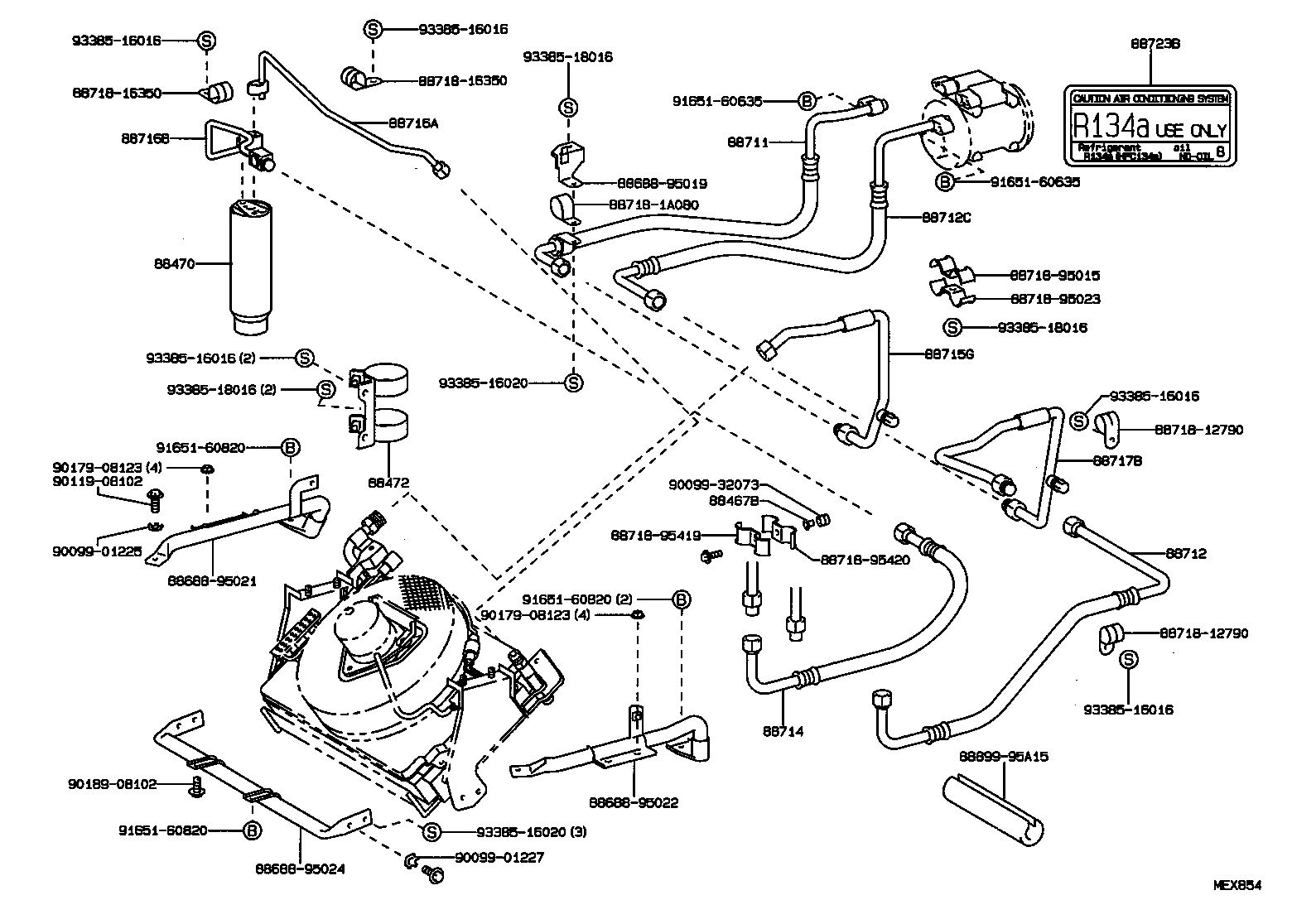

ILLUST NO. 1 OF 3(8808-9309)LY61..RHD

Click highlighted areas on diagram

MAKER OPTION

diagram 88467B 88470 88470C 88472 88479 88481 8868895019 8868895021 8868895022 8868895024 88711 88712 88712C 88714 88715G 88716A 88716B 88717B 8871812280 8871812790 8871812790 887181A080 887181A080 8871895015 8871895023 8871895419 8871895420 9009932073 9017908123 9017908123 9161140816 9161160835 9165140616 9165140616 9165140616 9165140616 9165140620 9165160820 9165160820 9165160820 9165160835 9338516016 9338516025 9338518016
Part # Description Qty Price
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010

YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST

 1
88467-22010

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16040

LY61..T2;LY61..ARL

 1
88471-20050

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95011

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST

250G

 2
90986-02004

LY61..ARL..IV;LY61,YY61..RHD..(T2,TW)

250G

 2
90986-02008

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

200G

 2
90986-02007

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

250G

 1
88481 - GLASS, SIGHT
88481-87002

LY61..T2,T3;LY61..TW..ST

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95043

LY61..T2,T3;LY61..TW..ST

 1
88711-25060

LY61..T2,T3;LY61..TW..ST

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95033

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88712-25050

LY61..RHD..(T2,T3)

 1
88712C - HOSE, SUCTION
88712-95035

LY61..T2,T3;LY61..TW..ST

 1
88712-25080

LY61..T2,T3;LY61..TW..ST

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95016

LY61..T2,T3;LY61..TW..ST

 1
88721-25030

LY61..T2,T3;LY61..TW..ST

 1
88715G - TUBE, DISCHARGE, G
88715-95012

LY61..T2,T3;LY61..TW..ST

 1
88715-25070

LY61..T2,T3;LY61..TW..ST

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95021

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88716-25050

LY61..RHD..(T2,T3)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95022

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88716-25070

LY61..RHD..(T2,T3)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-25090

LY61..RHD..(T2,T3)

 1
88717-95015

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
Common parts
88688-95019
88688-95021
88688-95022
88688-95024
88718-12280
88718-12790
88718-1A080
88718-95015
88718-95023
88718-95419
88718-95420
90099-32073
90179-08123
91611-40816
91611-60835
91651-40616
91651-40620
91651-60820
91651-60835
93385-16016
93385-16025
93385-18016

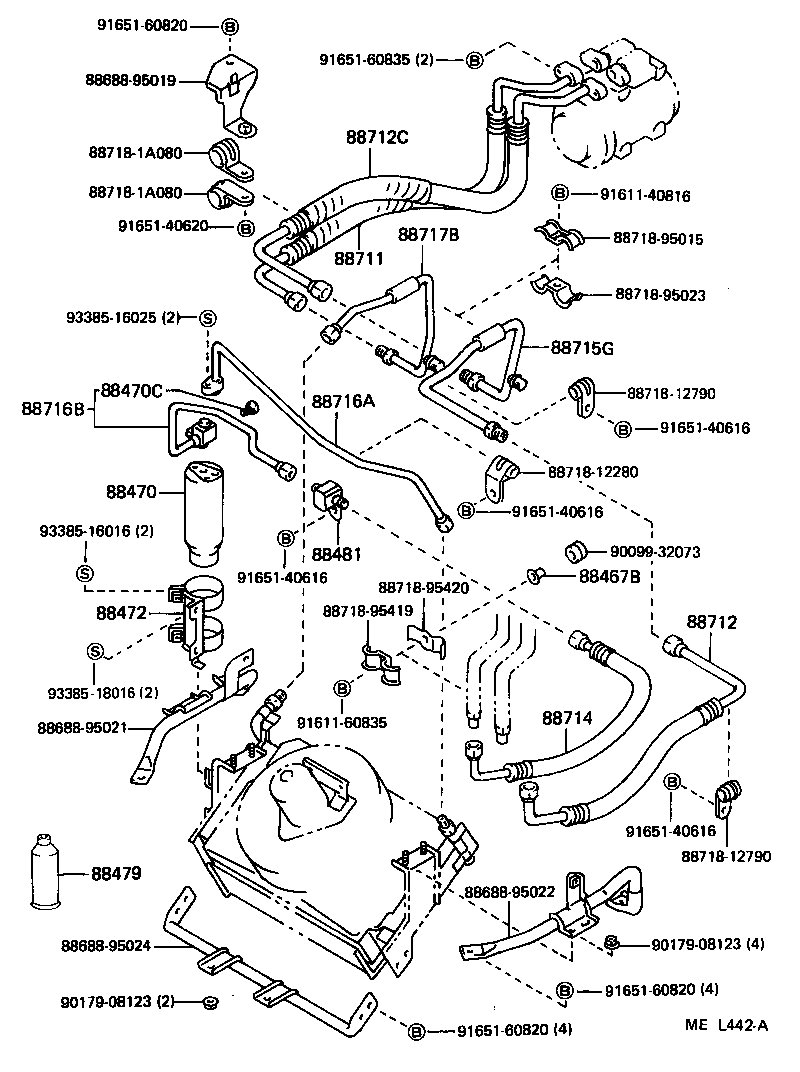

ILLUST NO. 1 OF 3(9309- )LY61..RHD

Click highlighted areas on diagram

DEALER OPTION

diagram 8837530280 8837530290 88460 88467B 88470 88472 88479 8868895019 8868895021 8868895022 8868895024 88711 88712 88712C 88714 88715G 88716A 88716B 88717B 8871812790 8871812790 8871816350 8871816350 887181A080 8871895015 8871895023 8871895419 8871895420 88723B 8889995A15 9009120812 9009901225 9009901227 9009914119 9009914119 9009914119 9009914120 9009914120 9009914121 9009914121 9009932073 9011906126 9011908102 9017908123 9017908123 9018908102 9165160635 9165160635 9165160820 9165160820 9165160820 9338516016 9338516016 9338516016 9338516016 9338516016 9338516020 9338516020 9338516025 9338516025 9338518016 9338518016 9338518016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95015

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88460-25030

LY61..RHD..(T2,T3)

 1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010

YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST

 1
88467-22010

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16040

LY61..T2;LY61..ARL

 1
88471-20050

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95011

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST

250G

 2
90986-02004

LY61..ARL..IV;LY61,YY61..RHD..(T2,TW)

250G

 2
90986-02008

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

200G

 2
90986-02007

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

250G

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95043

LY61..T2,T3;LY61..TW..ST

 1
88711-25060

LY61..T2,T3;LY61..TW..ST

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95033

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88712-25050

LY61..RHD..(T2,T3)

 1
88712C - HOSE, SUCTION
88712-95035

LY61..T2,T3;LY61..TW..ST

 1
88712-25080

LY61..T2,T3;LY61..TW..ST

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95016

LY61..T2,T3;LY61..TW..ST

 1
88721-25030

LY61..T2,T3;LY61..TW..ST

 1
88715G - TUBE, DISCHARGE, G
88715-95012

LY61..T2,T3;LY61..TW..ST

 1
88715-25070

LY61..T2,T3;LY61..TW..ST

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95021

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88716-25050

LY61..RHD..(T2,T3)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95022

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88716-25070

LY61..RHD..(T2,T3)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-25090

LY61..RHD..(T2,T3)

 1
88717-95015

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

 1
88723-12030

YY61..T2;LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
Common parts
88375-30280
88375-30290
88688-95019
88688-95021
88688-95022
88688-95024
88718-12790
88718-16350
88718-1A080
88718-95015
88718-95023
88718-95419
88718-95420
88899-95A15
90091-20812
90099-01225
90099-01227
90099-14119
90099-14120
90099-14121
90099-32073
90119-06126
90119-08102
90179-08123
90189-08102
91651-60635
91651-60820
93385-16016
93385-16020
93385-16025
93385-18016

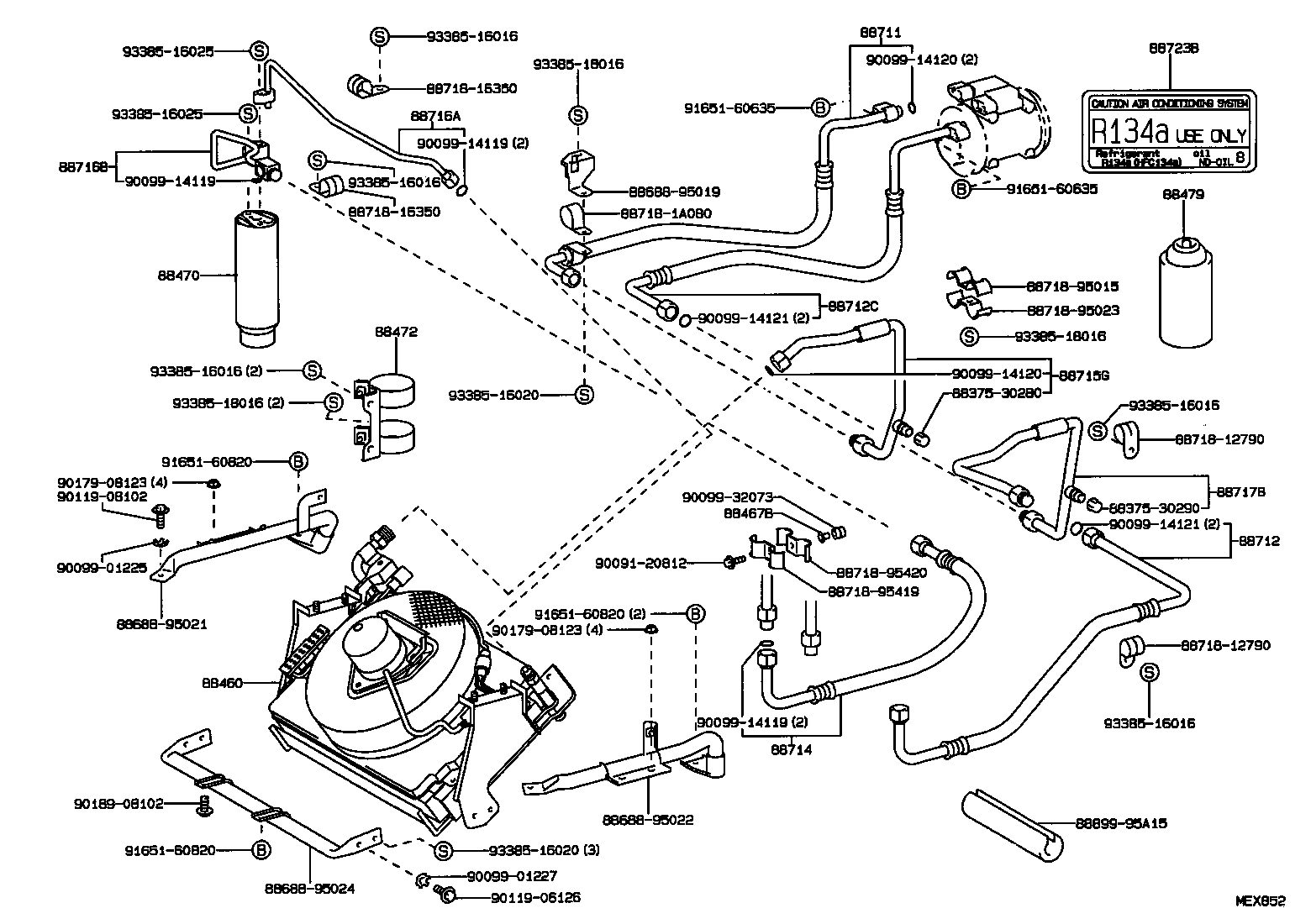

ILLUST NO. 1 OF 3(9309- )LY61..RHD

Click highlighted areas on diagram

MAKER OPTION

diagram 88467B 88470 88472 8868895019 8868895021 8868895022 8868895024 88711 88712 88712C 88714 88715G 88716A 88716B 88717B 8871812790 8871812790 8871816350 8871816350 887181A080 8871895015 8871895023 8871895419 8871895420 88723B 8889995A15 9009901225 9009901227 9009932073 9011908102 9017908123 9017908123 9018908102 9165160635 9165160635 9165160820 9165160820 9165160820 9338516016 9338516016 9338516016 9338516016 9338516016 9338516020 9338516020 9338518016 9338518016 9338518016
Part # Description Qty Price
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010

YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST

 1
88467-22010

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16040

LY61..T2;LY61..ARL

 1
88471-20050

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95011

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95043

LY61..T2,T3;LY61..TW..ST

 1
88711-25060

LY61..T2,T3;LY61..TW..ST

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95033

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88712-25050

LY61..RHD..(T2,T3)

 1
88712C - HOSE, SUCTION
88712-95035

LY61..T2,T3;LY61..TW..ST

 1
88712-25080

LY61..T2,T3;LY61..TW..ST

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95016

LY61..T2,T3;LY61..TW..ST

 1
88721-25030

LY61..T2,T3;LY61..TW..ST

 1
88715G - TUBE, DISCHARGE, G
88715-95012

LY61..T2,T3;LY61..TW..ST

 1
88715-25070

LY61..T2,T3;LY61..TW..ST

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95021

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88716-25050

LY61..RHD..(T2,T3)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95022

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88716-25070

LY61..RHD..(T2,T3)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-25090

LY61..RHD..(T2,T3)

 1
88717-95015

LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040

LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST

 1
88723-12030

YY61..T2;LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
Common parts
88688-95019
88688-95021
88688-95022
88688-95024
88718-12790
88718-16350
88718-1A080
88718-95015
88718-95023
88718-95419
88718-95420
88899-95A15
90099-01225
90099-01227
90099-32073
90119-08102
90179-08123
90189-08102
91651-60635
91651-60820
93385-16016
93385-16020
93385-18016
