LY61R-MDB (1988)

Toyota Dyna150

Production Aug 1988 - May 1995
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3L

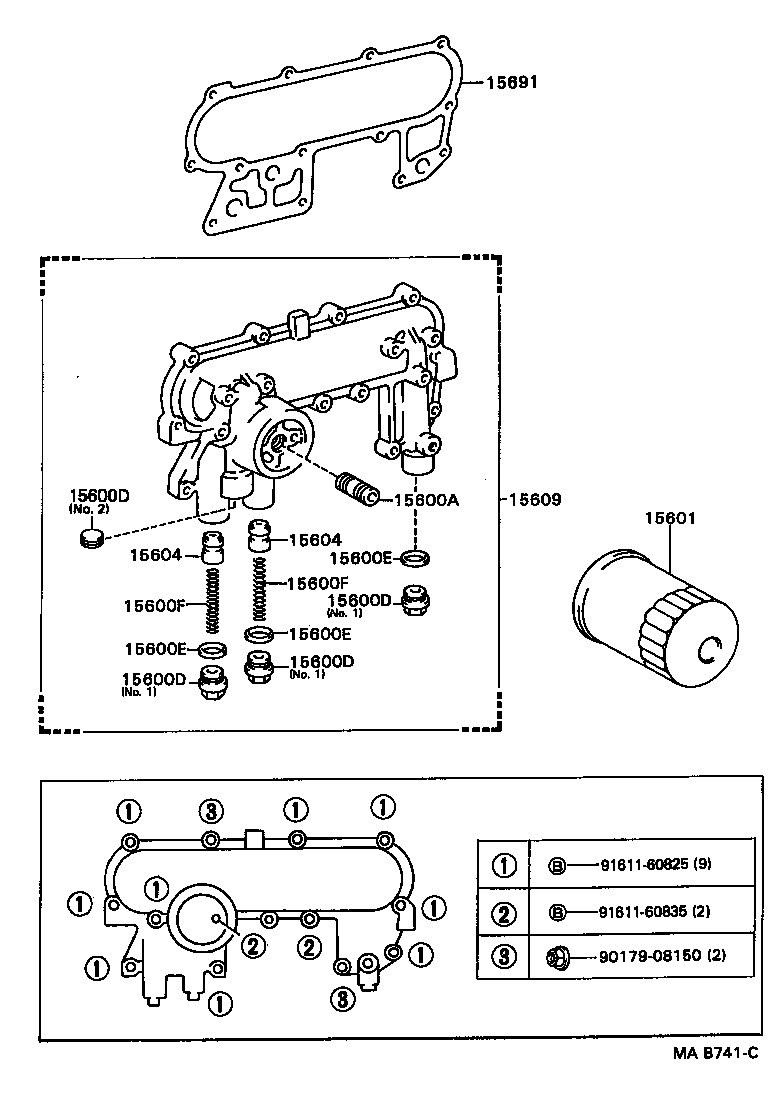

Click highlighted areas on diagram

diagram 15600A 15600D 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15691 9017908150 9161160825 9161160835
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19011

3L..LY61

 1
15116-54010

2L,3L..LY6#

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,3L..LY6#

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,3L..LY6#

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,3L..LY6#

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,3L..LY6#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18021

3L..LY61

 3
90430-18029

3L..LY61

 3
90430-18011

2L,3L..LY6#

 3
90430-18001

3L..LY61

 3
15600E - WASHER(FOR OIL FILTER)
90430-18021

3L..LY61

 3
90430-18029

3L..LY61

 3
90430-18011

2L,3L..LY6#

 3
90430-18001

3L..LY61

 3
15600E - WASHER(FOR OIL FILTER)
90430-18021

3L..LY61

 3
90430-18029

3L..LY61

 3
90430-18011

2L,3L..LY6#

 3
90430-18001

3L..LY61

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L,3L..LY6#

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L,3L..LY6#

 2
15601 - FILTER SUB-ASSY, OIL
15600-41010

2L,3L..LY6#

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L,3L..LY6#

 2
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L,3L..LY6#

 2
Common parts
90179-08150
91611-60825
91611-60835
