LY61L-MDP (1988)
Toyota Dyna150

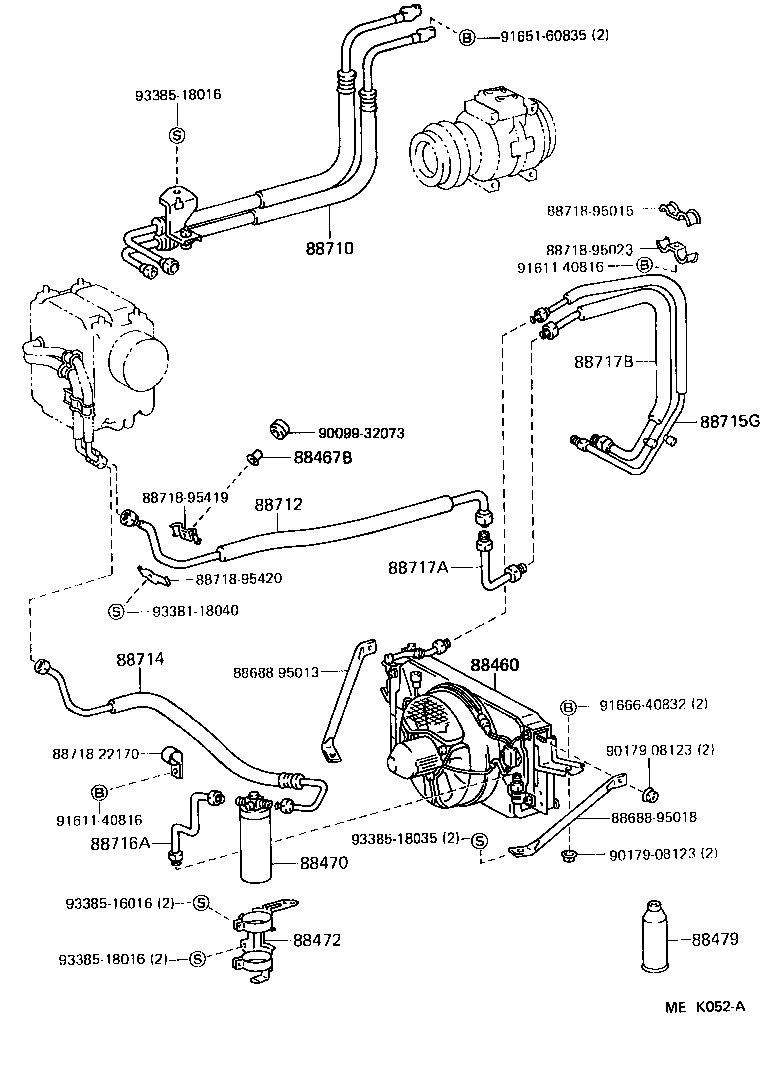

ILLUST NO. 1 OF 3(8708-9309)LHD
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95016 |
LY60,YY52,61..LHD |
1 | ||
| 88460-95018 |
LY61..LHD |
1 | ||
| 88460-25040 |
LY61..LHD |
1 | ||
| 88460-25020 |
YY52,61..LHD |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-22010 |
YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST |
1 | ||
| 88467-22010 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95700 |
YY52,61..LHD DEALER OPTION |
1 | ||
| 88471-95401 |
YY52,61..LHD MAKER OPTION |
1 | ||
| 88471-95010 |
LY61..LHD |
1 | ||
| 88471-20050 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95012 |
LY61..LHD |
1 | ||
| 88472-25050 |
LY61..LHD |
1 | ||
| 88472-25030 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
YY52,61..LHD 400G |
2 | ||
| 90986-02001 |
LY61..LHD 400G |
2 | ||
| 90986-02004 |
YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST 250G |
2 | ||
| 90986-02008 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST 200G |
2 | ||
| 90986-02004 |
YY52,61..LHD 250G |
2 | ||
| 90986-02007 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST 250G |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-95010 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-25060 |
LY61..LHD |
1 | ||
| 88712-95032 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88712-95034 |
LY61..LHD |
1 | ||
| 88712-95015 |
LY60,YY52,61..LHD |
1 | ||
| 88712-25040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95017 |
YY52,61..LHD |
1 | ||
| 88721-95013 |
LY60,YY52,61..LHD |
1 | ||
| 88721-95016 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88721-25030 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88721-25020 |
YY52,61..LHD |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-95012 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88715-25070 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88715-25060 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-25060 |
LY61..LHD |
1 | ||
| 88716-95023 |
LY61..LHD |
1 | ||
| 88716-25040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-25070 |
YY52,61..LHD |
1 | ||
| 88717-95012 |
LY60,YY52,61..LHD |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95016 |
LY61..LHD |
1 | ||
| 88717-95013 |
LY60,YY52,61..LHD |
1 | ||
| 88717-25080 |
YY52,61..LHD |
1 | ||
| 88717-25100 |
LY61..LHD |
1 | ||
| Common parts | ||||
| 88688-95013 | ||||
| 88688-95018 | ||||
| 88718-22170 | ||||
| 88718-95015 | ||||
| 88718-95023 | ||||
| 88718-95419 | ||||
| 88718-95420 | ||||
| 90099-32073 | ||||
| 90179-08123 | ||||
| 91611-40816 | ||||
| 91651-60835 | ||||
| 91666-40832 | ||||
| 93381-18040 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93385-18035 | ||||

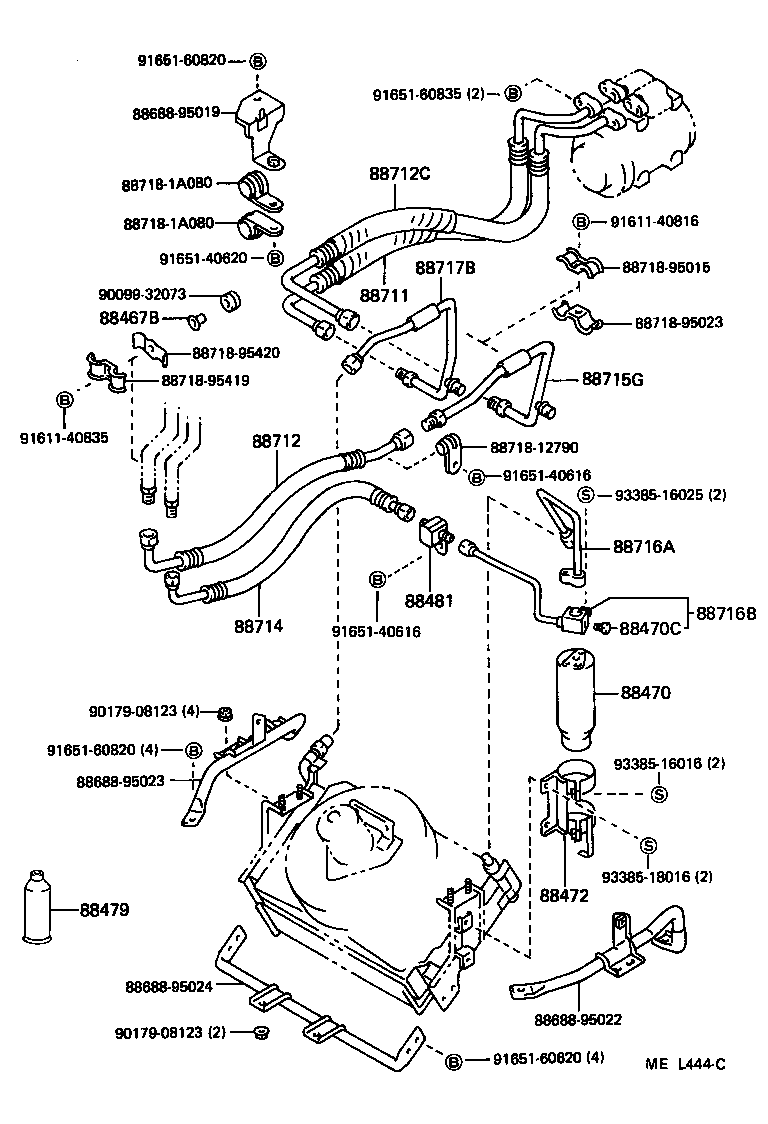

ILLUST NO. 1 OF 3(8808-9309)LY61..LHD
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-22010 |
YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST |
1 | ||
| 88467-22010 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95700 |
YY52,61..LHD DEALER OPTION |
1 | ||
| 88471-95401 |
YY52,61..LHD MAKER OPTION |
1 | ||
| 88471-95010 |
LY61..LHD |
1 | ||
| 88471-20050 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-12020 |
LY61..ST..GEN |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95012 |
LY61..LHD |
1 | ||
| 88472-25050 |
LY61..LHD |
1 | ||
| 88472-25030 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
YY52,61..LHD 400G |
2 | ||
| 90986-02001 |
LY61..LHD 400G |
2 | ||
| 90986-02004 |
YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST 250G |
2 | ||
| 90986-02008 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST 200G |
2 | ||
| 90986-02004 |
YY52,61..LHD 250G |
2 | ||
| 90986-02007 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST 250G |
1 | ||
| 88481 - GLASS, SIGHT | ||||
| 88481-87002 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95043 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88711-95012 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88711-25050 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88711-25060 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-25060 |
LY61..LHD |
1 | ||
| 88712-95032 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88712-95034 |
LY61..LHD |
1 | ||
| 88712-95015 |
LY60,YY52,61..LHD |
1 | ||
| 88712-25040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-25070 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88712-95035 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88712-25080 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88712-95018 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95017 |
YY52,61..LHD |
1 | ||
| 88721-95013 |
LY60,YY52,61..LHD |
1 | ||
| 88721-95016 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88721-25030 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88721-25020 |
YY52,61..LHD |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-95012 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88715-25070 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88715-25060 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-25060 |
LY61..LHD |
1 | ||
| 88716-95023 |
LY61..LHD |
1 | ||
| 88716-25040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-25100 |
YY52,61..LHD |
1 | ||
| 88716-95024 |
LY61..LHD |
1 | ||
| 88716-25080 |
LY61..LHD |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95016 |
LY61..LHD |
1 | ||
| 88717-95013 |
LY60,YY52,61..LHD |
1 | ||
| 88717-25080 |
YY52,61..LHD |
1 | ||
| 88717-25100 |
LY61..LHD |
1 | ||
| Common parts | ||||
| 88688-95019 | ||||
| 88688-95022 | ||||
| 88688-95023 | ||||
| 88688-95024 | ||||
| 88718-12790 | ||||
| 88718-1A080 | ||||
| 88718-95015 | ||||
| 88718-95023 | ||||
| 88718-95419 | ||||
| 88718-95420 | ||||
| 90099-32073 | ||||
| 90179-08123 | ||||
| 91611-40816 | ||||
| 91611-40835 | ||||
| 91651-40616 | ||||
| 91651-40620 | ||||
| 91651-60620 | ||||
| 91651-60820 | ||||
| 91651-60835 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
| 93385-18016 | ||||

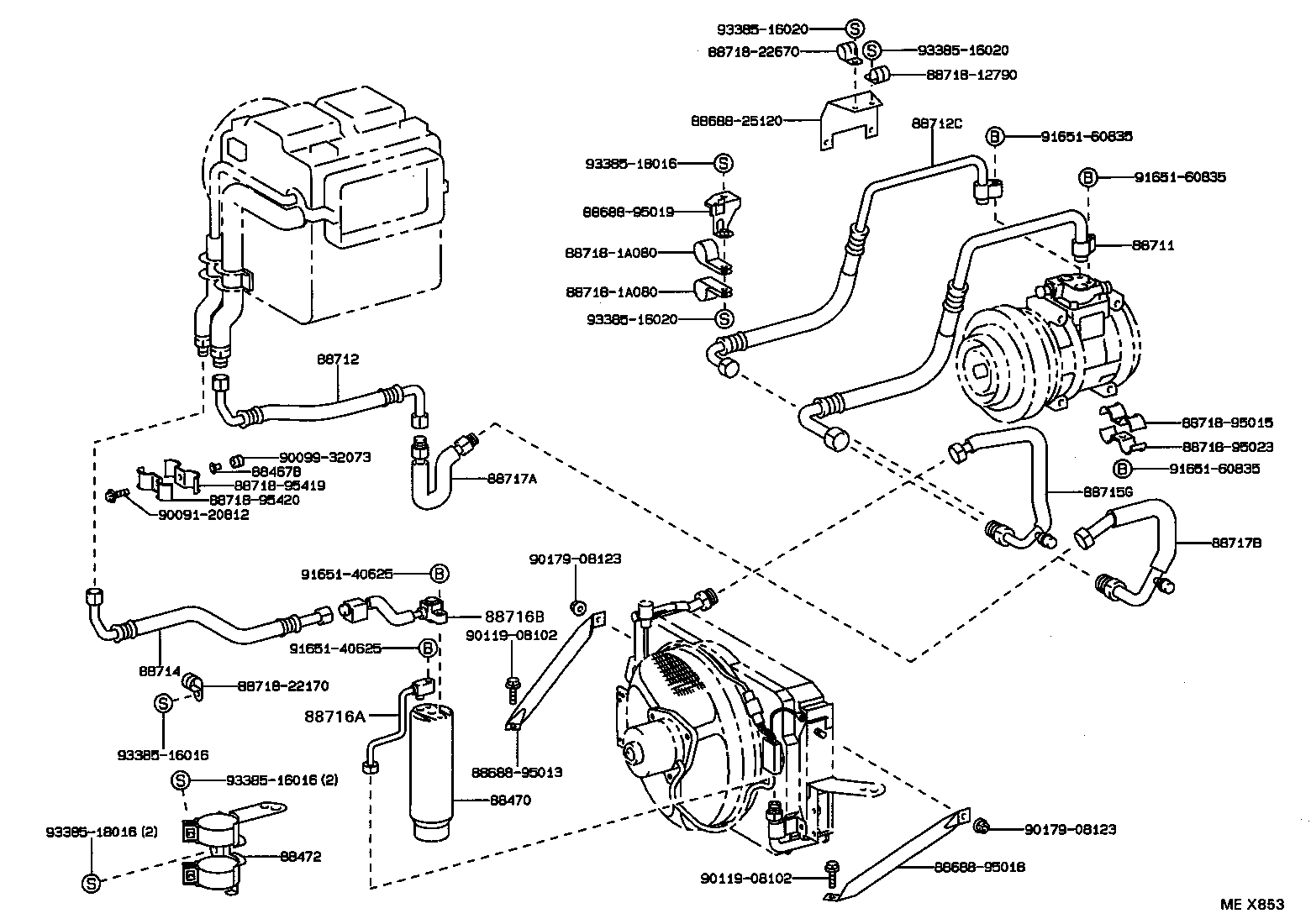

ILLUST NO. 1 OF 3(9309- )YY52,61..LHD
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-22010 |
YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST |
1 | ||
| 88467-22010 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95700 |
YY52,61..LHD DEALER OPTION |
1 | ||
| 88471-95401 |
YY52,61..LHD MAKER OPTION |
1 | ||
| 88471-95010 |
LY61..LHD |
1 | ||
| 88471-20050 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95012 |
LY61..LHD |
1 | ||
| 88472-25050 |
LY61..LHD |
1 | ||
| 88472-25030 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95043 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88711-95012 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88711-25050 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88711-25060 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-25060 |
LY61..LHD |
1 | ||
| 88712-95032 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88712-95034 |
LY61..LHD |
1 | ||
| 88712-95015 |
LY60,YY52,61..LHD |
1 | ||
| 88712-25040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-25070 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88712-95035 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88712-25080 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88712-95018 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95017 |
YY52,61..LHD |
1 | ||
| 88721-95013 |
LY60,YY52,61..LHD |
1 | ||
| 88721-95016 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88721-25030 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88721-25020 |
YY52,61..LHD |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-95012 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88715-25070 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88715-25060 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-25060 |
LY61..LHD |
1 | ||
| 88716-95023 |
LY61..LHD |
1 | ||
| 88716-25040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-25100 |
YY52,61..LHD |
1 | ||
| 88716-95024 |
LY61..LHD |
1 | ||
| 88716-25080 |
LY61..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-25070 |
YY52,61..LHD |
1 | ||
| 88717-95012 |
LY60,YY52,61..LHD |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95016 |
LY61..LHD |
1 | ||
| 88717-95013 |
LY60,YY52,61..LHD |
1 | ||
| 88717-25080 |
YY52,61..LHD |
1 | ||
| 88717-25100 |
LY61..LHD |
1 | ||
| Common parts | ||||
| 88688-25120 | ||||
| 88688-95013 | ||||
| 88688-95018 | ||||
| 88688-95019 | ||||
| 88718-12790 | ||||
| 88718-1A080 | ||||
| 88718-22170 | ||||
| 88718-22670 | ||||
| 88718-95015 | ||||
| 88718-95023 | ||||
| 88718-95419 | ||||
| 88718-95420 | ||||
| 90091-20812 | ||||
| 90099-32073 | ||||
| 90119-08102 | ||||
| 90179-08123 | ||||
| 91651-40625 | ||||
| 91651-60835 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
ILLUST NO. 1 OF 3(9309- )YY52,61..LHD
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95016 |
LY60,YY52,61..LHD |
1 | ||
| 88460-95018 |
LY61..LHD |
1 | ||
| 88460-25040 |
LY61..LHD |
1 | ||
| 88460-25020 |
YY52,61..LHD |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-22010 |
YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST |
1 | ||
| 88467-22010 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95700 |
YY52,61..LHD DEALER OPTION |
1 | ||
| 88471-95401 |
YY52,61..LHD MAKER OPTION |
1 | ||
| 88471-95010 |
LY61..LHD |
1 | ||
| 88471-20050 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95012 |
LY61..LHD |
1 | ||
| 88472-25050 |
LY61..LHD |
1 | ||
| 88472-25030 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
YY52,61..LHD 400G |
2 | ||
| 90986-02001 |
LY61..LHD 400G |
2 | ||
| 90986-02004 |
YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST 250G |
2 | ||
| 90986-02008 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST 200G |
2 | ||
| 90986-02004 |
YY52,61..LHD 250G |
2 | ||
| 90986-02007 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST 250G |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95043 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88711-95012 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88711-25050 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88711-25060 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-25060 |
LY61..LHD |
1 | ||
| 88712-95032 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88712-95034 |
LY61..LHD |
1 | ||
| 88712-95015 |
LY60,YY52,61..LHD |
1 | ||
| 88712-25040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-25070 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88712-95035 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88712-25080 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88712-95018 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95017 |
YY52,61..LHD |
1 | ||
| 88721-95013 |
LY60,YY52,61..LHD |
1 | ||
| 88721-95016 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88721-25030 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88721-25020 |
YY52,61..LHD |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-95012 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88715-25070 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88715-25060 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-25060 |
LY61..LHD |
1 | ||
| 88716-95023 |
LY61..LHD |
1 | ||
| 88716-25040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-25100 |
YY52,61..LHD |
1 | ||
| 88716-95024 |
LY61..LHD |
1 | ||
| 88716-25080 |
LY61..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-25070 |
YY52,61..LHD |
1 | ||
| 88717-95012 |
LY60,YY52,61..LHD |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95016 |
LY61..LHD |
1 | ||
| 88717-95013 |
LY60,YY52,61..LHD |
1 | ||
| 88717-25080 |
YY52,61..LHD |
1 | ||
| 88717-25100 |
LY61..LHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| Common parts | ||||
| 88375-30280 | ||||
| 88375-30290 | ||||
| 88688-95013 | ||||
| 88688-95018 | ||||
| 88688-95019 | ||||
| 88718-1A080 | ||||
| 88718-22170 | ||||
| 88718-95015 | ||||
| 88718-95023 | ||||
| 88718-95419 | ||||
| 88718-95420 | ||||
| 90091-20604 | ||||
| 90091-20812 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-32073 | ||||
| 90119-08102 | ||||
| 90179-08123 | ||||
| 91651-40625 | ||||
| 91651-60835 | ||||
| 93385-15016 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
| 93385-18035 | ||||

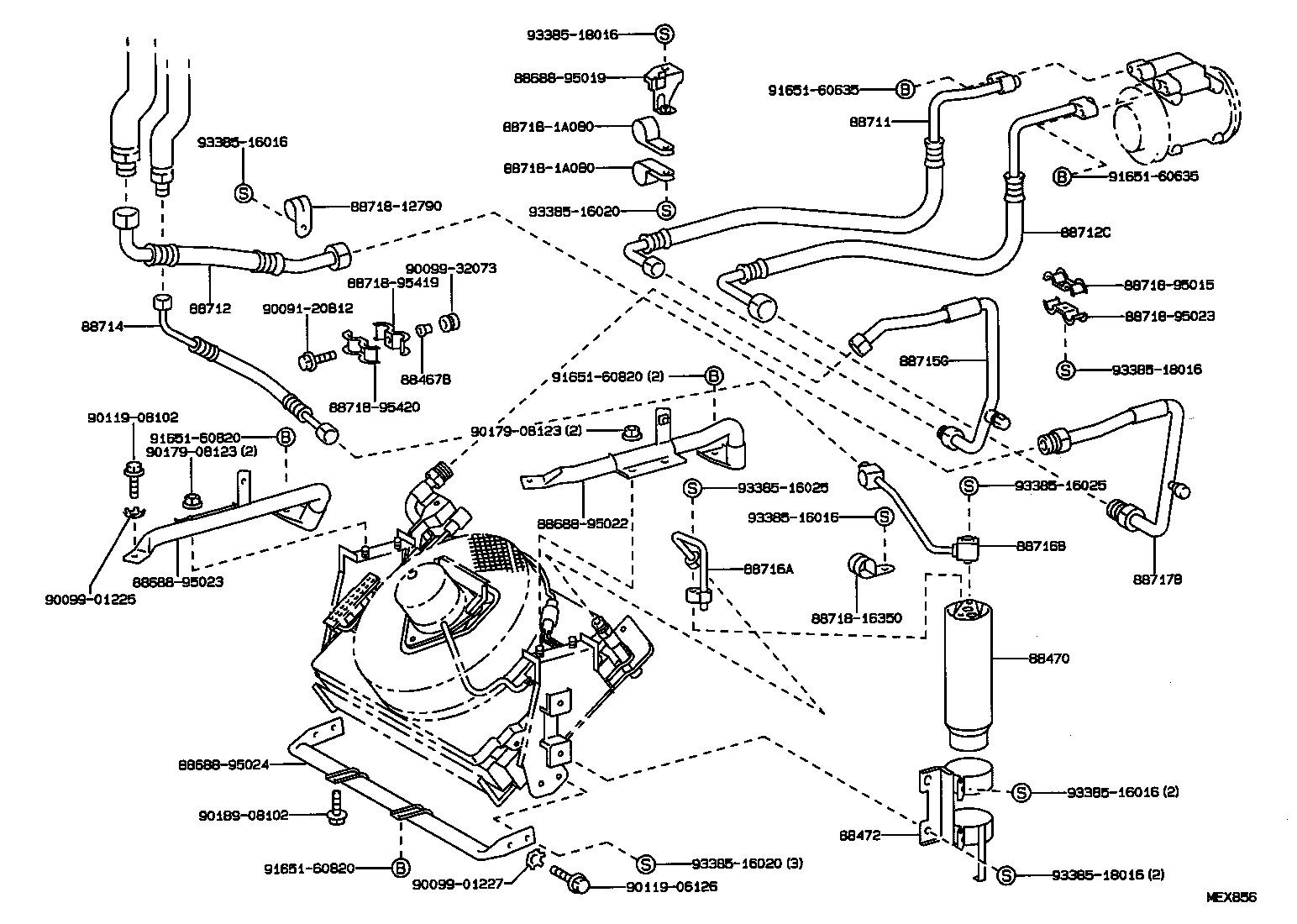

ILLUST NO. 1 OF 3(9309- )LY61..LHD
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-22010 |
YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST |
1 | ||
| 88467-22010 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95700 |
YY52,61..LHD DEALER OPTION |
1 | ||
| 88471-95401 |
YY52,61..LHD MAKER OPTION |
1 | ||
| 88471-95010 |
LY61..LHD |
1 | ||
| 88471-20050 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95012 |
LY61..LHD |
1 | ||
| 88472-25050 |
LY61..LHD |
1 | ||
| 88472-25030 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95043 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88711-95012 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88711-25050 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88711-25060 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-25060 |
LY61..LHD |
1 | ||
| 88712-95032 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88712-95034 |
LY61..LHD |
1 | ||
| 88712-95015 |
LY60,YY52,61..LHD |
1 | ||
| 88712-25040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-25070 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88712-95035 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88712-25080 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88712-95018 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95017 |
YY52,61..LHD |
1 | ||
| 88721-95013 |
LY60,YY52,61..LHD |
1 | ||
| 88721-95016 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88721-25030 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88721-25020 |
YY52,61..LHD |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-95012 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88715-25070 |
LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88715-25060 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-25060 |
LY61..LHD |
1 | ||
| 88716-95023 |
LY61..LHD |
1 | ||
| 88716-25040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-25100 |
YY52,61..LHD |
1 | ||
| 88716-95024 |
LY61..LHD |
1 | ||
| 88716-25080 |
LY61..LHD |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95016 |
LY61..LHD |
1 | ||
| 88717-95013 |
LY60,YY52,61..LHD |
1 | ||
| 88717-25080 |
YY52,61..LHD |
1 | ||
| 88717-25100 |
LY61..LHD |
1 | ||
| Common parts | ||||
| 88688-95019 | ||||
| 88688-95022 | ||||
| 88688-95023 | ||||
| 88688-95024 | ||||
| 88718-12790 | ||||
| 88718-16350 | ||||
| 88718-1A080 | ||||
| 88718-95015 | ||||
| 88718-95023 | ||||
| 88718-95419 | ||||
| 88718-95420 | ||||
| 90091-20812 | ||||
| 90099-01225 | ||||
| 90099-01227 | ||||
| 90099-32073 | ||||
| 90119-06126 | ||||
| 90119-08102 | ||||
| 90179-08123 | ||||
| 90189-08102 | ||||
| 91651-60635 | ||||
| 91651-60820 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-16025 | ||||
| 93385-18016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
