LY61L-MDB (1988)
Toyota Dyna150

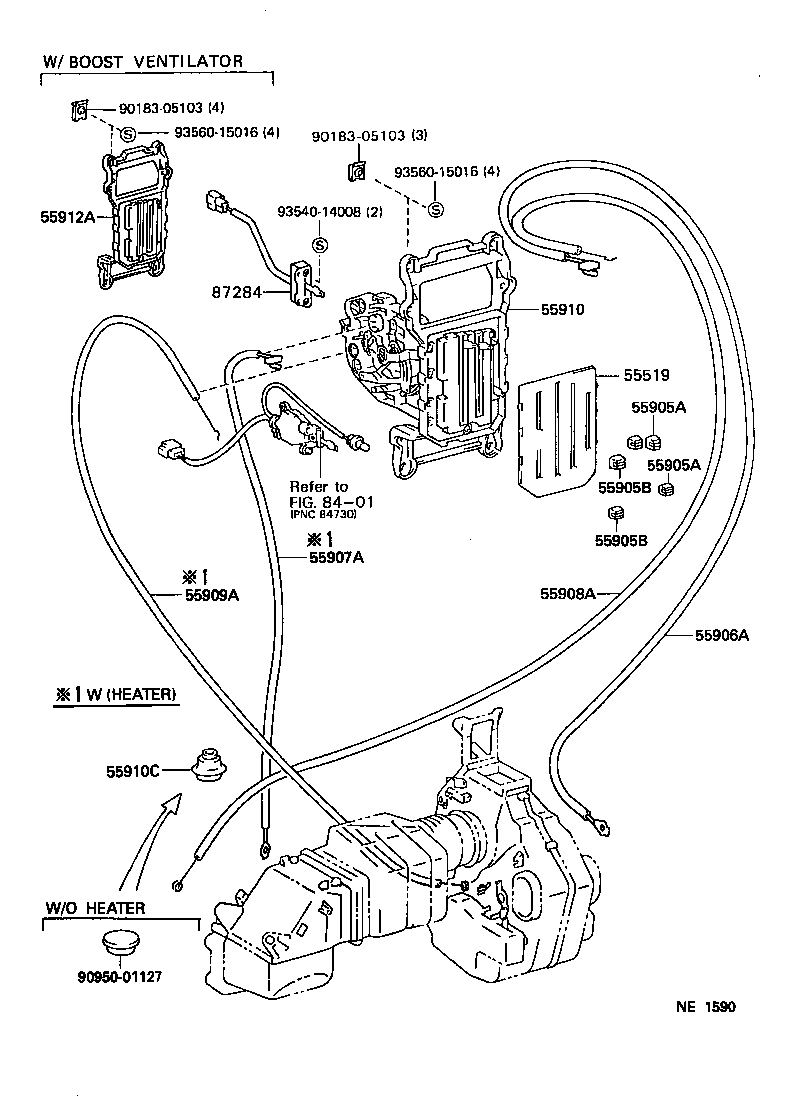

ILLUST NO. 1 OF 2(8708-9110)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-95404 |
LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN W(FOOT VENTILATOR) |
1 | ||
| 55519-95403 |
LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN W(BOOST VENTILATOR) |
1 | ||
| 55519-95406 |
LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU |
1 | ||
| 55519-95403 |
YY52,61..LHD;LY61..ST..GEN W(BOOST VENTILATOR) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
LY60,YY52,61..GEN;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN |
1 | ||
| 55905-10110 |
LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN |
2 | ||
| 55905-10110 |
YY61..LHD;LY6#,YY52..ST |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
LY60,YY52,61..GEN;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN |
1 | ||
| 55905-10110 |
LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN |
2 | ||
| 55905-10110 |
YY61..LHD;LY6#,YY52..ST |
3 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-95707 |
YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST |
1 | ||
| 55905-95707 |
YY52,61..LHD;LY6#..ST..GEN |
2 | ||
| 55905-95707 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-95707 |
YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST |
1 | ||
| 55905-95707 |
YY52,61..LHD;LY6#..ST..GEN |
2 | ||
| 55905-95707 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95406 |
LY6#,YY52,61..LHD |
1 | ||
| 55906-36050 |
LY61,YY52,61..LHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95406 |
LY6#,YY52,61..LHD |
1 | ||
| 55907-36030 |
LY61,YY52,61..LHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95404 |
YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(FOOT VENTILATOR) |
1 | ||
| 55906-36090 |
LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(FOOT VENTILATOR) |
1 | ||
| 55908-95402 |
LY61,YY61..T2,T3;LY61,YY52,61..TW..ST |
1 | ||
| 55908-95402 |
LY6#,YY52,61..LHD W(BOOST VENTILATOR) OR W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU) |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95406 |
LY6#,YY52,61..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95410 |
YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-36100 |
YY52,61..LHD;LY61..ST..GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-36100 |
LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-95409 |
LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU |
1 | ||
| 55910-36090 |
LY61,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU |
1 | ||
| 55910-36110 |
LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910-95411 |
YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-24215 |
LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DUTY TYPE) |
1 | ||
| 90950-01127 |
YY52,61..LHD;LY6#..ST..GEN W(BOOST VENTILATOR) |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-95404 |
LY61,YY52,61..GEN |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95400 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88032-95400 |
YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 90950-01127 | ||||
| 93540-14008 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

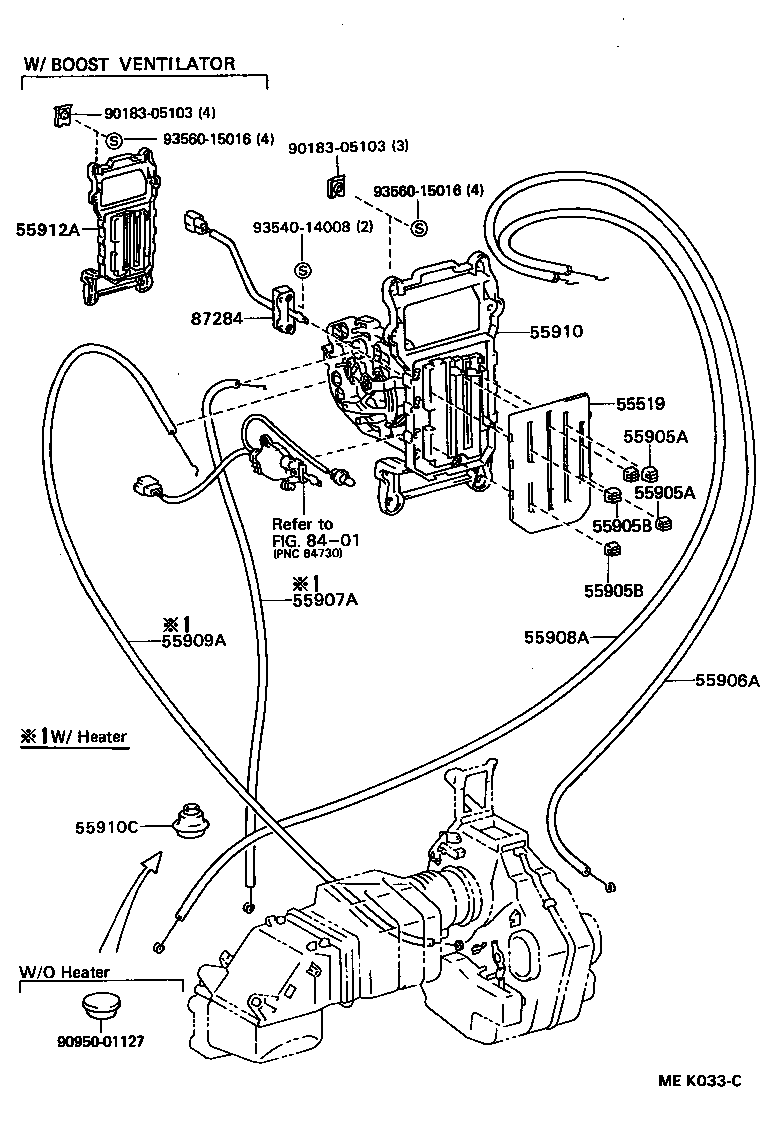

ILLUST NO. 1 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-95404 |
LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN W(FOOT VENTILATOR) |
1 | ||
| 55519-95403 |
LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN W(BOOST VENTILATOR) |
1 | ||
| 55519-95406 |
LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU |
1 | ||
| 55519-95403 |
YY52,61..LHD;LY61..ST..GEN W(BOOST VENTILATOR) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
LY60,YY52,61..GEN;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN |
1 | ||
| 55905-10110 |
LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN |
2 | ||
| 55905-10110 |
YY61..LHD;LY6#,YY52..ST |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
LY60,YY52,61..GEN;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN |
1 | ||
| 55905-10110 |
LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN |
2 | ||
| 55905-10110 |
YY61..LHD;LY6#,YY52..ST |
3 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-95707 |
YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST |
1 | ||
| 55905-95707 |
YY52,61..LHD;LY6#..ST..GEN |
2 | ||
| 55905-95707 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-95707 |
YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST |
1 | ||
| 55905-95707 |
YY52,61..LHD;LY6#..ST..GEN |
2 | ||
| 55905-95707 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95406 |
LY6#,YY52,61..LHD |
1 | ||
| 55906-36050 |
LY61,YY52,61..LHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95406 |
LY6#,YY52,61..LHD |
1 | ||
| 55907-36030 |
LY61,YY52,61..LHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95404 |
YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(FOOT VENTILATOR) |
1 | ||
| 55906-36090 |
LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(FOOT VENTILATOR) |
1 | ||
| 55908-95402 |
LY61,YY61..T2,T3;LY61,YY52,61..TW..ST |
1 | ||
| 55908-95402 |
LY6#,YY52,61..LHD W(BOOST VENTILATOR) OR W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU) |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95406 |
LY6#,YY52,61..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95410 |
YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-36100 |
YY52,61..LHD;LY61..ST..GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-36100 |
LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(BOOST VENTILATOR) |
1 | ||
| 55910-95409 |
LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU |
1 | ||
| 55910-36090 |
LY61,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU |
1 | ||
| 55910-36110 |
LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910-95411 |
YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(FOOT VENTILATOR) |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-24215 |
LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DUTY TYPE) |
1 | ||
| 90950-01127 |
YY52,61..LHD;LY6#..ST..GEN W(BOOST VENTILATOR) |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-95404 |
LY61,YY52,61..GEN |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95400 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88032-95400 |
YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 90950-01127 | ||||
| 93540-14008 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
