LY60R-MDPQ (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )TW

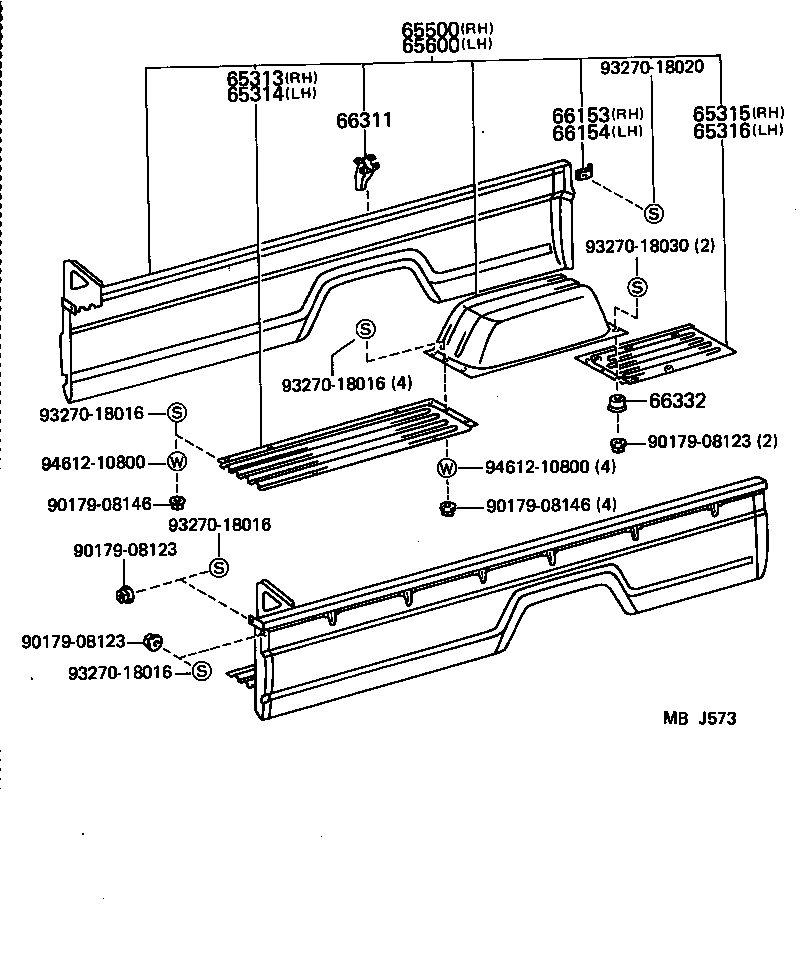

Click highlighted areas on diagram

diagram 65313 65314 65315 65316 65500 65600 66153 66154 66311 66332 9017908123 9017908123 9017908123 9017908146 9017908146 9327018016 9327018016 9327018016 9327018016 9327018020 9327018030 9461210800 9461210800
Part # Description Qty Price
65313 - PANEL, FLOOR FRONT CORNER, RH
65313-95405

LY60,YY6#..TW

 1
65314 - PANEL, FLOOR FRONT CORNER, LH
65314-95404

LY60,YY6#..TW

 1
65315 - PANEL, FLOOR REAR CORNER, RH
65315-95405

LY60,YY5#,6#..TW

 1
65316 - PANEL, FLOOR REAR CORNER, LH
65316-95405

LY60,YY5#,6#..TW

 1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-95067

LY60,YY6#..TW

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95069

LY60,YY6#..TW

 1
66153 - LATCH, TAIL GATE FEMALE, RH
66153-95012

LY60,YY5#,6#..TW

 1
66154 - LATCH, TAIL GATE FEMALE, LH
66153-95012

LY60,YY5#,6#..TW

 1
66311 - HOOK, ROPE
66311-95010

LY60,YY5#,6#..TW

 10
66332 - CUSHION, RUBBER
66332-95A00

LY60,YY5#,6#..TW

 4
Common parts
90179-08123
90179-08146
93270-18016
93270-18020
93270-18030
94612-10800
