LY60R-MDLT (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

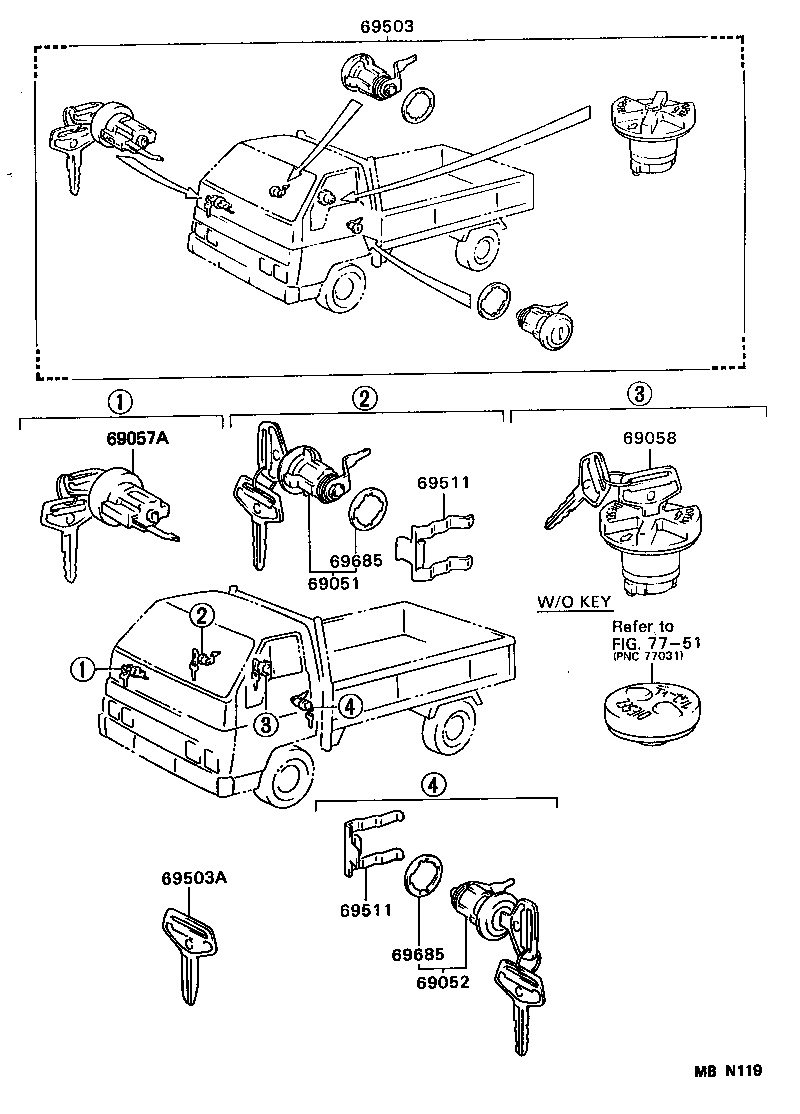

Click highlighted areas on diagram

diagram 69051 69052 69057A 69058 69503 69503A 69511 69511 69685 69685 7751
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95403

LY6#,YY52,61

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95403

LY6#,YY52,61

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95413

LY6#..GEN

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-95406

LY6#

 1
69503 - CYLINDER SET, LOCK
69503-95459

LY60..GEN;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

W(FUEL TANK CAP KEY)

 1
69503-95458

LY60..GEN;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

 1
69503A - KEY, BLANK
90999-00066

LY61..ARL;LY60,YY52,61

MASTER KEY

 1
90999-00129

LY6#,YY52,61

MASTER KEY,W(*68)

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

LY6#,YY52,61

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

LY6#,YY52,61

 2
69685 - PAD, LOCK CYLINDER
69513-32010

LY6#,YY52,61

 2
69685 - PAD, LOCK CYLINDER
69513-32010

LY6#,YY52,61

 2
Linked diagrams
7751
