LY60R-MDBQ3 (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

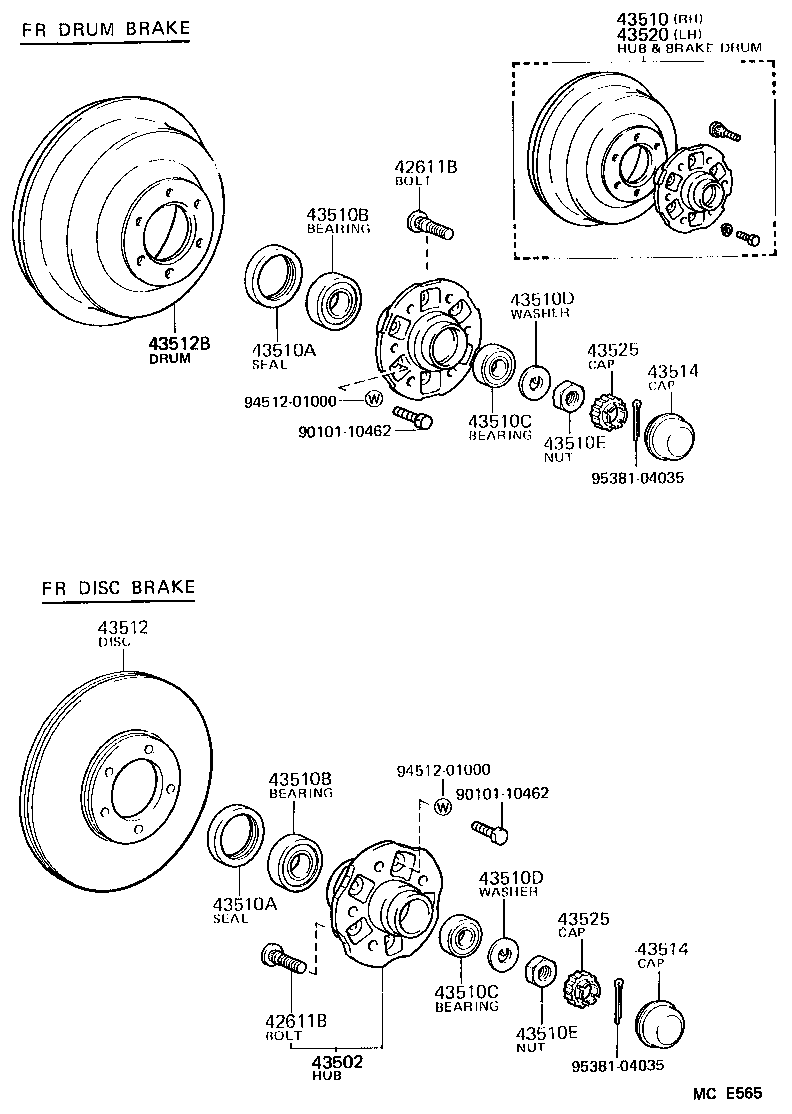

Click highlighted areas on diagram

diagram 42611B 42611B 43502 43510 43510A 43510A 43510B 43510B 43510C 43510C 43510D 43510D 43510E 43510E 43512 43512B 43514 43514 43520 43525 43525 9010110462 9010110462 9451201000 9451201000 9538104035 9538104035
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02058

LY6#,YY52,61..ST

 1
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02058

LY6#,YY52,61..ST

 1
43502 - HUB SUB-ASSY, FRONT AXLE
43502-25020

LY6#,YY52,61..ST

 1
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-50003

LY6#,YY52,61

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-50003

LY6#,YY52,61

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90366-35004

LY6#,YY52,61

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90366-35004

LY6#,YY52,61

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-22007

LY6#,YY52,61

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-22007

LY6#,YY52,61

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-23004

LY6#,YY52,61

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-23004

LY6#,YY52,61

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-22003

LY6#,YY52,61

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-22003

LY6#,YY52,61

 2
43512 - DISC, FRONT
43512-25020

LY6#,YY52,61

 2
43514 - CAP, FRONT HUB GREASE
43514-25010

LY6#,YY52,61

 2
43514 - CAP, FRONT HUB GREASE
43514-25010

LY6#,YY52,61

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-25010

LY6#,YY52,61

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-25010

LY6#,YY52,61

 2
Common parts
90101-10462
94512-01000
95381-04035
