LY60R-MDB3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )YY5#,6#

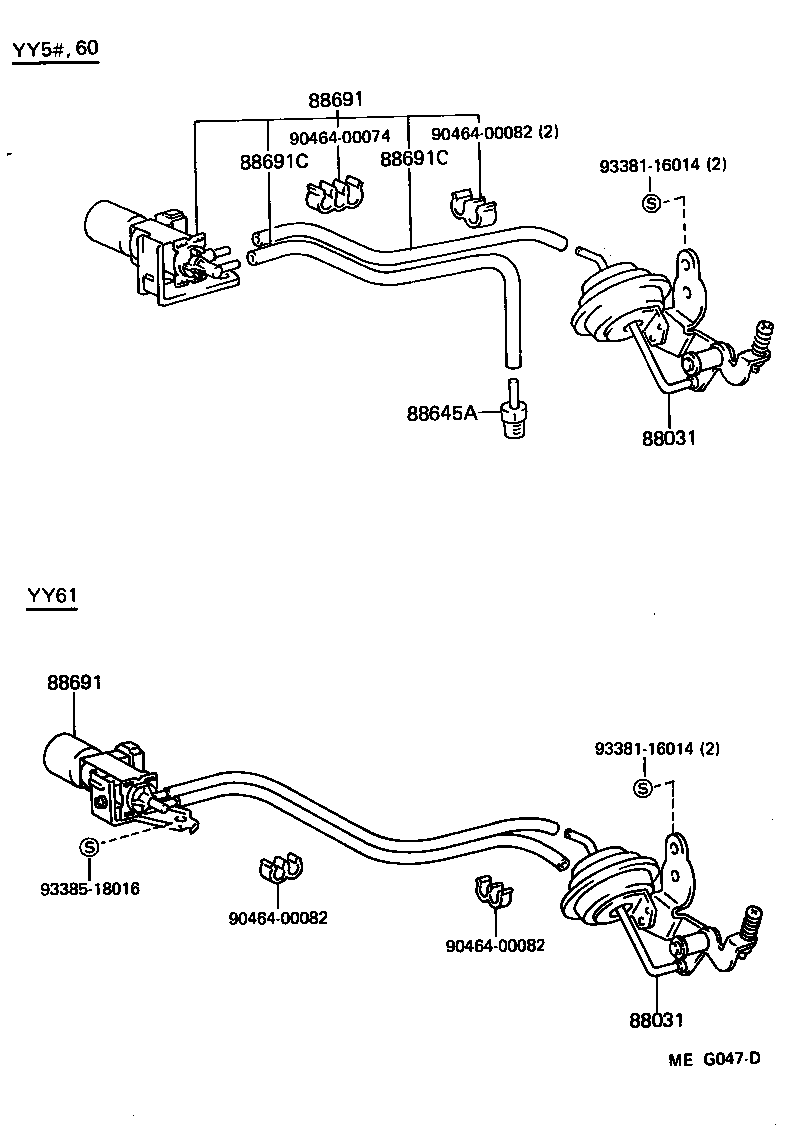

Click highlighted areas on diagram

diagram 88031 88031 88645A 88691 88691 88691C 88691C 9046400074 9046400082 9046400082 9046400082 9338116014 9338116014 9338518016
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-30060

LY60..ARL,GEN

DEALER OPTION

 1
88031-28010

YY5#,60

 1
88031-35040

LY60..ST

MAKER OPTION

 1
88031 - ACTUATOR SET, IDLE-UP
88031-30060

LY60..ARL,GEN

DEALER OPTION

 1
88031-28010

YY5#,60

 1
88031-35040

LY60..ST

MAKER OPTION

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51093

YY5#,6#..GEN

 1
90405-05127

LY60..ARL,GEN

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95022

YY5#,60

MAKER OPTION

 1
88690-95024

YY5#,60

DEALER OPTION

 1
88690-95023

LY60..RHD

DEALER OPTION

 1
88690-95020

LY60..ST

MAKER OPTION

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95022

YY5#,60

MAKER OPTION

 1
88690-95024

YY5#,60

DEALER OPTION

 1
88690-95023

LY60..RHD

DEALER OPTION

 1
88690-95020

LY60..ST

MAKER OPTION

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YY5#,60

*H,L=280,MARK=#0,MAKER OPTION

 1
95411-19930

YY5#,60

*H,L=240,MARK=#*,MAKER OPTION

 1
95411-10095

LY60..ST

*H,L=540,MARK=#0,MAKER OPTION

 1
95411-19960

LY60..ST

*H,L=480,MARK=#*,MAKER OPTION

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YY5#,60

*H,L=280,MARK=#0,MAKER OPTION

 1
95411-19930

YY5#,60

*H,L=240,MARK=#*,MAKER OPTION

 1
95411-10095

LY60..ST

*H,L=540,MARK=#0,MAKER OPTION

 1
95411-19960

LY60..ST

*H,L=480,MARK=#*,MAKER OPTION

 1
Common parts
90464-00074
90464-00082
93381-16014
93385-18016

(8508- )LY60

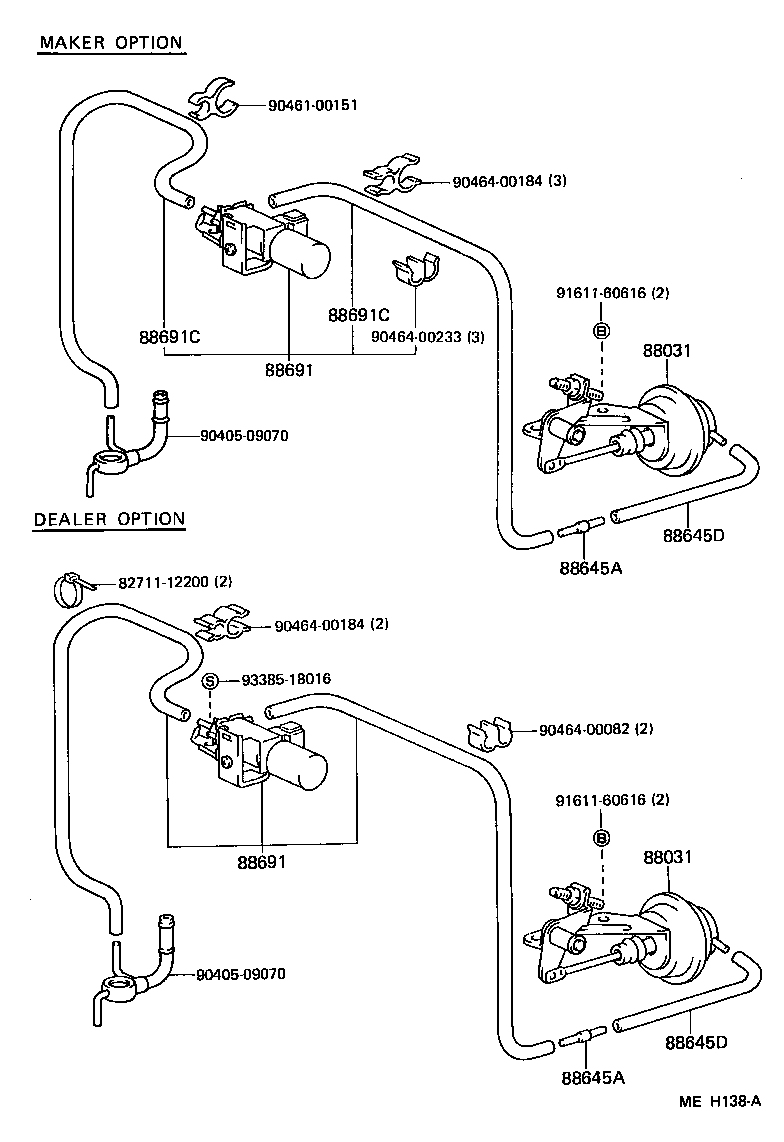

Click highlighted areas on diagram

diagram 8271112200 88031 88031 88645A 88645A 88645D 88645D 88691 88691 88691C 88691C 9040509070 9040509070 9046100151 9046400082 9046400184 9046400184 9046400233 9161160616 9161160616 9338518016
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-30060

LY60..ARL,GEN

DEALER OPTION

 1
88031-28010

YY5#,60

 1
88031-35040

LY60..ST

MAKER OPTION

 1
88031 - ACTUATOR SET, IDLE-UP
88031-30060

LY60..ARL,GEN

DEALER OPTION

 1
88031-28010

YY5#,60

 1
88031-35040

LY60..ST

MAKER OPTION

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51093

YY5#,6#..GEN

 1
90405-05127

LY60..ARL,GEN

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51093

YY5#,6#..GEN

 1
90405-05127

LY60..ARL,GEN

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19930

LY60..RHD

*H,L=160,MARK=#*,DEALER OPITON

 1
95411-19930

LY60..ST

*H,L=150,MARK=#*,MAKER OPTION

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19930

LY60..RHD

*H,L=160,MARK=#*,DEALER OPITON

 1
95411-19930

LY60..ST

*H,L=150,MARK=#*,MAKER OPTION

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95022

YY5#,60

MAKER OPTION

 1
88690-95024

YY5#,60

DEALER OPTION

 1
88690-95023

LY60..RHD

DEALER OPTION

 1
88690-95020

LY60..ST

MAKER OPTION

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95022

YY5#,60

MAKER OPTION

 1
88690-95024

YY5#,60

DEALER OPTION

 1
88690-95023

LY60..RHD

DEALER OPTION

 1
88690-95020

LY60..ST

MAKER OPTION

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YY5#,60

*H,L=280,MARK=#0,MAKER OPTION

 1
95411-19930

YY5#,60

*H,L=240,MARK=#*,MAKER OPTION

 1
95411-10095

LY60..ST

*H,L=540,MARK=#0,MAKER OPTION

 1
95411-19960

LY60..ST

*H,L=480,MARK=#*,MAKER OPTION

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YY5#,60

*H,L=280,MARK=#0,MAKER OPTION

 1
95411-19930

YY5#,60

*H,L=240,MARK=#*,MAKER OPTION

 1
95411-10095

LY60..ST

*H,L=540,MARK=#0,MAKER OPTION

 1
95411-19960

LY60..ST

*H,L=480,MARK=#*,MAKER OPTION

 1
Common parts
82711-12200
90405-09070
90461-00151
90464-00082
90464-00184
90464-00233
91611-60616
93385-18016
