LY60R-MDB3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )2L

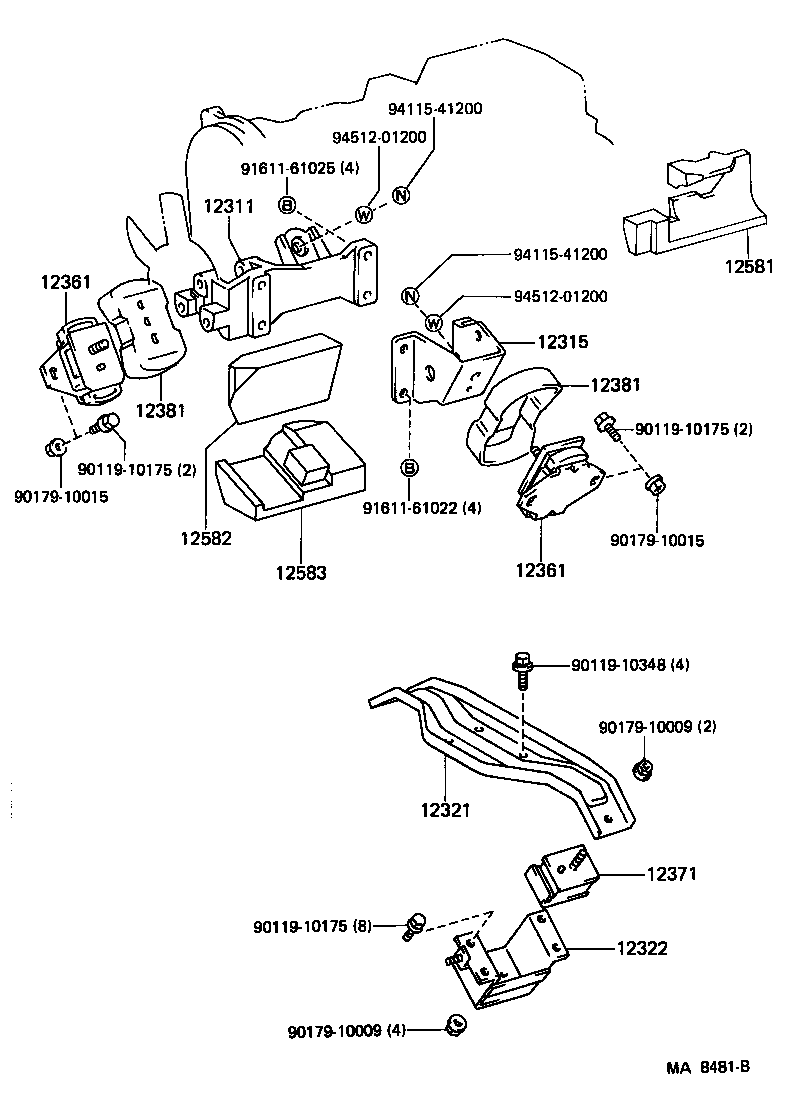

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12361 12361 12371 12381 12381 12581 12582 12583 9011910175 9011910175 9011910175 9011910348 9017910009 9017910009 9017910015 9017910015 9161161022 9161161025 9411541200 9411541200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54090

2L..LY60

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-54020

2L..LY60

 1
12312-54021

2L..LY60

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-73010

2L..LY60

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-71070

2L..LY60

RH

 2
12326-71010

2L..LY60

LH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54120

2L..LY60

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54120

2L..LY60

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54070

2L..LY60

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-54020

2L..LY60

 2
12381-54040

2L..LY60

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54020

2L..LY60

 2
12381-54040

2L..LY60

 2
Common parts
90119-10175
90119-10348
90179-10009
90179-10015
91611-61022
91611-61025
94115-41200
94512-01200
