LY60R-MDB3 (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

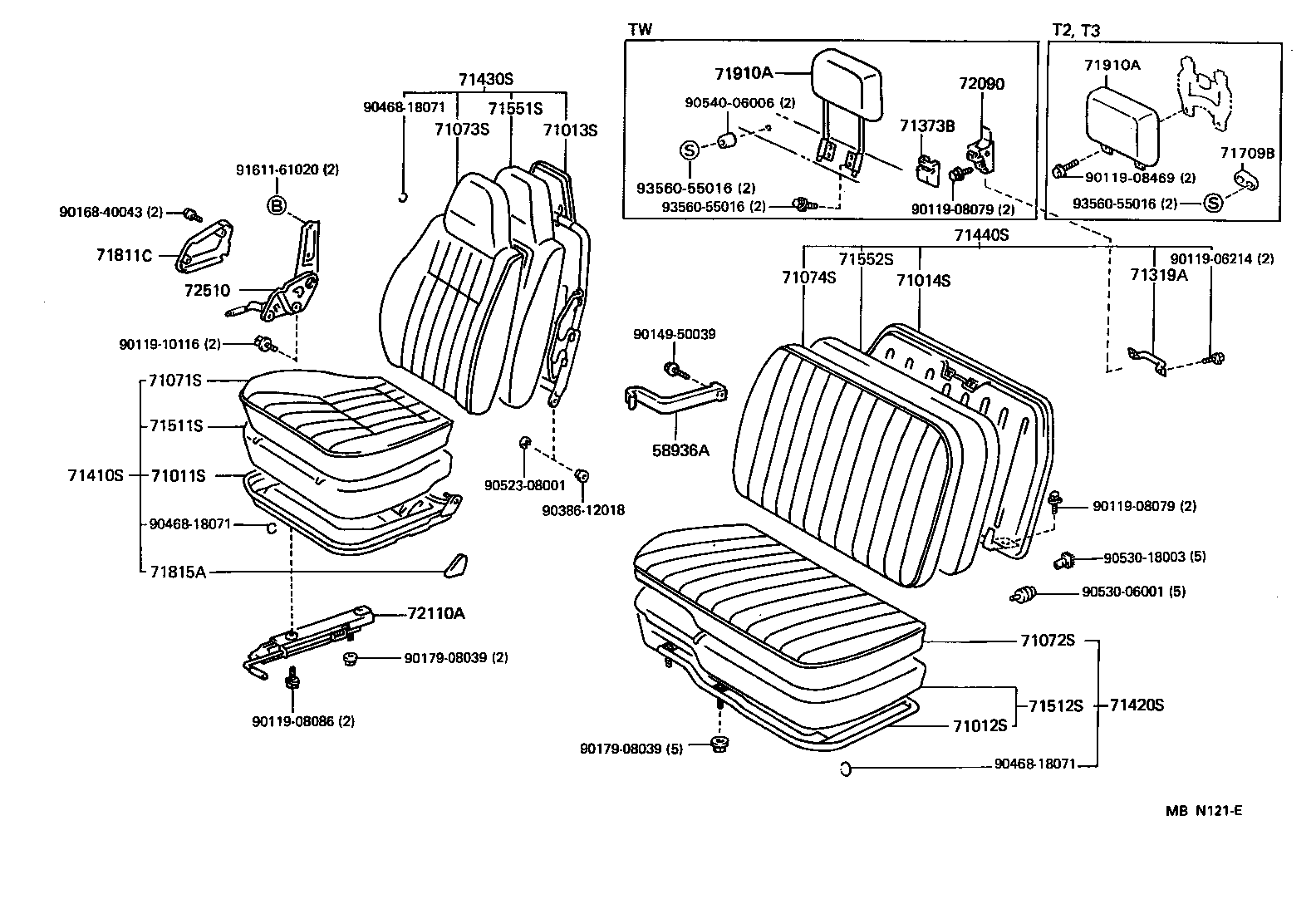

ILLUST NO. 1 OF 2(8708- )RHD

Click highlighted areas on diagram

diagram 58936A 71011S 71012S 71013S 71014S 71071S 71072S 71073S 71074S 71319A 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71709B 71811C 71815A 71910A 71910A 72090 72110A 72510 9011906214 9011908079 9011908079 9011908086 9011908469 9011910116 9014950039 9016840043 9017908039 9017908039 9038612018 9046818071 9046818071 9046818071 9052308001 9053006001 9053018003 9054006006 9161161020 9356055016 9356055016 9356055016
Part # Description Qty Price
58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-9570006

LY6#,YY52,61

DARK BROWN,TRIM4#

 1
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95414

LY6#,YY61..RHD

 1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-95414

LY60,YY61..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
71013-95413

LY60,YY61..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)

W(HEADREST)

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-9542001

LY6#,YY61..RHD

BLACK,TRIM4#

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-95B0106

LY6#,YY61..RHD..(T2,T3)..GEN

DARK BROWN,TRIM4#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-9548506

LY60,YY61..RHD..GEN

BROWN,TRIM4#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9548306

LY6#,YY61..RHD..(T2,T3)..GEN

W(HEADREST),BROWN,TRIM4#

 1
71073-9548606

LY6#,YY61..RHD..(T2,T3)..GEN

BROWN,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-95B4806

LY6#,YY61..RHD..GEN

BROWN,TRIM4#

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95404

LY6#,YY52,61

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-9540006

LY6#,YY52,61

BROWN,TRIM4#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9545606

LY6#,YY61..RHD..(T2,T3)..GEN

***,BROWN,TRIM4#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-9547006

LY60,YY61..RHD..GEN

***,BROWN,TRIM4#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9547206

LY6#,YY61..RHD..(T2,T3)..GEN

***,BROWN,TRIM4#

 1
71430-9546706

LY6#,YY61..RHD..(T2,T3)..GEN

***,W(HEADREST),BROWN,TRIM4#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-95B1406

LY6#,YY61..RHD..(T2,T3)..GEN

***,BROWN,TRIM4#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95400

LY6#,YY61..RHD..GEN

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-95A05

LY6#,YY61..RHD..GEN

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95405

LY60,YY61..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)

 1
71551-95404

LY60,YY61..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)

W(HEADREST)

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-95403

LY6#,YY61..RHD

 1
71709B - CUSHION SUB-ASSY, SEAT SUPPORT
71709-95400

LY6#,YY61..RHD..(T2,T3)

 2
71811C - COVER, RECLINING ADJUSTER, RH
71811-95J0106

LY6#,YY61..RHD

BROWN,TRIM4#

 1
71815A - COVER, FRONT SEAT CUSHION HINGE, RH
71815-95J0016

LY6#..RHD;YY61..RHD..(T2,T3)

BROWN,TRIM4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-9540006

LY60,YY61..RHD..(T2,T3)

BROWN,TRIM4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-9540006

LY60,YY61..RHD..(T2,T3)

BROWN,TRIM4#

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-9540006

LY6#,YY52,61

BROWN,TRIM4#

 1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95408

LY6#,YY61..RHD

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-95J0006

LY6#,YY61..RHD

BROWN,TRIM4#

 1
Common parts
90119-06214
90119-08079
90119-08086
90119-08469
90119-10116
90149-50039
90168-40043
90179-08039
90386-12018
90468-18071
90523-08001
90530-06001
90530-18003
90540-06006
91611-61020
93560-55016

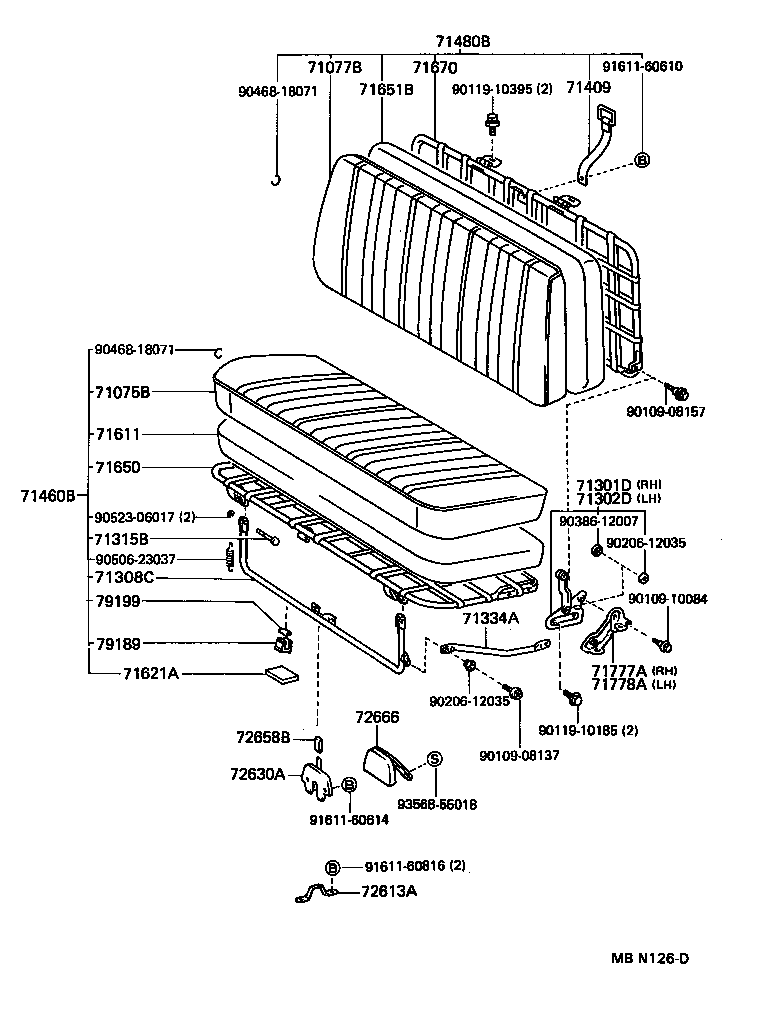

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 71075B 71077B 71301D 71302D 71308C 71315B 71334A 71409 71460B 71480B 71611 71621A 71650 71651B 71670 71777A 71778A 72613A 72630A 72658B 72666 79189 79199 9010908137 9010908157 9010910084 9011910185 9011910395 9020612035 9020612035 9038612007 9046818071 9046818071 9050623037 9052306017 9161160610 9161160614 9161160816 9356855018
Part # Description Qty Price
Common parts
90109-08137
90109-08157
90109-10084
90119-10185
90119-10395
90206-12035
90386-12007
90468-18071
90506-23037
90523-06017
91611-60610
91611-60614
91611-60816
93568-55018
