LY60R-MDB3 (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

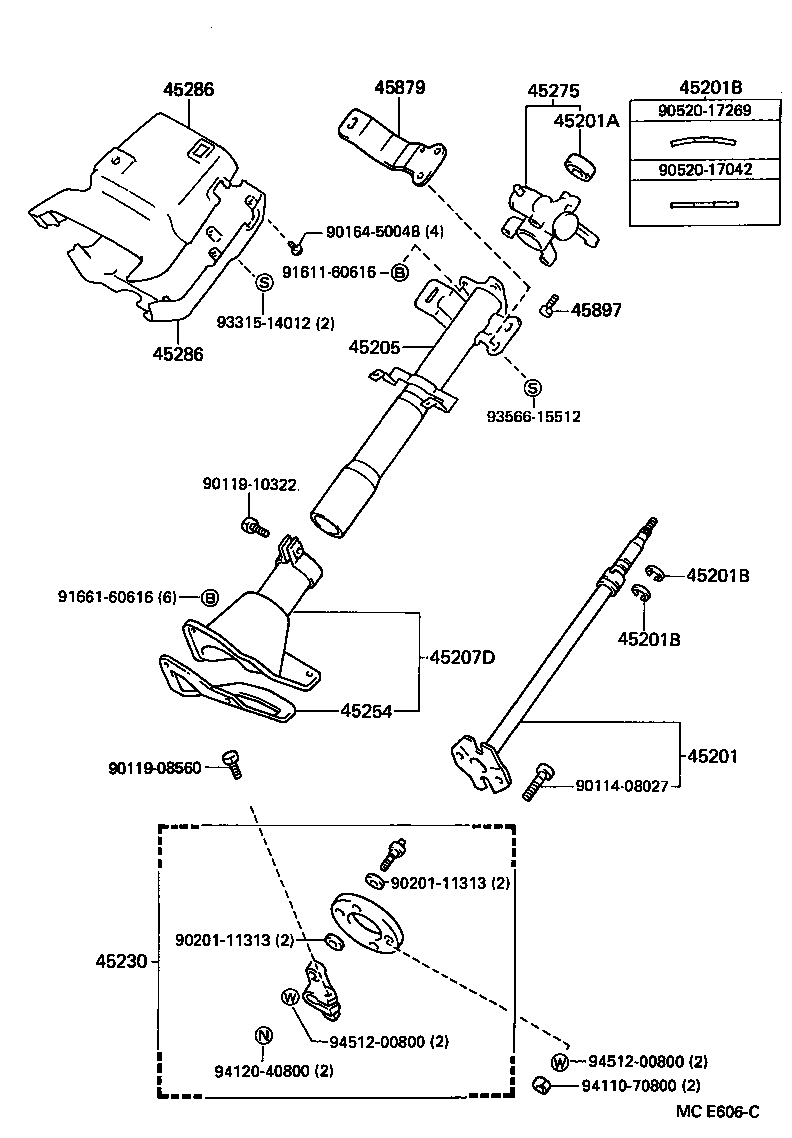

Click highlighted areas on diagram

diagram 45201 45201A 45201B 45201B 45201B 45205 45207D 45230 45254 45275 45286 45286 45879 45897 9011408027 9011908560 9011910322 9016450048 9020111313 9020111313 9052017042 9052017269 9161160616 9166160616 9331514012 9356615512 9411070800 9412040800 9451200800 9451200800
Part # Description Qty Price
45201 - SHAFT SUB-ASSY, STEERING MAIN
45201-25090

LY6#,YY52,61

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

LY6#,YY52,61

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

LY6#,YY52,61

T=1.20,UPR

 1
90520-17042

LY6#,YY52,61

T=1.20,LWR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

LY6#,YY52,61

T=1.20,UPR

 1
90520-17042

LY6#,YY52,61

T=1.20,LWR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

LY6#,YY52,61

T=1.20,UPR

 1
90520-17042

LY6#,YY52,61

T=1.20,LWR

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-25121

LY6#,YY52,61

 1
45207D - COVER SUB-ASSY, MAIN SHAFT JOINT
45207-25021

LY6#,YY61..RHD

 1
45230 - COUPLING ASSY, FLEXIBLE
45230-25011

LY6#,YY52,61

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-36090

LY6#,YY61..RHD

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45307-36150

LY6#,YY52,61

 1
45286 - COVER, STEERING COLUMN
45287-3633006

LY6#,YY61..RHD

BROWN,TRIM4#,LWR

 1
45286-3677006

LY6#,YY61..RHD

BROWN,TRIM4#,UPR

 1
45286 - COVER, STEERING COLUMN
45287-3633006

LY6#,YY61..RHD

BROWN,TRIM4#,LWR

 1
45286-3677006

LY6#,YY61..RHD

BROWN,TRIM4#,UPR

 1
45879 - BRACKET, STEERING COLUMN UPPER SUPPORT, NO.2
45879-25011

LY6#,YY52,61

 1
Common parts
90114-08027
90119-08560
90119-10322
90164-50048
90201-11313
90520-17042
90520-17269
91611-60616
91661-60616
93315-14012
93566-15512
94110-70800
94120-40800
94512-00800
