LY60R-MDB3 (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2L,3L

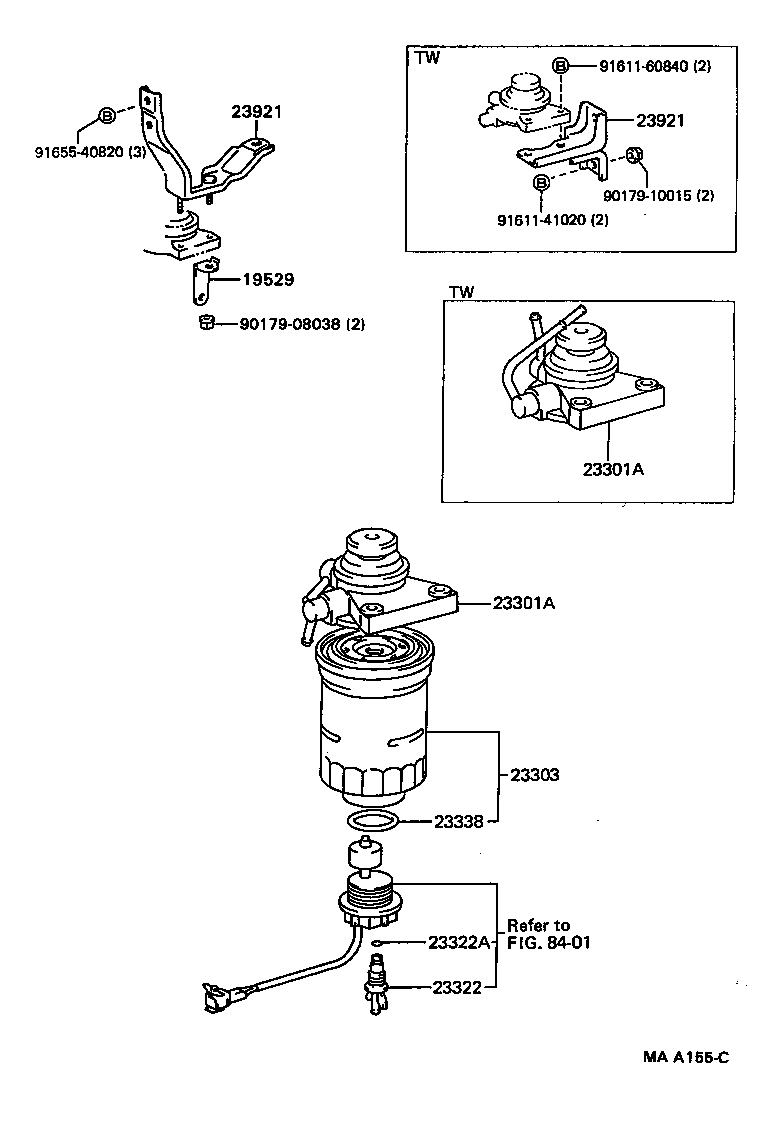

Click highlighted areas on diagram

diagram 19529 23301A 23301A 23303 23322 23322A 23338 23921 23921 8401 9017908038 9017910015 9161141020 9161160840 9165540820
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-54330

2L,3L..LY6#..T2,T3

 1
23301A - CAP ASSY, FUEL FILTER
23301-54330

2L,3L..LY6#..T2,T3

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

2L,3L..LY6#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

2L,3L..LY6#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

2L,3L..LY6#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

2L,3L..LY6#

 1
23921 - SUPPORT, FUEL FILTER
23921-54250

2L..LY60..T2,T3

 1
23921 - SUPPORT, FUEL FILTER
23921-54250

2L..LY60..T2,T3

 1
Common parts
90179-08038
90179-10015
91611-41020
91611-60840
91655-40820
Linked diagrams
8401
