LY60R-MDB3 (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8808)2L

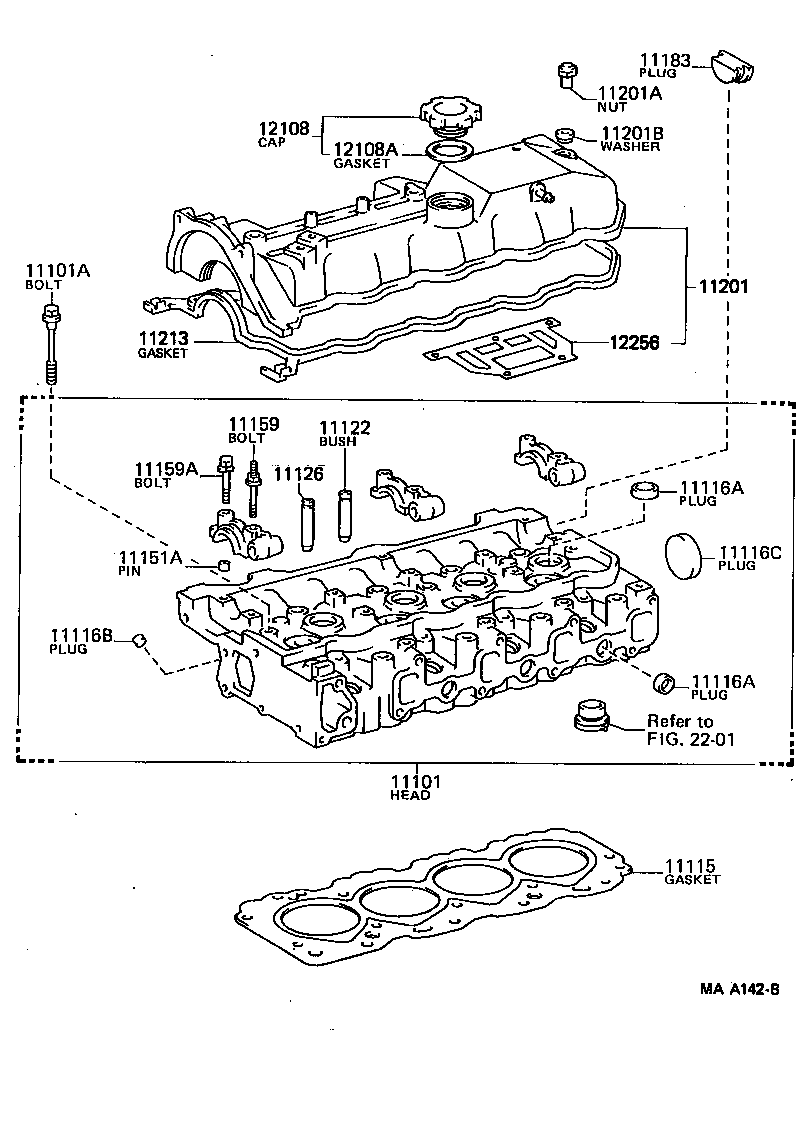

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116A 11116B 11116C 11122 11126 11151A 11159 11159A 11183 11201 11201A 11201B 11213 12108 12108A 12256 2201
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-54050

2L..LY60

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02090

2L..LY60

 18
90910-02060

2L..LY60

 18
11115 - GASKET, CYLINDER HEAD
11115-54020

2L..LY60

 1
11116A - PLUG, TIGHT, NO.1
96411-42500

2L..LY60

 7
11116A - PLUG, TIGHT, NO.1
96411-42500

2L..LY60

 7
11116B - PLUG, TIGHT, NO.2
96411-41200

2L..LY60

 4
11116C - PLUG, TIGHT, NO.3
96411-45000

2L..LY60

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-54011

2L..LY60

STD

 4
11123-54011

2L..LY60

O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-54011

2L..LY60

STD

 4
11123-54011

2L..LY60

O/S 0.05

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11001

2L..LY60

L=11,OD=11

 6
11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
90116-08137

2L..LY60

 3
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08191

2L..LY60

 3
11183 - PLUG, SEMICIRCULAR
11183-54011

2L..LY60

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-54080

2L..LY60

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08014

2L..LY60

 3
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-13001

2L..LY60

 3
11213 - GASKET, CYLINDER HEAD COVER
11213-54030

2L..LY60

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13030

2L..LY60

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

2L..LY60

 1
12256 - GASKET, VENTILATION BAFFLE
12256-54020

2L..LY60

 1
Linked diagrams
2201
