LY60R-MDB (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

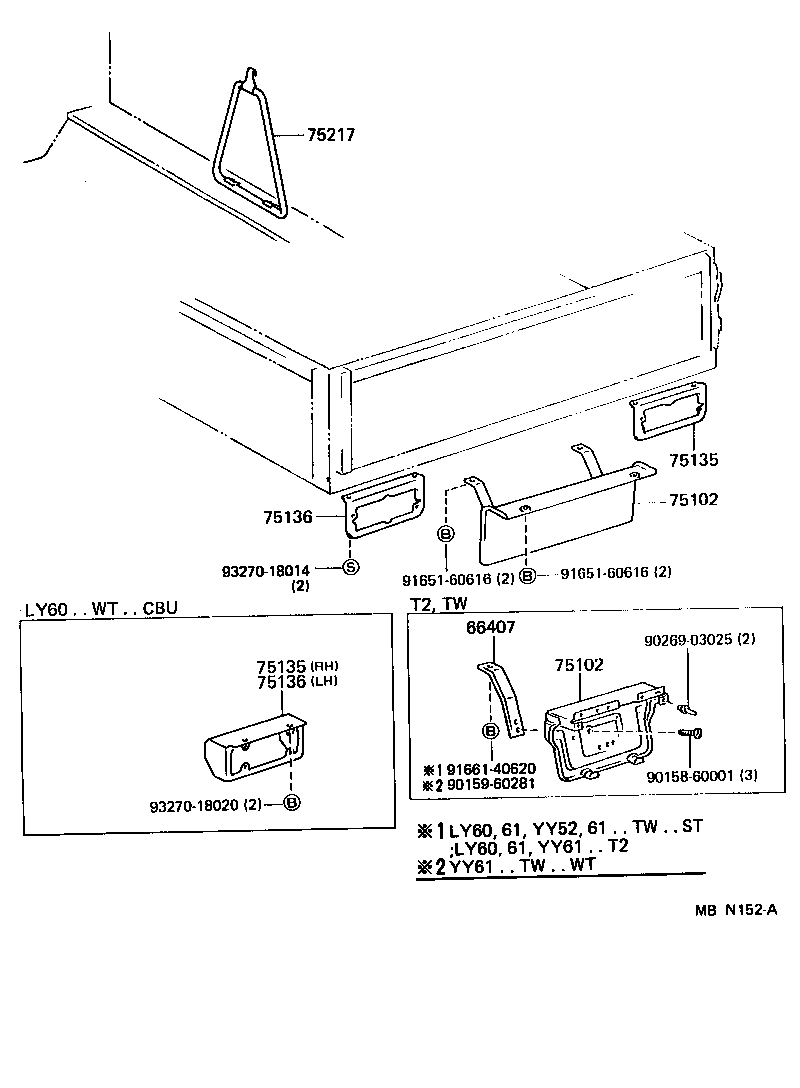

Click highlighted areas on diagram

diagram 66407 75102 75102 75135 75135 75136 75136 75217 9015860001 9015960281 9026903025 9165160616 9165160616 9166140620 9327018014 9327018020
Part # Description Qty Price
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-95023

LY6#,YY61..T3..CBU

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-95023

LY6#,YY61..T3..CBU

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95A02

LY6#,YY61..(T2,T3)..CBU

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95A02

LY6#,YY61..(T2,T3)..CBU

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95A02

LY6#,YY61..(T2,T3)..CBU

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95A02

LY6#,YY61..(T2,T3)..CBU

 1
75217 - BAND, TOOL BAG
58705-95A01

LY6#,YY52,61

 1
Common parts
90158-60001
90159-60281
90269-03025
91651-60616
91661-40620
93270-18014
93270-18020
