LY60R-MDB (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )T2,T3

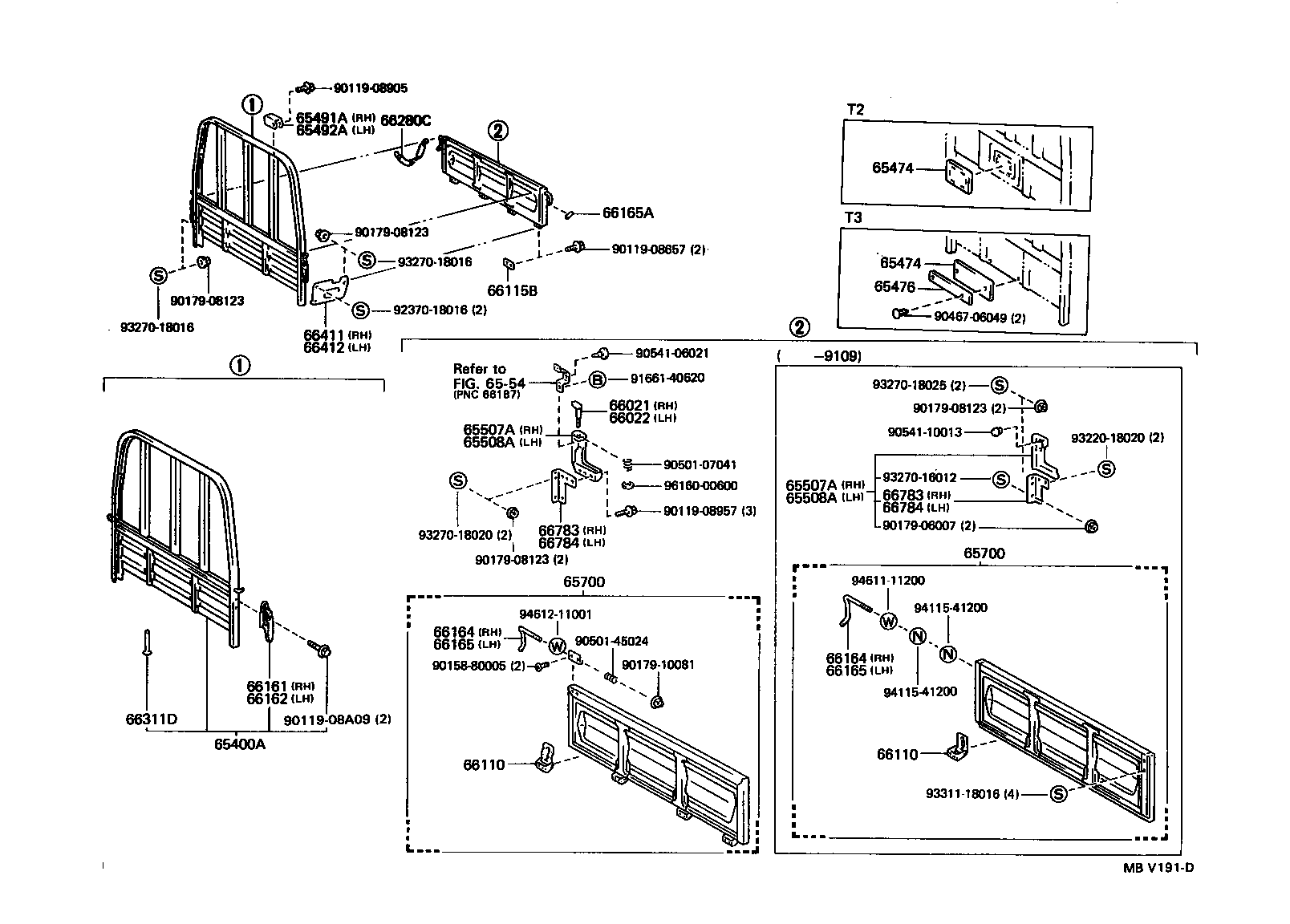

Click highlighted areas on diagram

diagram 65400A 65474 65474 65476 65491A 65492A 65507A 65507A 65508A 65508A 6554 65700 65700 66021 66022 66110 66110 66115B 66161 66162 66164 66164 66165 66165 66165A 66280C 66311D 66411 66412 66783 66783 66784 66784 9011908657 9011908905 9011908957 9011908A09 9015880005 9017906007 9017908123 9017908123 9017908123 9017908123 9017910081 9046706049 9050107041 9050145024 9054106021 9054110013 9166140620 9237018016 9322018020 9327016012 9327018016 9327018016 9327018020 9327018025 9331118016 9411541200 9411541200 9461111200 9461211001 9616000600
Part # Description Qty Price
65400A - GUARD ASSY, REAR BODY
65400-95059

LY6#,YY61..T3..CBU

 1
65491A - STOP, GUARD FRAME LOAD SLIDE, RH
65491-95A03

LY6#,YY61..(T2,T3)..CBU

 1
65492A - STOP, GUARD FRAME LOAD SLIDE, LH
65492-95A00

LY6#,YY61..(T2,T3)..CBU

 1
65507A - SUPPORT SUB-ASSY, CORNER, RH
66770-95013

LY6#,YY61..(T2,T3)..CBU

 1
65507A - SUPPORT SUB-ASSY, CORNER, RH
66770-95013

LY6#,YY61..(T2,T3)..CBU

 1
65508A - SUPPORT SUB-ASSY, CORNER, LH
66780-95013

LY6#,YY61..(T2,T3)..CBU

 1
65508A - SUPPORT SUB-ASSY, CORNER, LH
66780-95013

LY6#,YY61..(T2,T3)..CBU

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-95031

LY6#,YY61..(T2,T3)..CBU

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-95031

LY6#,YY61..(T2,T3)..CBU

 1
66110 - HINGE ASSY, TAIL GATE
66110-95020

LY6#,YY61..(T2,T3)..CBU

 4
66110 - HINGE ASSY, TAIL GATE
66110-95020

LY6#,YY61..(T2,T3)..CBU

 4
66115B - RETAINER, GATE HINGE
66115-95013

LY6#,YY61..(T2,T3)..CBU

 4
66161 - HANDLE, SIDE GATE LATCH, RH
65480-95011

LY6#,YY61..(T2,T3)..CBU

 1
66162 - HANDLE, SIDE GATE LATCH, LH
65480-95011

LY6#,YY61..(T2,T3)..CBU

 1
66164 - HANDLE, TAIL GATE LATCH, RH
66264-95010

LY6#,YY61..(T2,T3)..CBU

 1
66164 - HANDLE, TAIL GATE LATCH, RH
66264-95010

LY6#,YY61..(T2,T3)..CBU

 1
66165 - HANDLE, TAIL GATE LATCH, LH
66265-95011

LY6#,YY61..(T2,T3)..CBU

 1
66165 - HANDLE, TAIL GATE LATCH, LH
66265-95011

LY6#,YY61..(T2,T3)..CBU

 1
66165A - CAP, GATE LATCH HANDLE
66165-95011

LY6#,YY61..(T2,T3)..CBU

 2
66280C - CHAIN ASSY, TAIL GATE
66280-95016

LY6#,YY61..(T2,T3)..CBU

 2
66311D - HOOK, ROPE
66312-95A01

LY6#,YY61..(T2,T3)..CBU

 2
66411 - BRACKET, GUARD FRAME, RH
66411-95022

LY6#,YY61..(T2,T3)..CBU

 1
66412 - BRACKET, GUARD FRAME, LH
66412-95022

LY6#,YY61..(T2,T3)..CBU

 1
66783 - BRACKET, SIDE GATE SUPPORT, RH
66783-95012

LY6#,YY61..(T2,T3)..CBU

 1
66783 - BRACKET, SIDE GATE SUPPORT, RH
66783-95012

LY6#,YY61..(T2,T3)..CBU

 1
66784 - BRACKET, SIDE GATE SUPPORT, LH
66784-95012

LY6#,YY61..(T2,T3)..CBU

 1
66784 - BRACKET, SIDE GATE SUPPORT, LH
66784-95012

LY6#,YY61..(T2,T3)..CBU

 1
Common parts
90119-08657
90119-08905
90119-08957
90119-08A09
90158-80005
90179-06007
90179-08123
90179-10081
90467-06049
90501-07041
90501-45024
90541-06021
90541-10013
91661-40620
92370-18016
93220-18020
93270-16012
93270-18016
93270-18020
93270-18025
93311-18016
94115-41200
94611-11200
94612-11001
96160-00600
Linked diagrams
6554
