LY60R-MDB (1987)
Toyota Dyna150
(8708-8808)2L

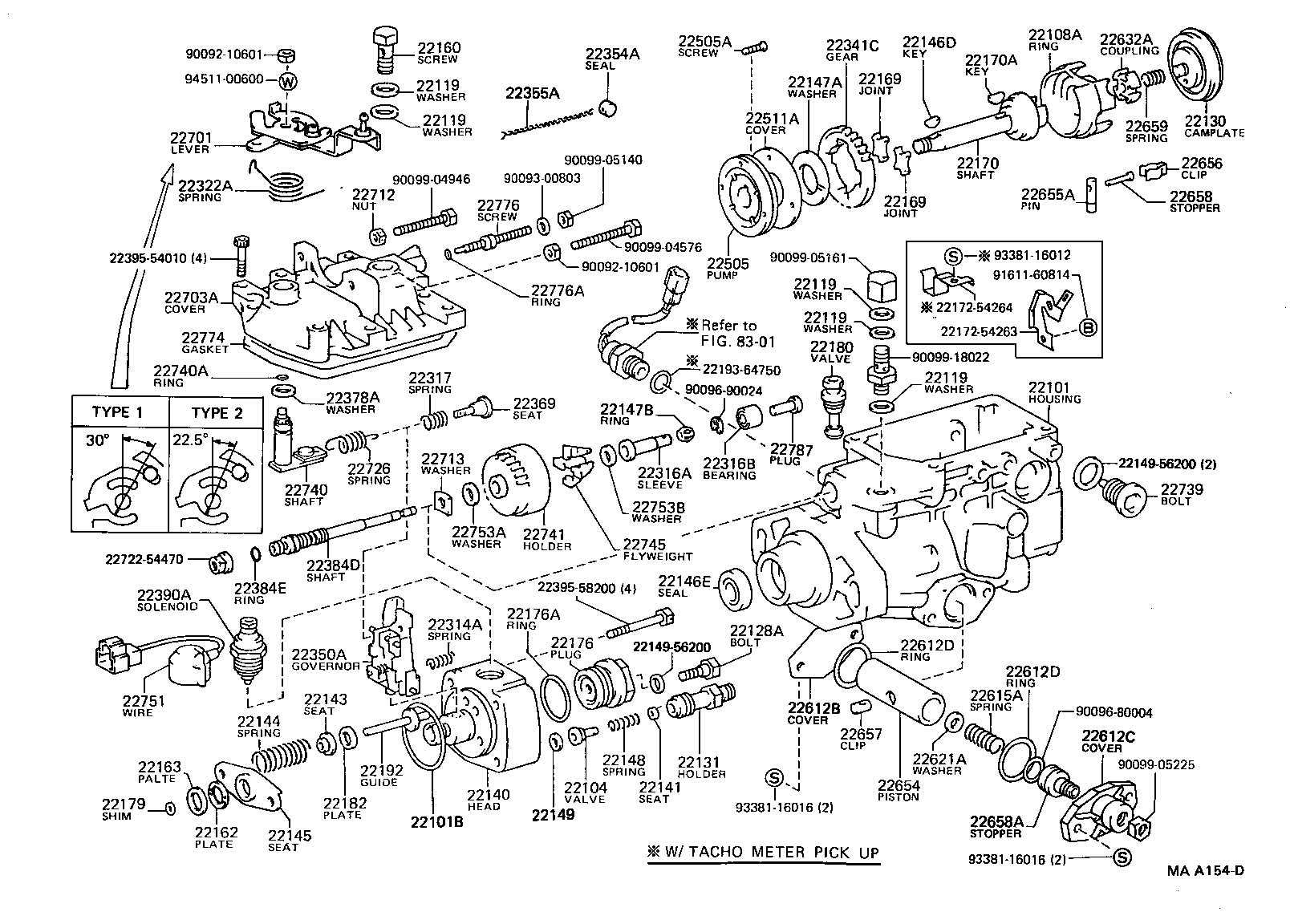

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64250 |
2L..LY60..LHD;3L..LY61..ST..GEN;2L..LY60..RHD..ST..GEN..CBU W(TACHOMETER) |
1 | ||
| 22101-54440 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22101-64230 |
3L..LY61..GEN;2L..LY60..ST..GEN |
1 | ||
| 22101-54440 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE SPEC |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
2L,3L..LY6# |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-54060 |
2L..LY60 |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54010 |
2L,3L..LY6# |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L,3L..LY6# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L,3L..LY6# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L,3L..LY6# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L,3L..LY6# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L,3L..LY6# |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
2L,3L..LY6# |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-58200 |
2L..LY60 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22190-64740 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE OR HONG KONG SPEC |
4 | ||
| 22190-64740 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE SPEC |
4 | ||
| 22131-54110 |
3L..LY61;2L..LY60..ST |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-64400 |
2L..LY60 |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54010 |
3L..LY61;2L..LY60..ST |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
2L,3L..LY6# |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
2L..LY60 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
2L,3L..LY6# |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
2L,3L..LY6# |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
2L,3L..LY6# |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
2L,3L..LY6# |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
2L,3L..LY6# |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
2L,3L..LY6# |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
2L,3L..LY6# |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
2L,3L..LY6# |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
2L,3L..LY6# |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
2L,3L..LY6# |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
2L,3L..LY6# |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
2L,3L..LY6# |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-54180 |
2L..LY60 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
2L,3L..LY6# |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
2L,3L..LY6# |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
2L,3L..LY6# |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54011 |
2L..LY60..RHD..ST..GEN..CBU T=2.0,SINGAPORE SPEC |
1 | ||
| 22179-54015 |
2L..LY60..RHD..ST..GEN..CBU T=2.4,SINGAPORE SPEC |
1 | ||
| 22179-54013 |
2L..LY60..RHD..ST..GEN..CBU T=2.2,SINGAPORE SPEC |
1 | ||
| 22179-54019 |
2L..LY60..RHD..ST..GEN..CBU T=2.8,SINGAPORE SPEC |
1 | ||
| 22179-54011 |
2L..LY60..RHD..ST..GEN..CBU T=2.0,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22179-54017 |
2L..LY60..RHD..ST..GEN..CBU T=2.6,SINGAPORE SPEC |
1 | ||
| 22179-54012 |
2L..LY60..RHD..ST..GEN..CBU T=2.1,SINGAPORE SPEC |
1 | ||
| 22179-54014 |
2L..LY60..RHD..ST..GEN..CBU T=2.3,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22179-54014 |
2L..LY60..RHD..ST..GEN..CBU T=2.3,SINGAPORE SPEC |
1 | ||
| 22179-54016 |
2L..LY60..RHD..ST..GEN..CBU T=2.5,SINGAPORE SPEC |
1 | ||
| 22179-54020 |
2L..LY60..RHD..ST..GEN..CBU T=2.9,SINGAPORE SPEC |
1 | ||
| 22179-54012 |
2L..LY60..RHD..ST..GEN..CBU T=2.1,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22179-54018 |
2L..LY60..RHD..ST..GEN..CBU T=2.7,SINGAPORE SPEC |
1 | ||
| 22179-54015 |
2L..LY60..RHD..ST..GEN..CBU T=2.4,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22179-54019 |
2L..LY60..RHD..ST..GEN..CBU T=2.8,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22179-54016 |
2L..LY60..RHD..ST..GEN..CBU T=2.5,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22179-54013 |
2L..LY60..RHD..ST..GEN..CBU T=2.2,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22179-54010 |
2L,3L..LY6# T=1.9 |
1 | ||
| 22179-54017 |
2L..LY60..RHD..ST..GEN..CBU T=2.6,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22179-54018 |
2L..LY60..RHD..ST..GEN..CBU T=2.7,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22179-54020 |
2L..LY60..RHD..ST..GEN..CBU T=2.9,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-54010 |
2L..LY60 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22184-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.0,SINGAPORE SPEC |
2 | ||
| 22187-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.8,SINGAPORE SPEC |
2 | ||
| 22185-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.2,SINGAPORE SPEC |
2 | ||
| 22183-54010 |
2L..LY60..RHD..ST..GEN..CBU T=0.8,SINGAPORE SPEC |
2 | ||
| 22183-54010 |
2L..LY60..RHD..ST..GEN..CBU T=0.8,SINGAPORE OR HONG KONG SPEC |
2 | ||
| 22188-54010 |
2L..LY60..RHD..ST..GEN..CBU T=2.0,SINGAPORE OR HONG KONG SPEC |
2 | ||
| 22186-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.5,SINGAPORE SPEC |
2 | ||
| 22185-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.2,SINGAPORE OR HONG KONG SPEC |
2 | ||
| 22186-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.5,SINGAPORE OR HONG KONG SPEC |
2 | ||
| 22184-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.0,SINGAPORE OR HONG KONG SPEC |
2 | ||
| 22182-54010 |
2L,3L..LY6# T=0.5 |
2 | ||
| 22188-54010 |
2L..LY60..RHD..ST..GEN..CBU T=2.0,SINGAPORE SPEC |
2 | ||
| 22187-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.8,SINGAPORE OR HONG KONG SPEC |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
2L,3L..LY6# |
2 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
2L,3L..LY6# |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-54310 |
2L..LY60 MARK 26 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
2L,3L..LY6# |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54010 |
2L..LY60 K=0.2,L=6.5 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54132 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE SPEC |
1 | ||
| 22322-54470 |
3L..LY61;2L..LY60..ST..GEN |
1 | ||
| 22322-54132 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22322-54450 |
2L..LY60..LHD;2L..LY60..RHD..ST..GEN..CBU W(TACHOMETER) |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
2L,3L..LY6# |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-54060 |
2L,3L..LY6# |
1 | ||
| 22354A - SEAL, ROD | ||||
| 22354-77050 |
2L..LY60 |
2 | ||
| 22355A - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-78030 |
2L..LY60 |
2 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
2L,3L..LY6# |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
2L,3L..LY6# |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
2L,3L..LY6# |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
2L,3L..LY6# |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-54110 |
2L..LY60 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
2L,3L..LY6# |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
2L,3L..LY6# |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-54020 |
2L,3L..LY6# |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
2L,3L..LY6# |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54450 |
2L,3L..LY6# |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
2L,3L..LY6# |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
2L,3L..LY6# |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-64010 |
2L..LY60..RHD..ST..GEN..CBU K=3.30,L=37.1,SINGAPORE SPEC |
1 | ||
| 22615-64010 |
2L..LY60..RHD..ST..GEN..CBU K=3.30,L=37.1,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22615-54030 |
2L..LY60..RHD..ST..GEN..CBU CW=7.1,SINGAPORE SPEC |
1 | ||
| 22615-54030 |
2L..LY60..RHD..ST..GEN..CBU CW=7.1,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22615-54180 |
2L,3L..LY6# K=3.00,L=37.3 |
1 | ||
| 22615-54030 |
2L..LY60..ST..GEN CW=7.1 |
2 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22621-54010 |
2L..LY60..RHD..ST..GEN..CBU T=0.5,SINGAPORE SPEC OR W(TACHOMETER) |
1 | ||
| 22621-54010 |
2L..LY60..RHD..ST..GEN..CBU T=0.5,SINGAPORE OR HONG KONG SPEC OR W(TACHOMETER) |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
2L,3L..LY6# |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-55030 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE SPEC |
1 | ||
| 22654-55030 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22654-54010 |
2L..LY60..ST |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
2L,3L..LY6# |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
2L,3L..LY6# |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
2L,3L..LY6# |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54010 |
2L..LY60 |
1 | ||
| 22658A - STOPPER, TIMER SLIDE | ||||
| 22658-54450 |
2L..LY60 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
2L,3L..LY6# |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-54451 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE SPEC,TYPE 1 |
1 | ||
| 22701-54452 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE OR HONG KONG SPEC,TYPE 2 |
1 | ||
| 22701-54452 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE SPEC,TYPE 2 |
1 | ||
| 22701-54451 |
2L..LY60..ST |
1 | ||
| 22701-54451 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE OR HONG KONG SPEC,TYPE 1 |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54132 |
2L,3L..LY6# |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
2L..LY60..LHD;2L..LY60..RHD..ST..GEN..CBU W(TACHOMETER) |
2 | ||
| 22775-77121 |
3L..LY61;2L..LY60..GEN |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22717-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.85,SINGAPORE SPEC |
1 | ||
| 22715-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.45,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22716-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.65,SINGAPORE SPEC |
1 | ||
| 22715-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.45,SINGAPORE SPEC |
1 | ||
| 22714-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.25,SINGAPORE SPEC |
1 | ||
| 22717-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.85,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22713-54010 |
2L,3L..LY6# T=1.05 |
1 | ||
| 22714-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.25,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22716-54010 |
2L..LY60..RHD..ST..GEN..CBU T=1.65,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-54260 |
2L..LY60..ST..GEN |
1 | ||
| 22726-54310 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE SPEC,CW=15.5 |
1 | ||
| 22726-54260 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE SPEC,CW=14.2 |
1 | ||
| 22726-54260 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE OR HONG KONG SPEC,CW=14.2 |
1 | ||
| 22726-54311 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE SPEC,CW=13.5 |
1 | ||
| 22726-54310 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE OR HONG KONG SPEC,CW=15.5 |
1 | ||
| 22726-54311 |
2L..LY60..RHD..ST..GEN..CBU SINGAPORE OR HONG KONG SPEC,CW=13.5 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
2L,3L..LY6# |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-54320 |
2L..LY60..GEN;3L..LY61..ARL |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
2L,3L..LY6# |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
2L,3L..LY6# |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
2L,3L..LY6# |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-54311 |
3L..LY61;2L..LY60..GEN |
1 | ||
| 22751-6A220 |
2L..LY60..LHD;2L..LY60..RHD..ST..GEN..CBU W(TACHOMETER) |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
2L,3L..LY6# |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
2L,3L..LY6# |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
2L,3L..LY6# |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
2L,3L..LY6# |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
2L,3L..LY6# |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54010 |
2L..LY60..RHD..ST..GEN..CBU L=5.9,SINGAPORE SPEC |
1 | ||
| 22787-54028 |
2L..LY60..RHD..ST..GEN..CBU L=3.5,SINGAPORE SPEC |
1 | ||
| 22787-54032 |
2L..LY60..RHD..ST..GEN..CBU L=3.9,SINGAPORE SPEC |
1 | ||
| 22787-54027 |
2L..LY60..RHD..ST..GEN..CBU L=3.4,SINGAPORE SPEC |
1 | ||
| 22787-54029 |
2L..LY60..RHD..ST..GEN..CBU L=3.6,SINGAPORE SPEC |
1 | ||
| 22787-54012 |
2L..LY60..RHD..ST..GEN..CBU L=6.3,SINGAPORE SPEC |
1 | ||
| 22787-54031 |
2L..LY60..RHD..ST..GEN..CBU L=3.8,SINGAPORE SPEC |
1 | ||
| 22787-54030 |
2L..LY60..RHD..ST..GEN..CBU L=3.7,SINGAPORE SPEC |
1 | ||
| 22787-54011 |
2L..LY60..RHD..ST..GEN..CBU L=6.1,SINGAPORE SPEC |
1 | ||
| 22787-54034 |
2L..LY60..RHD..ST..GEN..CBU L=4.3,SINGAPORE SPEC |
1 | ||
| 22787-54026 |
2L..LY60 L=3.3 |
1 | ||
| 22787-54029 |
2L..LY60..RHD..ST..GEN..CBU L=3.6,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22787-54028 |
2L..LY60..RHD..ST..GEN..CBU L=3.5,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22787-54010 |
2L..LY60..RHD..ST..GEN..CBU L=5.9,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22787-54033 |
2L..LY60..RHD..ST..GEN..CBU L=4.0,SINGAPORE SPEC |
1 | ||
| 22787-54012 |
2L..LY60..RHD..ST..GEN..CBU L=6.3,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22787-54034 |
2L..LY60..RHD..ST..GEN..CBU L=4.3,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22787-54027 |
2L..LY60..RHD..ST..GEN..CBU L=3.4,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22787-54033 |
2L..LY60..RHD..ST..GEN..CBU L=4.0,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22787-54030 |
2L..LY60..RHD..ST..GEN..CBU L=3.7,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22787-54011 |
2L..LY60..RHD..ST..GEN..CBU L=6.1,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22787-54032 |
2L..LY60..RHD..ST..GEN..CBU L=3.9,SINGAPORE OR HONG KONG SPEC |
1 | ||
| 22787-54031 |
2L..LY60..RHD..ST..GEN..CBU L=3.8,SINGAPORE OR HONG KONG SPEC |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22172-54263 | ||||
| 22172-54264 | ||||
| 22193-64750 | ||||
| 22395-54010 | ||||
| 22395-58200 | ||||
| 22722-54470 | ||||
| 90092-10601 | ||||
| 90093-00803 | ||||
| 90096-80004 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-18022 | ||||
| 91611-60814 | ||||
| 93381-16012 | ||||
| 93381-16016 | ||||
| 94511-00600 | ||||
| Linked diagrams | ||||
| 8301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
