LY60R-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

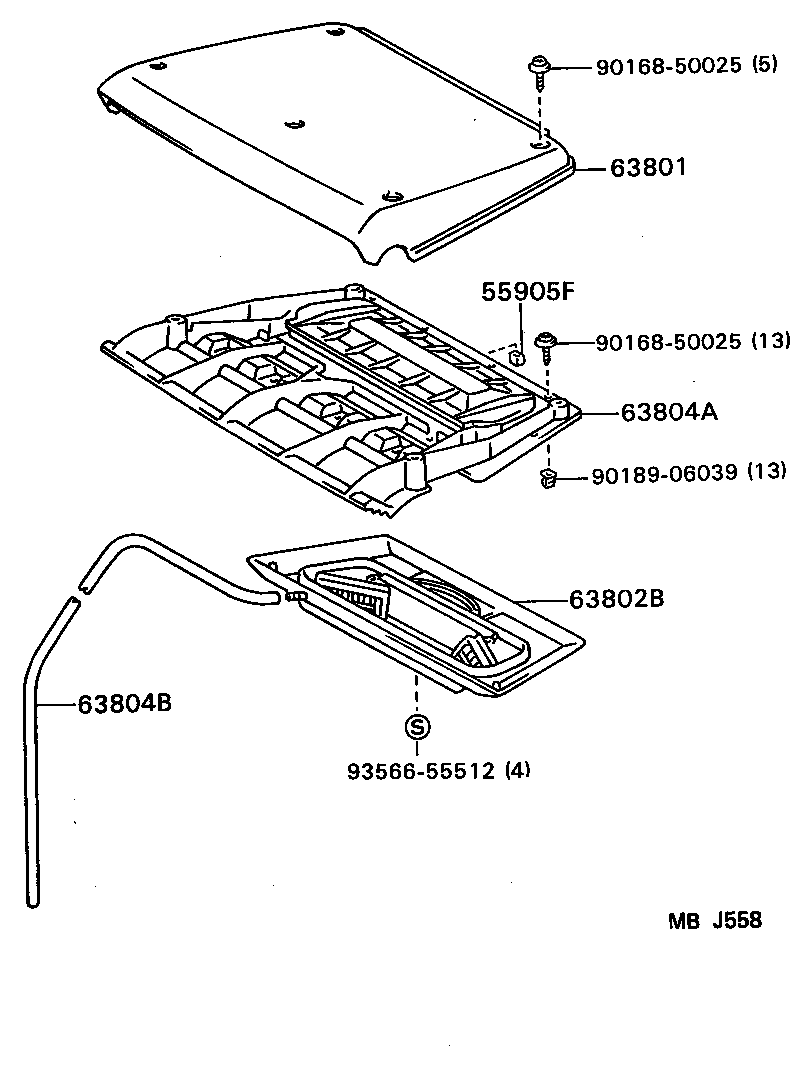

Click highlighted areas on diagram

diagram 55905F 63801 63802B 63804A 63804B 9016850025 9016850025 9018906039 9356655512
Part # Description Qty Price
55905F - KNOB SUB-ASSY, CONTROL
55905-10110

LY60,YY5#,6#

 1
63801 - COVER SUB-ASSY, ROOF VENTILATOR, FRONT
63801-95401

LY60,YY5#,6#

 1
63802B - COVER SUB-ASSY, ROOF VENTILATOR, INNER
63802-9540003

LY60,YY5#,6#

GRAY,GRAY

 1
63804A - HOUSING SUB-ASSY, ROOF VENTILATOR
63804-95400

LY60,YY5#,6#

 1
63804B - HOSE, DRAIN(FOR ROOF VENTILATOR)
88539-95402

LY60,YY5#,6#

 1
Common parts
90168-50025
90189-06039
93566-55512
