LY60R-MDB (1985)
Toyota Dyna150
(8508- )ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-25040 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-10017 |
LY60,YY5#,6#..ARL,GEN |
4 | ||
| 46506 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 46506-36020 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
| 46520 - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-36022 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06002 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06002 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14048 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 46555-35010 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 46556-35010 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
LY60,YY5#,6# |
1 | ||
| Common parts | ||||
| 46540-36010 | ||||
| 46550-36010 | ||||
| 46601-25011 | ||||
| 90119-10338 | ||||
| 94613-11200 | ||||

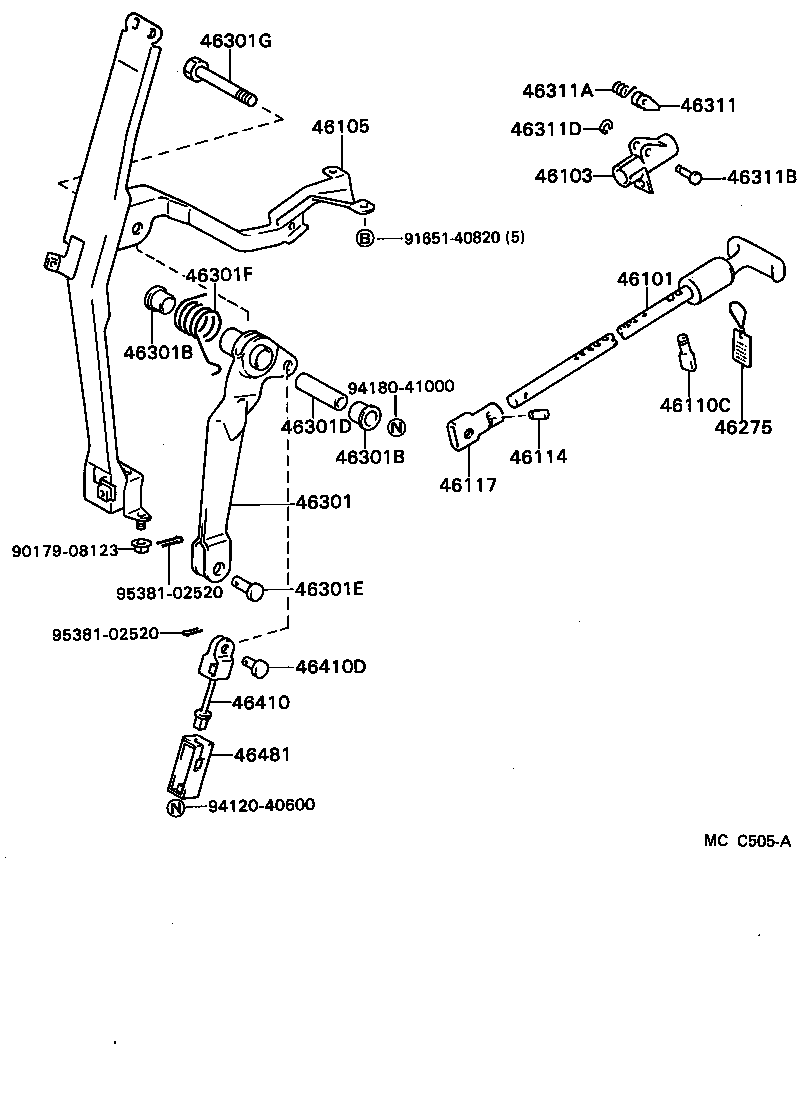

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46101-3618001 |
LY60,YY6#..RHD BLACK,BLACK |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-36140 |
LY60,YY6#..RHD |
1 | ||
| 46105 - BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL | ||||
| 46105-25010 |
LY60,YY6#..RHD |
1 | ||
| 46110C - PIN(FOR PARKING BRAKE HANDLE SET) | ||||
| 46114-20010 |
LY60,YY5#,6# |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-30010 |
LY60,YY5#,6# |
1 | ||
| 46117 - SLEEVE, PARKING BRAKE PLUNGER | ||||
| 46117-30010 |
LY60,YY6#..RHD |
1 | ||
| 46275 - PLATE, PARKING BRAKE RELEASE CAUTION | ||||
| 46275-26010 |
LY60,YY5#,6# |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-36070 |
LY60,YY5#,6# |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
LY60,YY5#,6# |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
LY60,YY5#,6# |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-10004 |
LY60,YY5#,6# |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08010 |
LY60,YY5#,6# |
1 | ||
| 46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90508-35024 |
LY60,YY5#,6# |
1 | ||
| 46301G - BOLT(FOR INTERMEDIATE LEVER) | ||||
| 91111-71070 |
LY60,YY5#,6# |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
LY60,YY5#,6# |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08041 |
LY60,YY5#,6# |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90249-05010 |
LY60,YY5#,6# |
1 | ||
| 46311D - WASHER, TYPE C(FOR PARKING BRAKE PAWL) | ||||
| 90213-03007 |
LY60,YY5#,6# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-36121 |
LY60,YY5#,6# |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08094 |
LY60,YY5#,6# |
1 | ||
| 46481 - CONNECTOR, PARKING CABLE | ||||
| 46481-36012 |
LY60,YY5#,6# |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 91651-40820 | ||||
| 94120-40600 | ||||
| 94180-41000 | ||||
| 95381-02520 | ||||

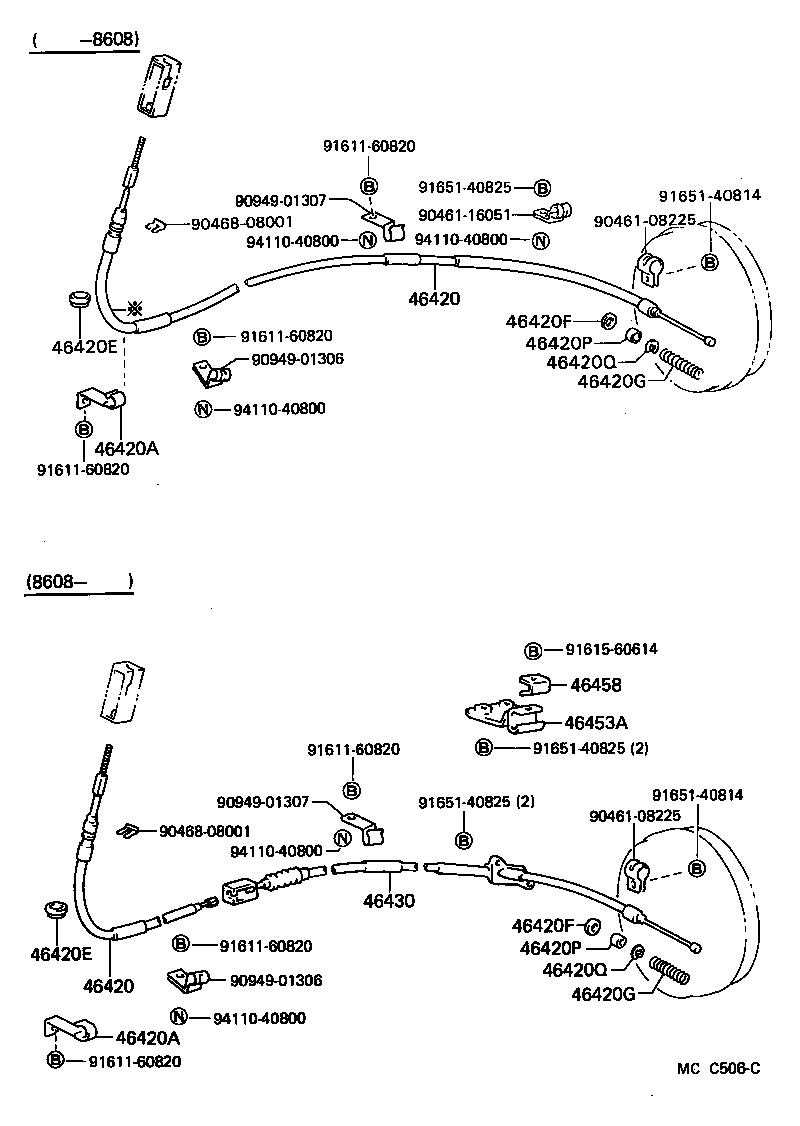

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25150 |
LY60,YY6#..RHD |
1 | ||
| 46420-25180 |
LY60,YY6#..RHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25150 |
LY60,YY6#..RHD |
1 | ||
| 46420-25180 |
LY60,YY6#..RHD |
1 | ||
| 46420E - GROMMET(FOR PARKING BRAKE CABLE CLAMP) | ||||
| 90480-25026 |
LY60,YY5#,6# |
1 | ||
| 46420E - GROMMET(FOR PARKING BRAKE CABLE CLAMP) | ||||
| 90480-25026 |
LY60,YY5#,6# |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
LY60,YY5#,6# |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
LY60,YY5#,6# |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14021 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14021 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
LY60,YY5#,6# |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
LY60,YY5#,6# |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
LY60,YY5#,6# |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
LY60,YY5#,6# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-25030 |
LY60,YY52,6#..ARL,GEN |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
LY60,YY52,6# |
1 | ||
| Common parts | ||||
| 90461-08225 | ||||
| 90461-16051 | ||||
| 90468-08001 | ||||
| 90949-01306 | ||||
| 90949-01307 | ||||
| 91611-60820 | ||||
| 91615-60614 | ||||
| 91651-40814 | ||||
| 91651-40825 | ||||
| 94110-40800 | ||||
