LY60R-MDB (1985)
Toyota Dyna150
Production
Aug 1985
-
Aug 1987
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )ARL,GEN

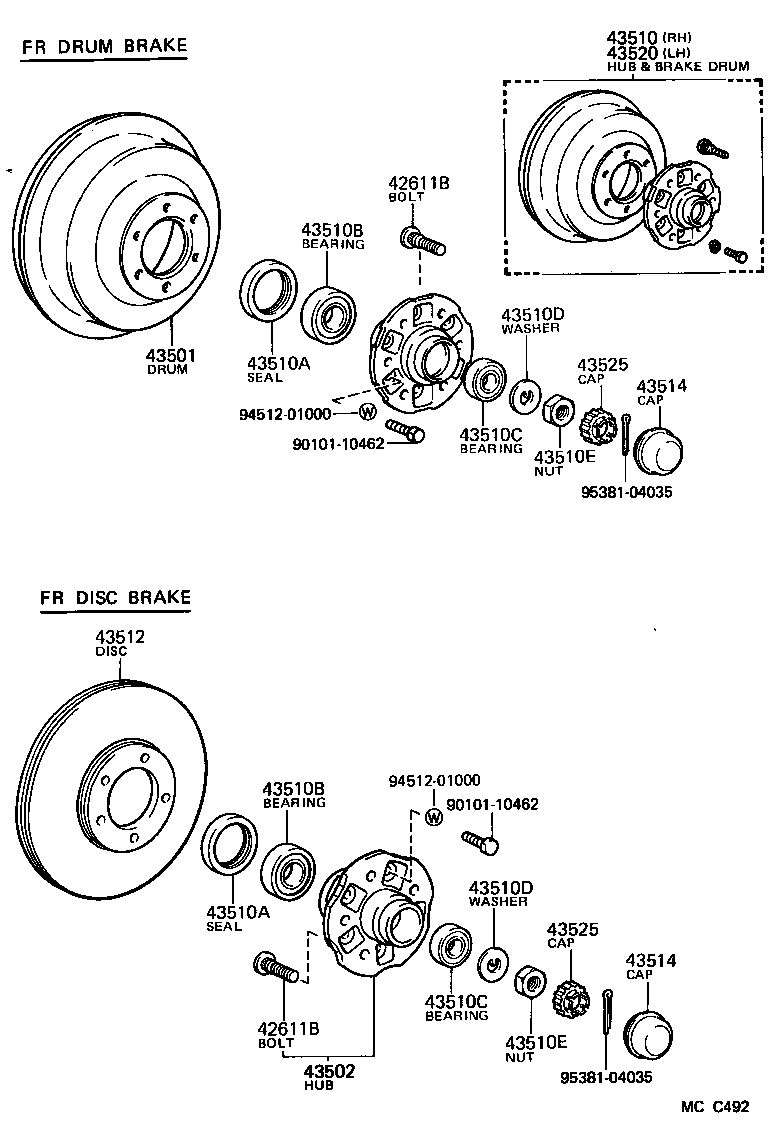

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02058 |
LY60,YY5#,6#..ST |
12 | ||
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02058 |
LY60,YY5#,6#..ST |
12 | ||
| 43501 - DRUM SUB-ASSY, FRONT BRAKE | ||||
| 43512-25030 |
LY60,YY5#,6#..ST..GEN |
2 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43502-25020 |
LY60,YY5#,6#..ST |
2 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-25060 |
LY60,YY5#,6#..ST..GEN |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-50003 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-50003 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90366-35004 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90366-35004 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-22007 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-22007 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-23004 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-23004 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-22003 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-22003 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-25020 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-25010 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-25010 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43510-25060 |
LY60,YY5#,6#..ST..GEN |
1 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-25010 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-25010 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| Common parts | ||||
| 90101-10462 | ||||
| 94512-01000 | ||||
| 95381-04035 | ||||
