LY60L-MDP (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

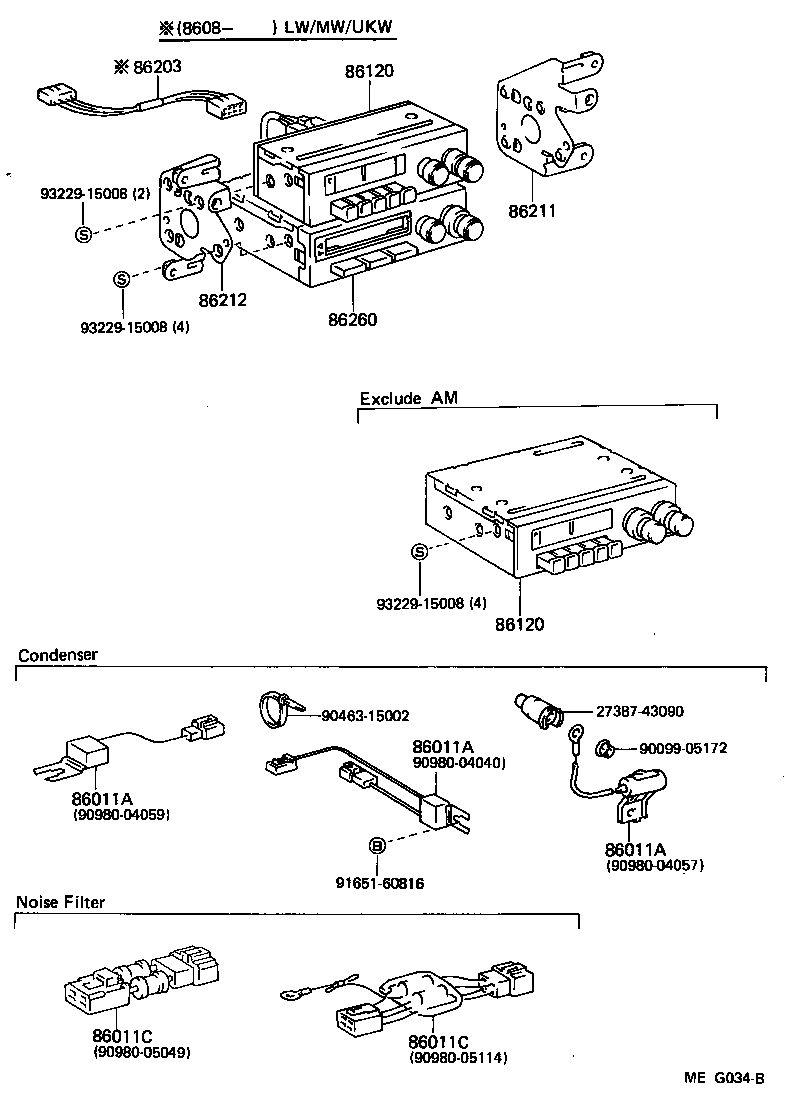

Click highlighted areas on diagram

diagram 2738743090 86011A 86011A 86011A 86011C 86011C 86120 86120 86203 86211 86212 86260 9009905172 9046315002 9098004040 9098004057 9098004059 9098005049 9098005114 9165160816 9322915008 9322915008 9322915008
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04040

LY60

 1
90980-04059

YY5#,6#

 1
86011A - CONDENSER, RADIO SETTING
90980-04040

LY60

 1
90980-04059

YY5#,6#

 1
86011A - CONDENSER, RADIO SETTING
90980-04040

LY60

 1
90980-04059

YY5#,6#

 1
86011C - FILTER, NOISE
90980-05049

LY60,YY5#,6#

 1
86011C - FILTER, NOISE
90980-05049

LY60,YY5#,6#

 1
86120 - RECEIVER ASSY, RADIO
86120-20470

LY60,YY51,6#..ARL,GEN

AM/FM MPX

 1
86120-22600

LY60,YY6#..GEN

MW/SW

 1
86120-16460

LY60,YY6#..GEN

MATSUSHITA,ID=5108,MW/SW

 1
86120-17010

LY60,YY51,6#

AM

 1
86120-16530

LY60,YY52,6#

MATSUSHITA,ID=5010,AM

 1
86120-32280

LY60,YY52,6#..ARL,GEN

MATSUSHITA,AM/FM MPX

 1
86120 - RECEIVER ASSY, RADIO
86120-20470

LY60,YY51,6#..ARL,GEN

AM/FM MPX

 1
86120-22600

LY60,YY6#..GEN

MW/SW

 1
86120-16460

LY60,YY6#..GEN

MATSUSHITA,ID=5108,MW/SW

 1
86120-17010

LY60,YY51,6#

AM

 1
86120-16530

LY60,YY52,6#

MATSUSHITA,ID=5010,AM

 1
86120-32280

LY60,YY52,6#..ARL,GEN

MATSUSHITA,AM/FM MPX

 1
86211 - BRACKET, RADIO, NO.1
86211-95406

LY60,YY5#,6#

 1
86212 - BRACKET, RADIO, NO.2
86212-95406

LY60,YY5#,6#

 1
86260 - TAPE PLAYER ASSY
86260-19055

LY60,YY51,6#..ARL,GEN

 1
86260-17011

LY60,YY52,6#..ARL,GEN

 1
86260-17010

LY60,YY52,6#..ARL,GEN

 1
Common parts
27387-43090
90099-05172
90463-15002
90980-04040
90980-04057
90980-04059
90980-05049
90980-05114
91651-60816
93229-15008
