LY60L-MDP (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LHD

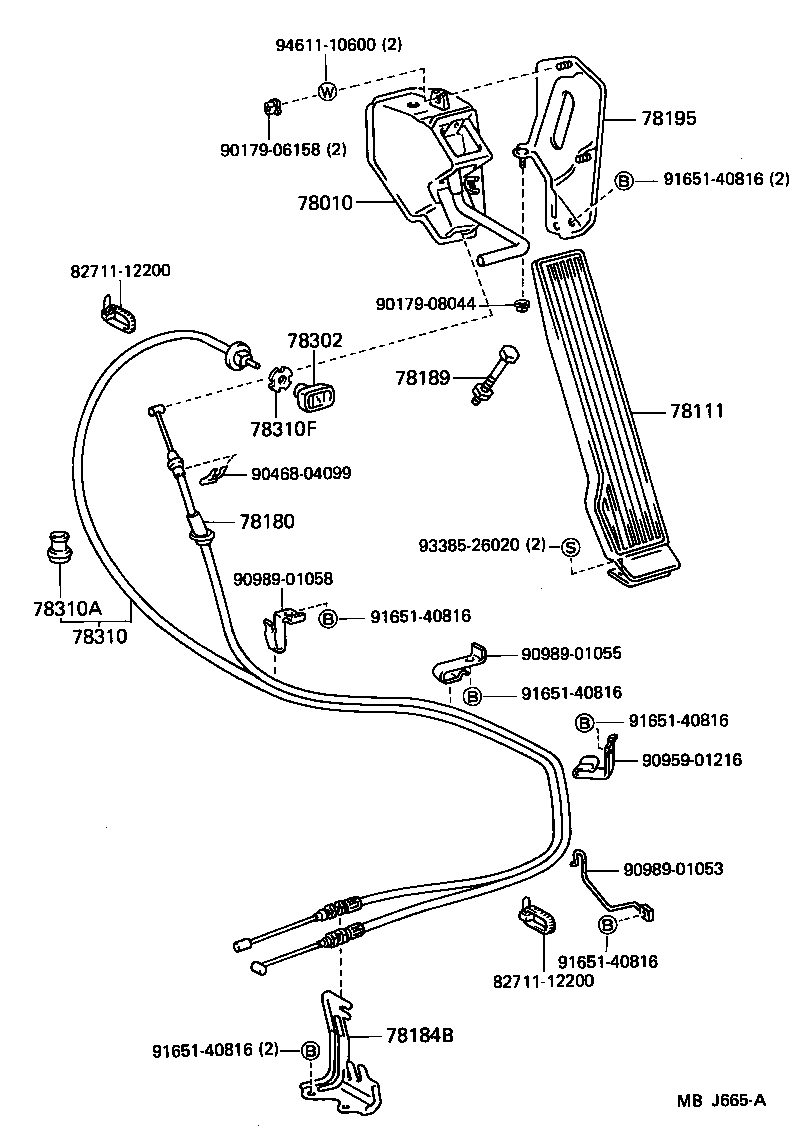

Click highlighted areas on diagram

diagram 78010 78111 78180 78184B 78189 78195 78302 78310 78310A 78310F 8271112200 8271112200 9017906158 9017908044 9046804099 9095901216 9098901053 9098901055 9098901058 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9338526020 9461110600
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78202-95011

LY60,YY5#,6#..LHD

 1
78111 - PEDAL, ACCELERATOR
78110-95014

LY60,YY5#,6#..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95058

YY5#,6#..LHD

 1
78150-95059

LY60..LHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95010

YY5#,6#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95402

LY60,YY5#,6#..LHD

 1
78195 - BRACKET, ACCELERATOR LINK
78195-95401

LY60,YY5#,6#..LHD

 1
78302 - KNOB SUB-ASSY, CHOKE ROD
78302-95400

YY5#,6#

 1
78310 - CABLE ASSY, CHOKE
78304-95012

YY5#,6#..LHD

 1
78310A - GROMMET, CHOKE CABLE
90480-15194

YY5#,6#

 1
78310F - NUT, CHOKE
78314-95010

YY5#,6#

 1
Common parts
82711-12200
90179-06158
90179-08044
90468-04099
90959-01216
90989-01053
90989-01055
90989-01058
91651-40816
93385-26020
94611-10600

(8508- )LY60..LHD

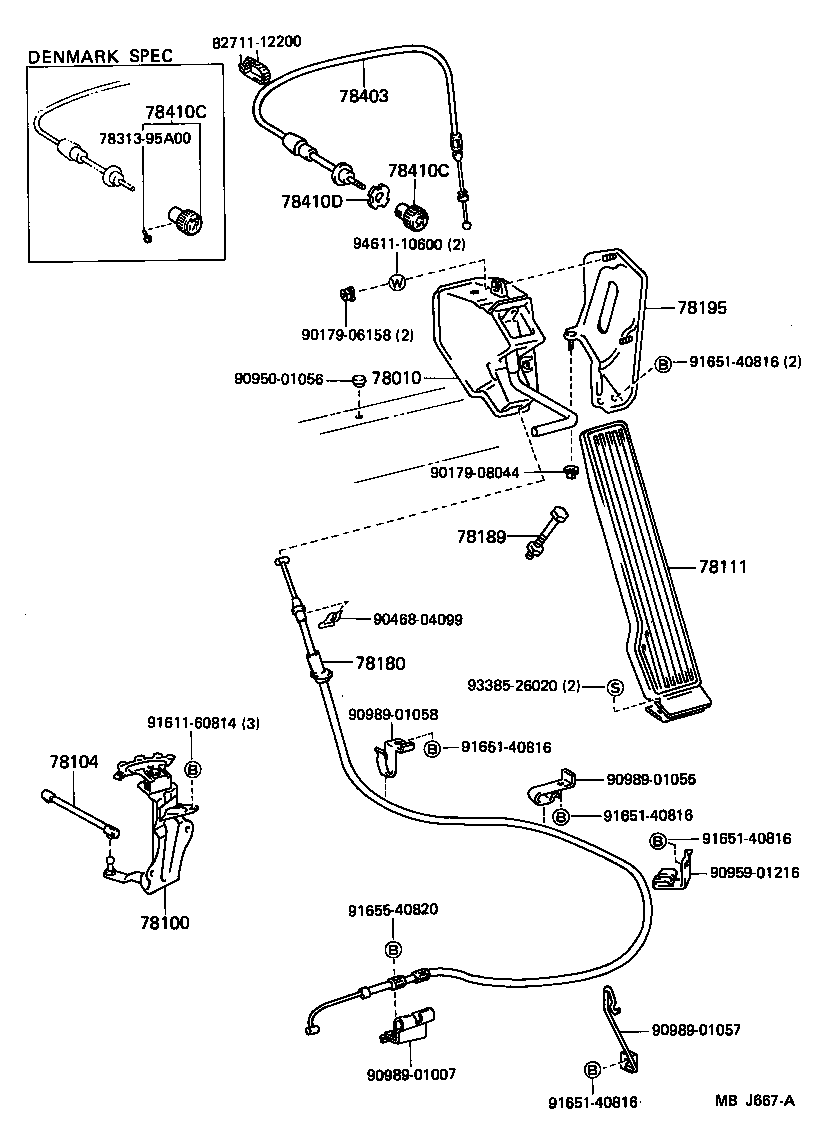

Click highlighted areas on diagram

diagram 78010 78100 78104 78111 78180 78189 78195 7831395A00 78403 78410C 78410C 78410D 8271112200 9017906158 9017908044 9046804099 9095001056 9095901216 9098901007 9098901055 9098901057 9098901058 9161160814 9165140816 9165140816 9165140816 9165140816 9165140816 9165540820 9338526020 9461110600
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78202-95011

LY60,YY5#,6#..LHD

 1
78100 - LINK ASSY, ACCELERATOR
78100-95012

LY60..LHD

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30120

LY60

 1
78111 - PEDAL, ACCELERATOR
78110-95014

LY60,YY5#,6#..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95058

YY5#,6#..LHD

 1
78150-95059

LY60..LHD

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95402

LY60,YY5#,6#..LHD

 1
78195 - BRACKET, ACCELERATOR LINK
78195-95401

LY60,YY5#,6#..LHD

 1
78403 - CABLE SUB-ASSY, THROTTLE CONTROL
78404-95012

LY60..LHD

 1
78410C - KNOB, THROTTLE CABLE
78411-22010

LY60

 1
78410C - KNOB, THROTTLE CABLE
78411-22010

LY60

 1
78410D - NUT, THROTTLE
78413-95J00

LY60

 1
Common parts
78313-95A00
82711-12200
90179-06158
90179-08044
90468-04099
90950-01056
90959-01216
90989-01007
90989-01055
90989-01057
90989-01058
91611-60814
91651-40816
91655-40820
93385-26020
94611-10600
