LY60L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )TW..ST

Click highlighted areas on diagram

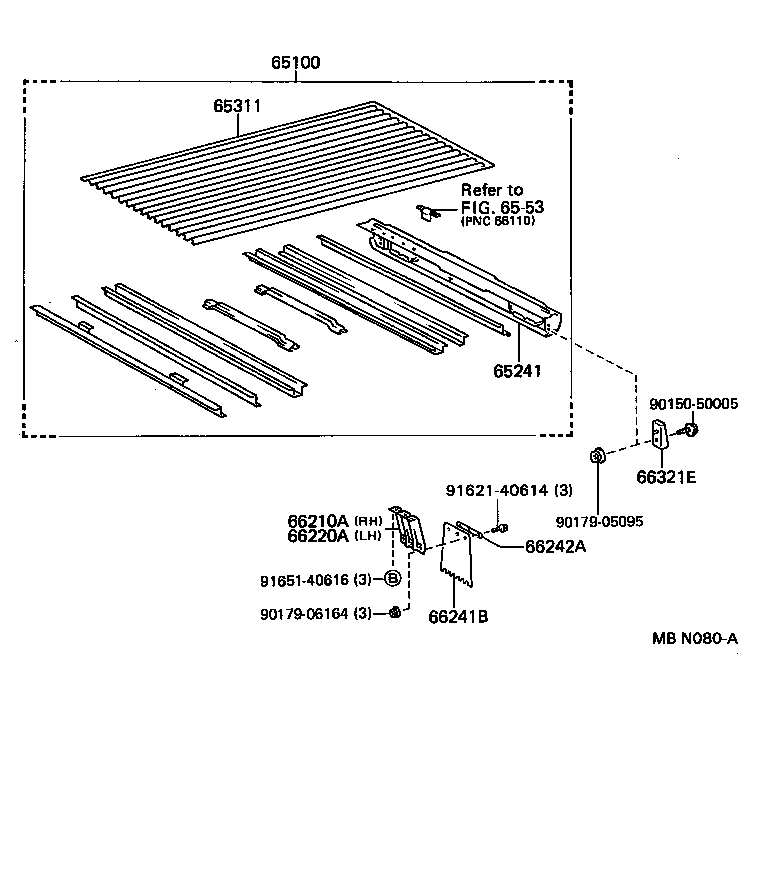

diagram 65100 65241 65311 6553 66210A 66220A 66241B 66242A 66321E 9015050005 9017905095 9017906164 9162140614 9165140616
Part # Description Qty Price
65100 - FLOOR ASSY, REAR BODY
65100-95L12

LY6#,YY61..TW..ST

 1
65241 - SILL, REAR CROSS
65240-95037

LY6#,YY52,61..TW..ST

 1
65311 - PANEL, FLOOR, CENTER
65311-95027

LY6#,YY61..TW..ST

 1
66210A - FENDER ASSY, REAR NO.1 RH
66205-95A00

LY60,YY52,61..TW

 1
66220A - FENDER ASSY, REAR NO.1 LH
66205-95A00

LY60,YY52,61..TW

 1
66241B - BAFFLE, RUBBER
66241-95600

LY6#,YY52,61..ST..CBU

 2
66242A - PLATE, BAFFLE RUBBER
66242-95012

LY6#,YY52,61..ST..CBU

 2
66321E - BUMPER, GATE RUBBER
66321-95406

LY6#,YY52,61..TW..ST

 2
Common parts
90150-50005
90179-05095
90179-06164
91621-40614
91651-40616
Linked diagrams
6553
