LY60L-MDBTW3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

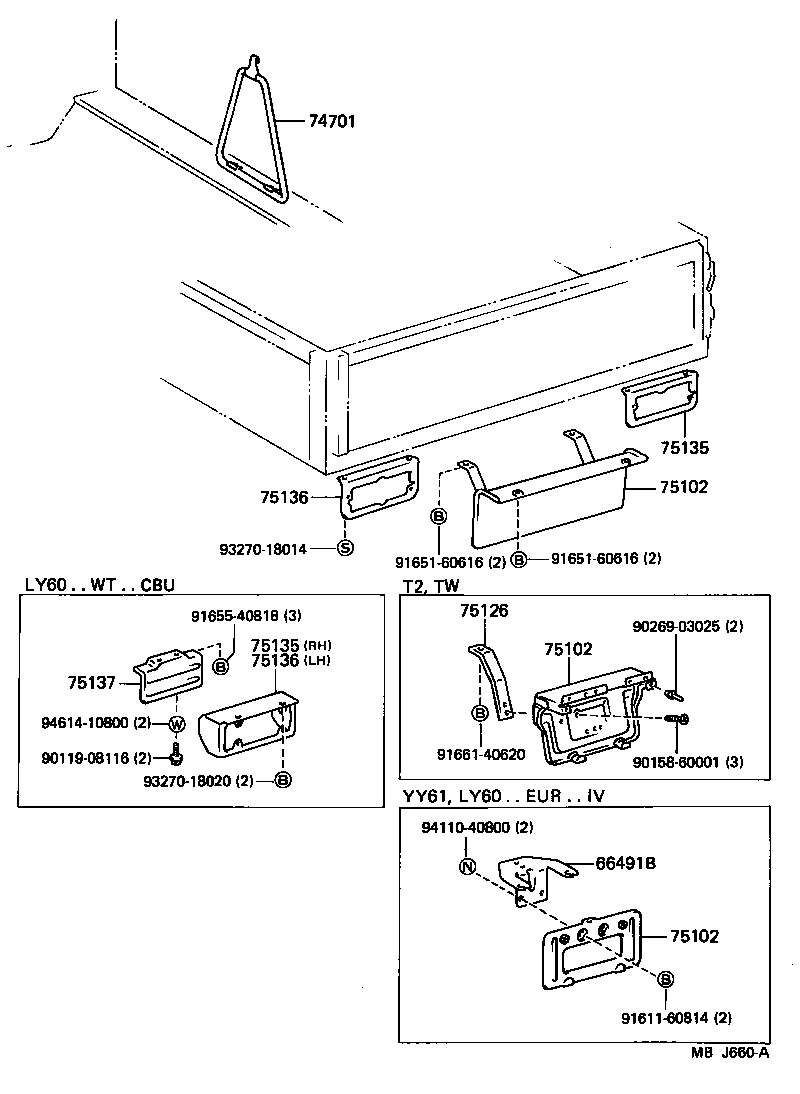

Click highlighted areas on diagram

diagram 66491B 74701 75102 75102 75102 75126 75135 75135 75136 75136 75137 9011908116 9015860001 9026903025 9161160814 9165160616 9165160616 9165540818 9166140620 9327018014 9327018020 9411040800 9461410800
Part # Description Qty Price
66491B - HANGER, LICENSE PLATE BRACKET
66491-95412

LY60,YY61..EUR..IV

 2
74701 - CLAMP SUB-ASSY, TOOL BAG
58705-95A01

LY60,YY5#,6#

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

LY60,YY61..EUR..IV

 2
66490-95022

LY60,YY5#,6#..TW

 2
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

LY60,YY61..EUR..IV

 2
66490-95022

LY60,YY5#,6#..TW

 2
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

LY60,YY61..EUR..IV

 2
66490-95022

LY60,YY5#,6#..TW

 2
75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER
66407-95017

LY60,YY5#,6#..TW

 2
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95412

LY60,YY61..EUR

 2
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95412

LY60,YY61..EUR

 2
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95412

LY60,YY61..EUR

 2
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95412

LY60,YY61..EUR

 2
75137 - BRACKET, LICENSE PLATE LAMP
75137-95400

LY60,YY61..EUR

 2
Common parts
90119-08116
90158-60001
90269-03025
91611-60814
91651-60616
91655-40818
91661-40620
93270-18014
93270-18020
94110-40800
94614-10800
