LY60L-MDBTW3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LHD

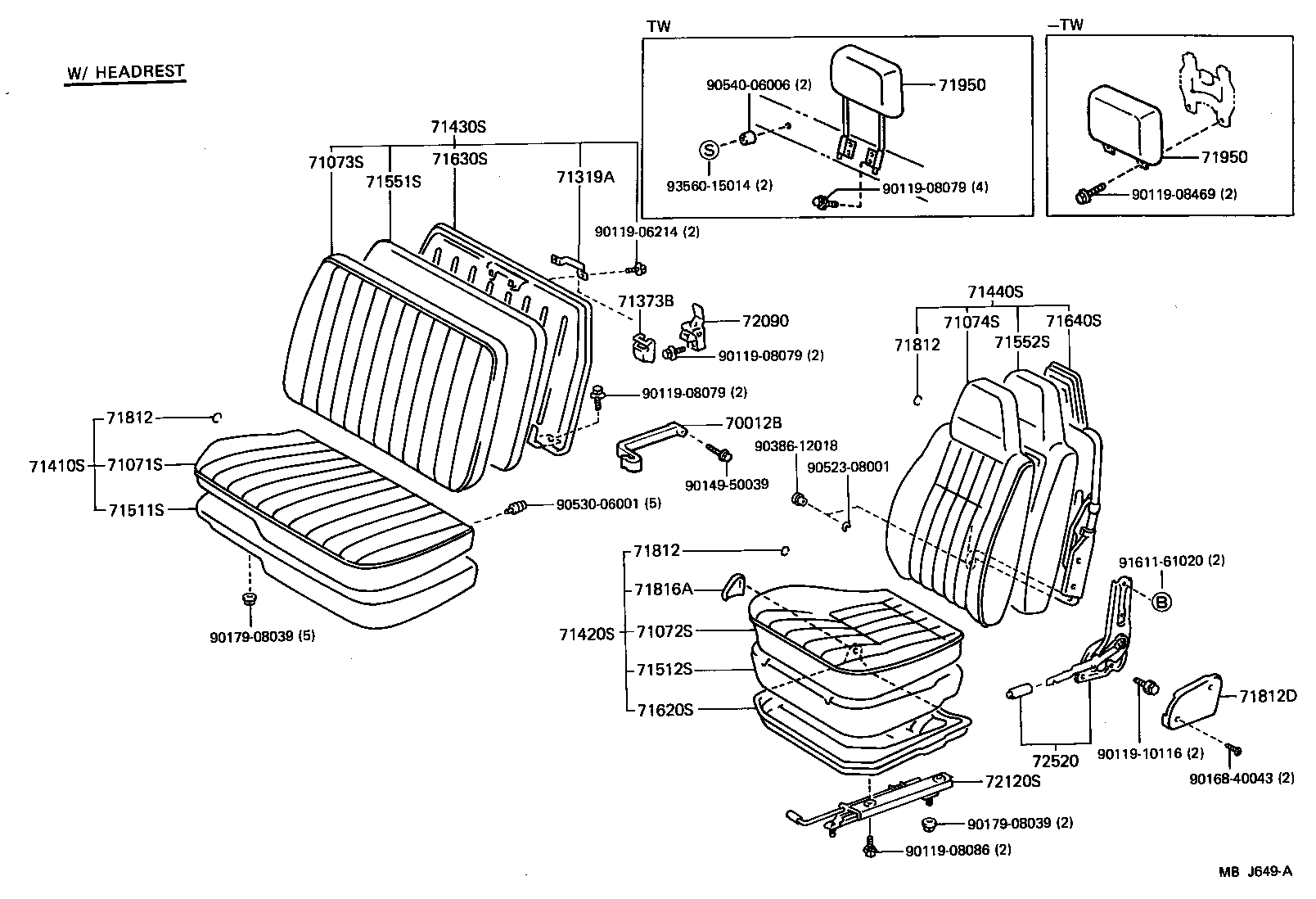

Click highlighted areas on diagram

diagram 70012B 71071S 71072S 71073S 71074S 71319A 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71620S 71630S 71640S 71812 71812 71812 71812D 71816A 71950 71950 72090 72120S 72520 9011906214 9011908079 9011908079 9011908079 9011908086 9011908469 9011910116 9014950039 9016840043 9017908039 9017908039 9038612018 9052308001 9053006001 9054006006 9161161020 9356015014
Part # Description Qty Price
70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-9570003

LY60,YY5#,6#

SHADOW GRAY,SHADOW GRAY

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9545903

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71071-9546604

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-9546103

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71072-9547204

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9546703

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71073-9547304

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-9546203

LY60..EUR

VL,W/*HR,SHADOW GRAY,SHADOW GRAY

 1
71074-95A1804

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71073-95A0203

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71074-95A2103

LY60,YY61..EUR

VL,W/*HR,SHADOW GRAY,SHADOW GRAY

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95400

LY60,YY5#,6#

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-9540003

LY60,YY51,6#

SHADOW GRAY,SHADOW GRAY

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9545204

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71410-9544503

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-9544403

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71420-9545504

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9544903

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71430-9545504

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-95A1303

LY60,YY61..EUR

VL,W/*HR,SHADOW GRAY,SHADOW GRAY

 1
71440-95A3104

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71440-95A1203

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-95400

LY60,YY5#,6#..LHD

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-95402

LY60,YY61..EUR

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71552-95403

LY60,YY5#,6#..LHD

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-95405

LY60,YY5#,6#..LHD

 1
71551-95404

LY60,YY5#,6#..LHD

W/*HR

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71012-95412

LY60,YY5#,6#..LHD

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71014-95411

LY60,YY5#,6#..LHD

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-95412

LY60,YY5#,6#..LHD

W/*HR

 1
71160-95J06

LY60,YY5#,6#..LHD

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LY60,YY51,6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LY60,YY51,6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LY60,YY51,6#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-95J0003

LY60,YY5#,6#..LHD

SHADOW GRAY,SHADOW GRAY

 1
71816A - COVER, FRONT SEAT CUSHION HINGE, LH
71816-95J0003

LY60,YY5#,6#..LHD

SHADOW GRAY,SHADOW GRAY

 1
71950 - HEADREST ASSY, FRONT SEAT
71910-9260303

LY60,YY5#,6#..TW

GRAY,GRAY

 1
71910-9540003

LY60,YY6#..(T2,T3)..(EUR,GEN)

GRAY,GRAY

 1
71950 - HEADREST ASSY, FRONT SEAT
71910-9260303

LY60,YY5#,6#..TW

GRAY,GRAY

 1
71910-9540003

LY60,YY6#..(T2,T3)..(EUR,GEN)

GRAY,GRAY

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-9540003

LY60,YY51,6#

SHADOW GRAY,SHADOW GRAY

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-95A00

LY60,YY5#,6#..LHD

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-95A0503

LY60,YY5#,6#..LHD

SHADOW GRAY,SHADOW GRAY

 1
Common parts
90119-06214
90119-08079
90119-08086
90119-08469
90119-10116
90149-50039
90168-40043
90179-08039
90386-12018
90523-08001
90530-06001
90540-06006
91611-61020
93560-15014

(8508- )

Click highlighted areas on diagram

diagram 71075B 71077B 71460B 71466 71467 71468 71468A 71469 71480B 71486 71491A 71611 71621A 71647 71650 71651B 71670 71697 71812 71812 9161160820
Part # Description Qty Price
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-95A0304

LY60,YY5#,6#..TW

FB,BLUE,BLUE

 1
71466 - PAD, REAR SEAT CUSHION UNDER
71466-95400

LY60,YY5#,6#..TW

 1
71467 - PAD, CORNER
71467-95400

LY60,YY5#,6#..TW

 2
71468 - PROTECTOR, REAR SEAT, NO.1 (FOR SEAT CUSHION)
71647-95A00

LY60,YY5#,6#..TW

 2
71468A - PROTECTOR, REAR SEAT, NO.1 (FOR SEAT BACK)
71468-95400

LY60,YY5#,6#..TW

 2
71469 - PROTECTOR, REAR SEAT, NO.2
71469-95401

LY60,YY5#,6#..TW

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-95A0304

LY60,YY5#,6#..TW

FB,BLUE,BLUE

 1
71486 - PROTECTOR, REAR SEAT, NO.3
71486-95401

LY60,YY5#,6#..TW

 1
71491A - CUSHION, REAR SEAT SET
71491-95A00

LY60,YY5#,6#..TW

 2
71611 - PAD, REAR SEAT CUSHION
71611-92600

LY60,YY5#,6#..TW

 1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-95400

LY60,YY5#,6#..TW

 1
71647 - PROTECTOR, REAR SEAT CUSHION EDGE
71647-95A01

LY60,YY5#,6#..TW

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-92600

LY60,YY5#,6#..TW

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-95A01

LY60,YY5#,6#..TW

 1
71697 - PROTECTOR, REAR SEAT BACK EDGE
71697-95A00

LY60,YY5#,6#..TW

65X1270

 1
71697-95A01

LY60,YY5#,6#..TW

65X420

 2
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LY60,YY51,6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LY60,YY51,6#

 1
Common parts
91611-60820

(8508- )LHD

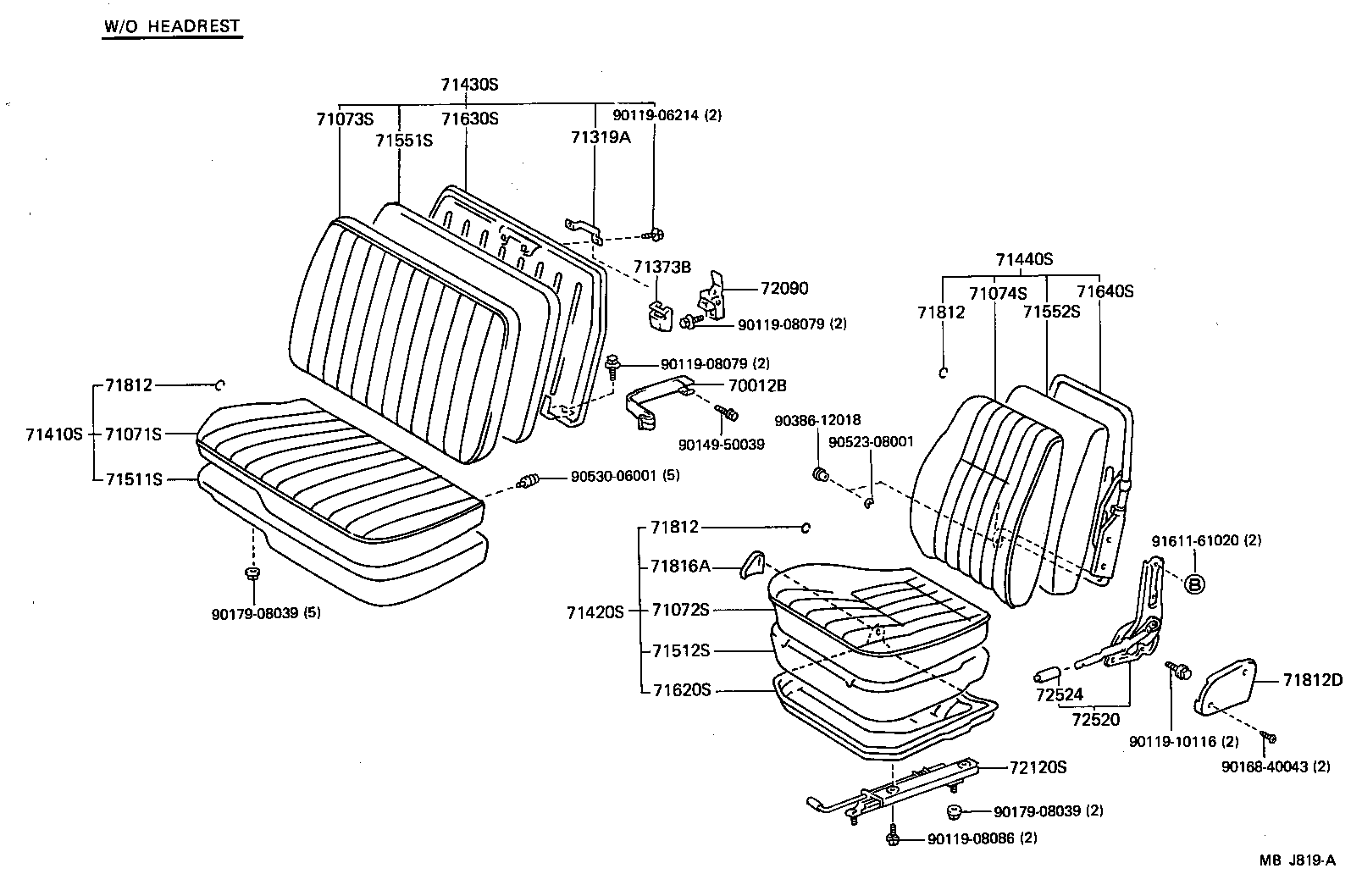

Click highlighted areas on diagram

diagram 70012B 71071S 71072S 71073S 71074S 71319A 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71620S 71630S 71640S 71812 71812 71812 71812D 71816A 72090 72120S 72520 72524 9011906214 9011908079 9011908079 9011908086 9011910116 9014950039 9016840043 9017908039 9017908039 9038612018 9052308001 9053006001 9161161020
Part # Description Qty Price
70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-9570003

LY60,YY5#,6#

SHADOW GRAY,SHADOW GRAY

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9545903

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71071-9546604

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-9546103

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71072-9547204

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9546703

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71073-9547304

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-9546203

LY60..EUR

VL,W/*HR,SHADOW GRAY,SHADOW GRAY

 1
71074-95A1804

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71073-95A0203

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71074-95A2103

LY60,YY61..EUR

VL,W/*HR,SHADOW GRAY,SHADOW GRAY

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95400

LY60,YY5#,6#

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-9540003

LY60,YY51,6#

SHADOW GRAY,SHADOW GRAY

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9545204

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71410-9544503

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-9544403

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71420-9545504

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9544903

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71430-9545504

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-95A1303

LY60,YY61..EUR

VL,W/*HR,SHADOW GRAY,SHADOW GRAY

 1
71440-95A3104

LY60,YY61..EUR

FB,BLUE,BLUE

 1
71440-95A1203

LY60,YY61..EUR

VL,SHADOW GRAY,SHADOW GRAY

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-95400

LY60,YY5#,6#..LHD

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-95402

LY60,YY61..EUR

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71552-95403

LY60,YY5#,6#..LHD

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-95405

LY60,YY5#,6#..LHD

 1
71551-95404

LY60,YY5#,6#..LHD

W/*HR

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71012-95412

LY60,YY5#,6#..LHD

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71014-95411

LY60,YY5#,6#..LHD

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-95412

LY60,YY5#,6#..LHD

W/*HR

 1
71160-95J06

LY60,YY5#,6#..LHD

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LY60,YY51,6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LY60,YY51,6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LY60,YY51,6#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-95J0003

LY60,YY5#,6#..LHD

SHADOW GRAY,SHADOW GRAY

 1
71816A - COVER, FRONT SEAT CUSHION HINGE, LH
71816-95J0003

LY60,YY5#,6#..LHD

SHADOW GRAY,SHADOW GRAY

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-9540003

LY60,YY51,6#

SHADOW GRAY,SHADOW GRAY

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-95A00

LY60,YY5#,6#..LHD

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-95A0503

LY60,YY5#,6#..LHD

SHADOW GRAY,SHADOW GRAY

 1
Common parts
90119-06214
90119-08079
90119-08086
90119-10116
90149-50039
90168-40043
90179-08039
90386-12018
90523-08001
90530-06001
91611-61020
