LY60L-MDBTW3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )EUR

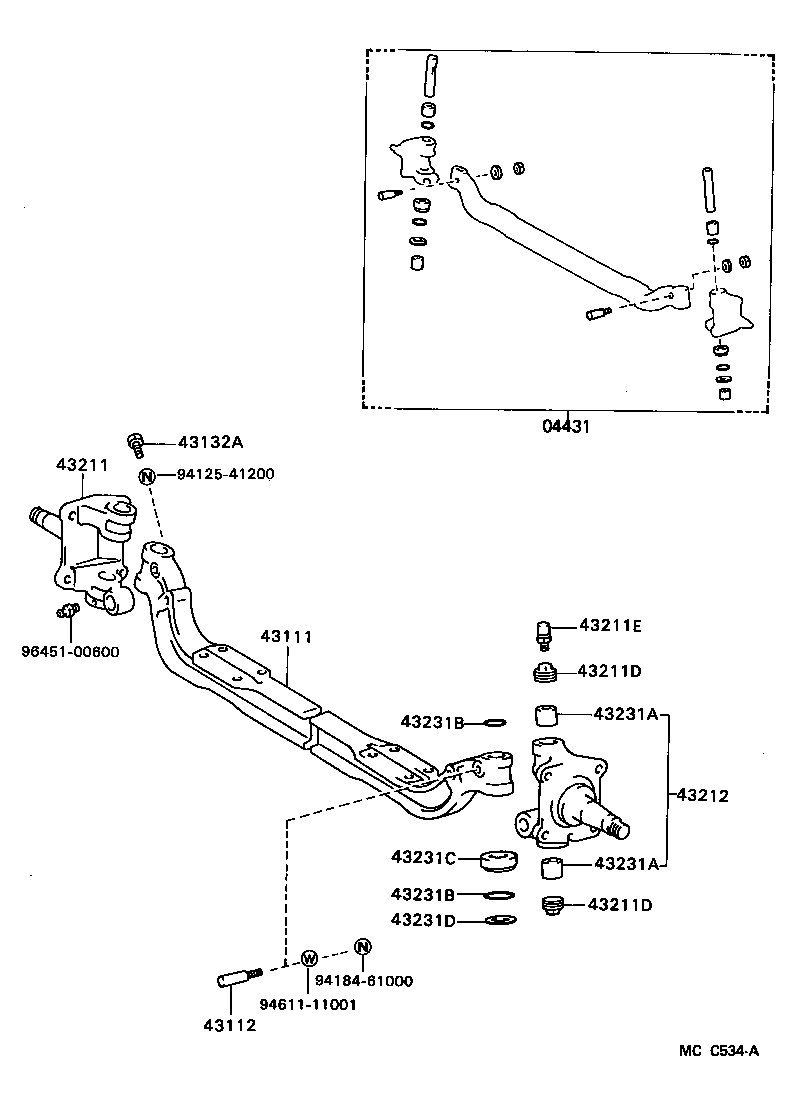

Click highlighted areas on diagram

diagram 04431 43111 43112 43132A 43211 43211D 43211D 43211E 43212 43231A 43231A 43231B 43231B 43231C 43231D 9412541200 9418461000 9461111001 9645100600
Part # Description Qty Price
04431 - PIN KIT, STEERING KNUCKLE KING
04431-25020

LY60,YY61..EUR

 1
43111 - I BEAM, FRONT AXLE
43111-36090

LY60,YY61..EUR

 1
43111-36090

LY60..EUR

 1
43112 - PIN, KING PIN LOCK
43112-36020

LY60,YY61..EUR

 2
43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
90106-12001

LY60,YY61..EUR

 2
43211 - KNUCKLE, STEERING, RH
43201-36080

LY60,YY61..EUR

 1
43211D - PLUG (FOR STEERING KNUCKLE)
90345-33002

LY60,YY61..EUR

LWR

 2
90345-33001

LY60,YY61..EUR

UPR

 2
43211D - PLUG (FOR STEERING KNUCKLE)
90345-33002

LY60,YY61..EUR

LWR

 2
90345-33001

LY60,YY61..EUR

UPR

 2
43211E - DEFLECTOR, DUST (FOR STEERING KNUCKLE)
90930-03031

LY60,YY5#,6#

 2
43212 - KNUCKLE, STEERING, LH
43202-36070

LY60,YY61..EUR

 1
43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS
90999-73086

LY60,YY61..EUR

 4
43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS
90999-73086

LY60,YY61..EUR

 4
43231B - SEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)
96711-19028

LY60,YY61..EUR

 2
43231B - SEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)
96711-19028

LY60,YY61..EUR

 2
43231C - BEARING (FOR STEERING KNUCKLE KING PIN)
90367-28001

LY60,YY61..EUR

 2
43231D - SHIM (FOR KING PIN)
90564-28128

LY60,YY61..EUR

T=0.20,T=0.2

 2
90564-28144

LY60,YY61..EUR

T=0.40,T=0.4

 2
90564-28130

LY60,YY61..EUR

T=0.30,T=0.3

 2
90564-28129

LY60,YY61..EUR

T=0.25,T=0.25

 2
90564-28145

LY60,YY61..EUR

T=0.45,T=0.45

 2
90564-28131

LY60,YY61..EUR

T=0.35,T=0.35

 2
Common parts
94125-41200
94184-61000
94611-11001
96451-00600
