LY60L-MDB (1985)
Toyota Dyna150

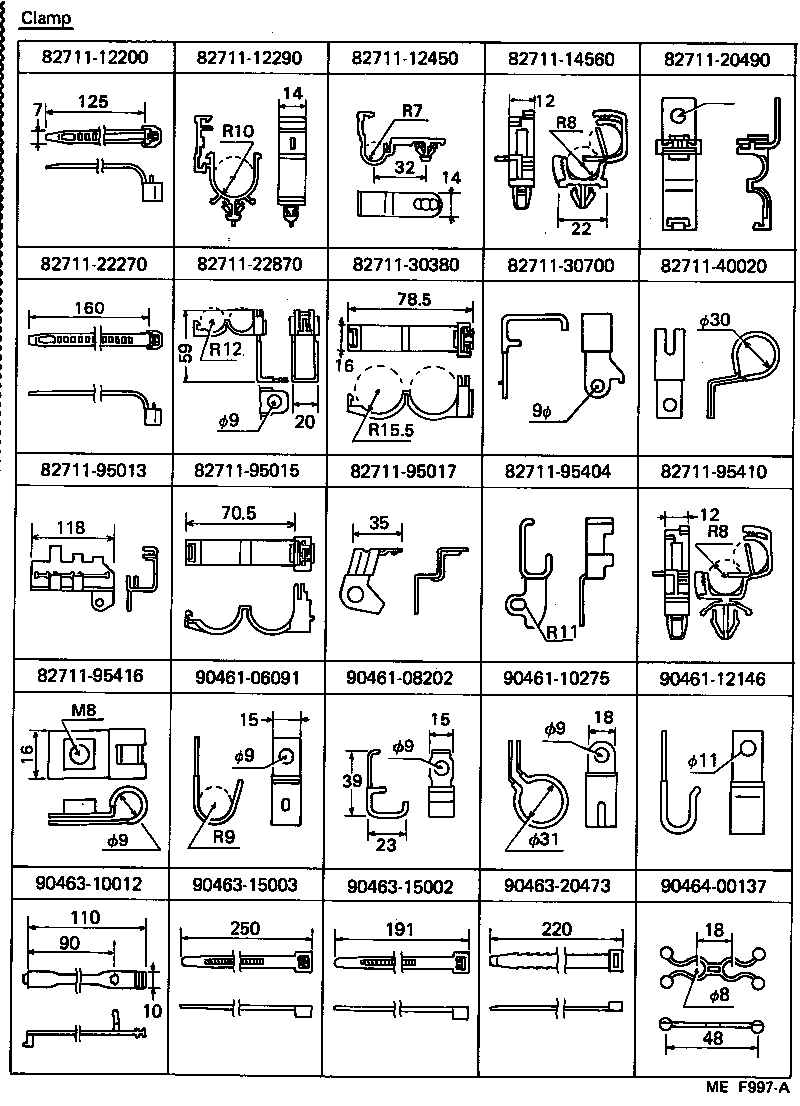

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12290 | ||||
| 82711-12450 | ||||
| 82711-14560 | ||||
| 82711-20490 | ||||
| 82711-22270 | ||||
| 82711-22870 | ||||
| 82711-30380 | ||||
| 82711-30700 | ||||
| 82711-40020 | ||||
| 82711-95013 | ||||
| 82711-95015 | ||||
| 82711-95017 | ||||
| 82711-95404 | ||||
| 82711-95410 | ||||
| 82711-95416 | ||||
| 90461-06091 | ||||
| 90461-08202 | ||||
| 90461-10275 | ||||
| 90461-12146 | ||||
| 90463-10012 | ||||
| 90463-15002 | ||||
| 90463-15003 | ||||
| 90463-20473 | ||||
| 90464-00137 | ||||

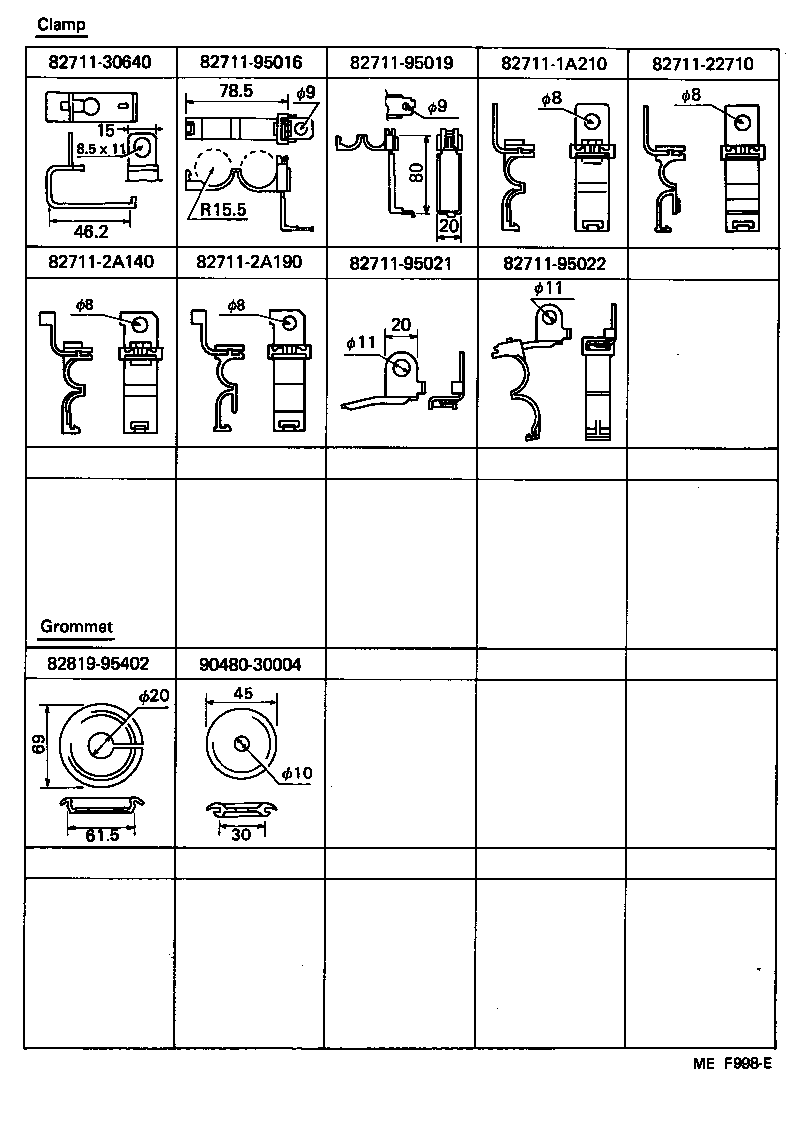

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A210 | ||||
| 82711-22710 | ||||
| 82711-2A140 | ||||
| 82711-2A190 | ||||
| 82711-30640 | ||||
| 82711-95016 | ||||
| 82711-95019 | ||||
| 82711-95021 | ||||
| 82711-95022 | ||||
| 82819-95402 | ||||
| 90480-30004 | ||||

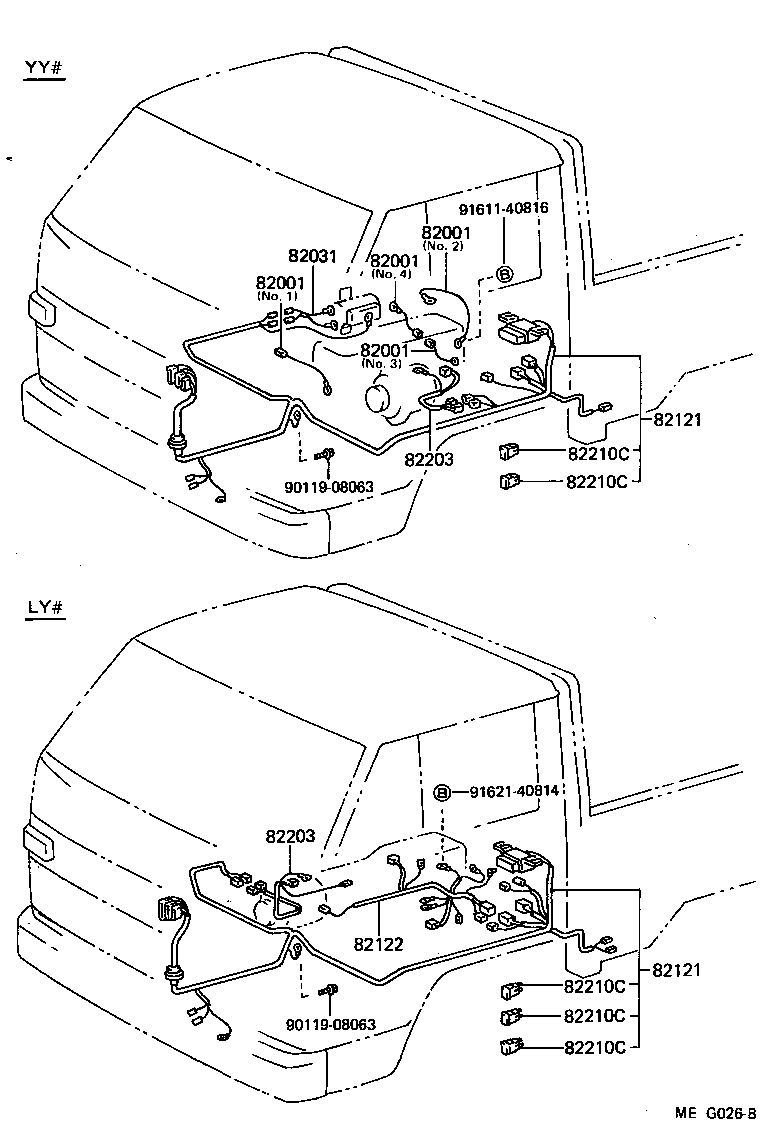

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07256 |
YY5#,6# NO.1,L=170 |
1 | ||
| 90980-07228 |
YY5#,6# NO.3,L=170 |
1 | ||
| 90980-07227 |
YY5#,6# NO.4,L=300 |
1 | ||
| 90980-07181 |
YY5#,6# NO.2,L=460 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07256 |
YY5#,6# NO.1,L=170 |
1 | ||
| 90980-07228 |
YY5#,6# NO.3,L=170 |
1 | ||
| 90980-07227 |
YY5#,6# NO.4,L=300 |
1 | ||
| 90980-07181 |
YY5#,6# NO.2,L=460 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07256 |
YY5#,6# NO.1,L=170 |
1 | ||
| 90980-07228 |
YY5#,6# NO.3,L=170 |
1 | ||
| 90980-07227 |
YY5#,6# NO.4,L=300 |
1 | ||
| 90980-07181 |
YY5#,6# NO.2,L=460 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07256 |
YY5#,6# NO.1,L=170 |
1 | ||
| 90980-07228 |
YY5#,6# NO.3,L=170 |
1 | ||
| 90980-07227 |
YY5#,6# NO.4,L=300 |
1 | ||
| 90980-07181 |
YY5#,6# NO.2,L=460 |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-95010 |
YY5#,6# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-95026 |
LY60..LHD..GEN |
1 | ||
| 82121-95024 |
YY51,60..LHD |
1 | ||
| 82121-95040 |
YY51,60..LHD |
1 | ||
| 82121-95054 |
LY60..LHD..GEN |
1 | ||
| 82121-95042 |
LY60..LHD..GEN |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-95026 |
LY60..LHD..GEN |
1 | ||
| 82121-95024 |
YY51,60..LHD |
1 | ||
| 82121-95040 |
YY51,60..LHD |
1 | ||
| 82121-95054 |
LY60..LHD..GEN |
1 | ||
| 82121-95042 |
LY60..LHD..GEN |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82060-95012 |
LY60..GEN |
1 | ||
| 82060-95013 |
LY60..T3..GEN W/POWER STEERING |
1 | ||
| 82060-95013 |
LY60..ST..GEN W/TACHOMETER |
1 | ||
| 82060-95016 |
LY60..GEN |
1 | ||
| 82060-95017 |
LY60..T3..GEN W/POWER STEERING |
1 | ||
| 82060-95017 |
LY60..ST..GEN W/TACHOMETER |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82203-95014 |
YY52,6# |
1 | ||
| 82203-95011 |
YY51,6# |
1 | ||
| 82203-95015 |
YY52,6# |
1 | ||
| 82203-95012 |
LY60 |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82203-95014 |
YY52,6# |
1 | ||
| 82203-95011 |
YY51,6# |
1 | ||
| 82203-95015 |
YY52,6# |
1 | ||
| 82203-95012 |
LY60 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
LY60..GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08189 |
LY60,YY5#,6# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08202 |
YY52,6# 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08228 |
LY60 50A,TERM.:MALE,RED,50A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
LY60..GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08189 |
LY60,YY5#,6# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08202 |
YY52,6# 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08228 |
LY60 50A,TERM.:MALE,RED,50A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
LY60..GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08189 |
LY60,YY5#,6# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08202 |
YY52,6# 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08228 |
LY60 50A,TERM.:MALE,RED,50A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
LY60..GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08189 |
LY60,YY5#,6# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08202 |
YY52,6# 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08228 |
LY60 50A,TERM.:MALE,RED,50A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
LY60..GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08189 |
LY60,YY5#,6# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08202 |
YY52,6# 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08228 |
LY60 50A,TERM.:MALE,RED,50A |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 91611-40816 | ||||
| 91621-40814 | ||||

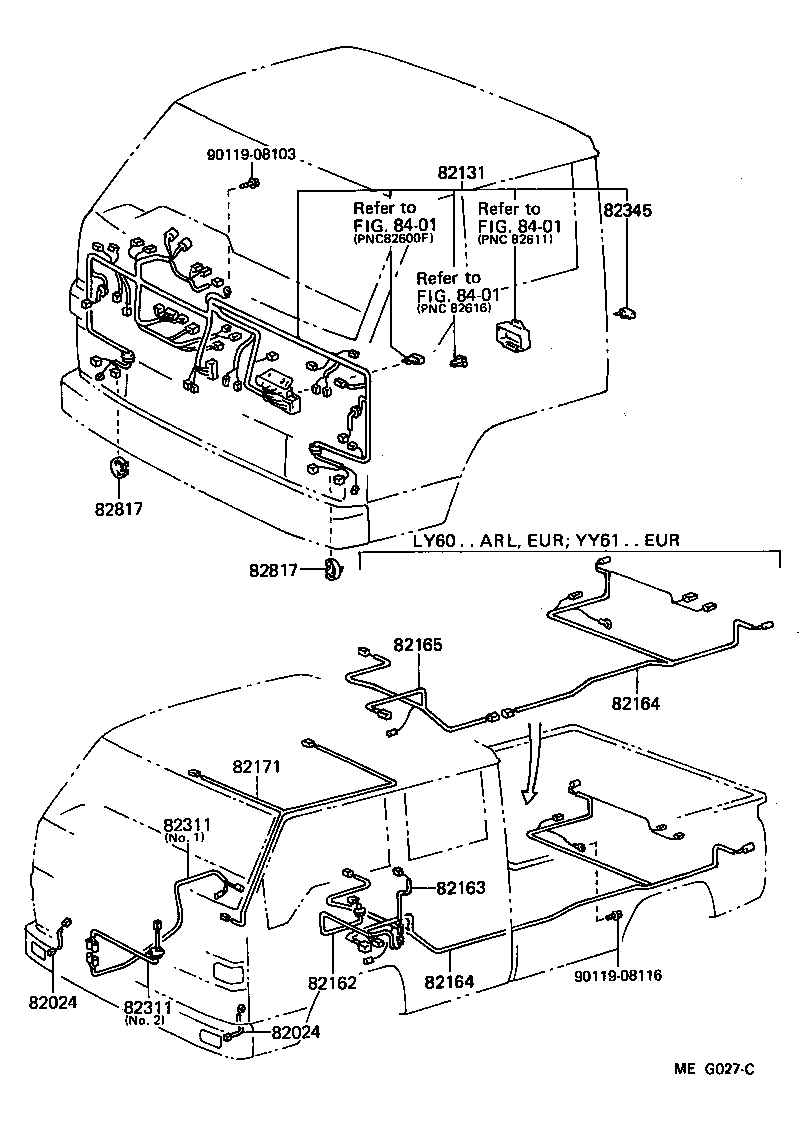

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82024 - WIRE SUB-ASSY, FOG LAMP FEED | ||||
| 82024-95010 |
LY60,YY5#,6#..GEN |
2 | ||
| 82024 - WIRE SUB-ASSY, FOG LAMP FEED | ||||
| 82024-95010 |
LY60,YY5#,6#..GEN |
2 | ||
| 82131 - WIRE, COWL | ||||
| 82131-95049 |
LY60..LHD..GEN |
1 | ||
| 82131-95047 |
YY51,60..LHD |
1 | ||
| 82131-95063 |
LY60..LHD..GEN |
1 | ||
| 82131-95078 |
LY60..LHD..GEN |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-95029 |
LY60..T3..GEN |
1 | ||
| 82164-95052 |
LY60..T3..GEN |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-95029 |
LY60..T3..GEN |
1 | ||
| 82164-95052 |
LY60..T3..GEN |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-95400 |
LY60,YY6#..T2,T3 |
1 | ||
| 82311 - HARNESS ASSY, COOLER | ||||
| 88648-95409 |
YY5#,6#..GEN NO.2 |
1 | ||
| 88648-95015 |
LY60..ARL,GEN NO.1 |
1 | ||
| 88648-95014 |
YY5#,6#..GEN NO.1 |
1 | ||
| 88648-95410 |
LY60..ARL,GEN NO.2 |
1 | ||
| 82311 - HARNESS ASSY, COOLER | ||||
| 88648-95409 |
YY5#,6#..GEN NO.2 |
1 | ||
| 88648-95015 |
LY60..ARL,GEN NO.1 |
1 | ||
| 88648-95014 |
YY5#,6#..GEN NO.1 |
1 | ||
| 88648-95410 |
LY60..ARL,GEN NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
LY60..ARL,GEN |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
LY60,YY5#,6# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
LY60,YY5#,6# |
2 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 90119-08116 | ||||
| Linked diagrams | ||||
| 8401 | ||||
