LY60L-MDB (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

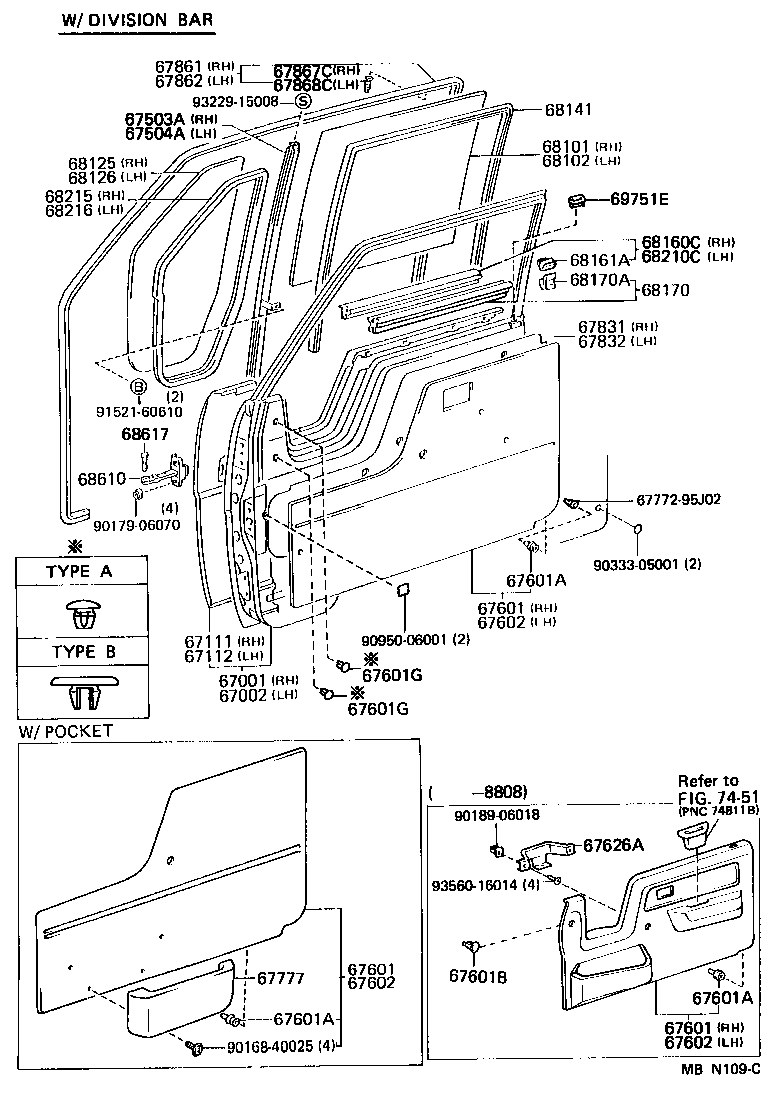

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67503A 67504A 67601 67601 67601 67601A 67601A 67601A 67601B 67601G 67601G 67602 67602 67602 67626A 6777295J02 67777 67831 67832 67861 67862 67867C 67868C 68101 68102 68125 68126 68141 68160C 68161A 68170 68170A 68210C 68215 68216 68610 68617 69751E 7451 9016840025 9017906070 9018906018 9033305001 9095006001 9152160610 9322915008 9356016014
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-95429

LY60..ARL..IV;LY60,YY52,61..LHD

 1
67001-95432

LY60..ARL..IV;LY60,YY52,61..LHD

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-95A27

LY60,YY52,61..LHD

 1
67002-95022

LY60,YY52,61..LHD

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-95406

LY60..ARL..IV;LY60,YY52,61..LHD

 1
67111-95407

LY60..ARL..IV;LY60,YY52,61..LHD

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-95A11

LY60,YY52,61..LHD

 1
67503A - BAR SUB-ASSY, FRONT DOOR DIVISION, RH
67503-95400

LY60,YY52,61

 1
67504A - BAR SUB-ASSY, FRONT DOOR DIVISION, LH
67504-95400

LY60,YY52,61

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9501906

LY60,YY52,61..GEN

BROWN,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9501906

LY60,YY52,61..GEN

BROWN,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9501906

LY60,YY52,61..GEN

BROWN,TRIM4#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12020

LY60,YY52,61..GEN

 26
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12020

LY60,YY52,61..GEN

 26
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12020

LY60,YY52,61..GEN

 26
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-0132406

LY6#,YY52,61..GEN

BROWN,TRIM4#,TYPE A

 2
90950-0160706

LY6#,YY52,61..GEN

BROWN,TRIM4#,TYPE B

 2
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-0132406

LY6#,YY52,61..GEN

BROWN,TRIM4#,TYPE A

 2
90950-0160706

LY6#,YY52,61..GEN

BROWN,TRIM4#,TYPE B

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9502206

LY60,YY52,61..GEN

BROWN,TRIM4#

 1
67620-9502606

LY60,YY52,61..LHD

W(DOOR POCKET),BROWN,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9502206

LY60,YY52,61..GEN

BROWN,TRIM4#

 1
67620-9502606

LY60,YY52,61..LHD

W(DOOR POCKET),BROWN,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9502206

LY60,YY52,61..GEN

BROWN,TRIM4#

 1
67620-9502606

LY60,YY52,61..LHD

W(DOOR POCKET),BROWN,TRIM4#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-2204001

LY60,YY52,61..LHD

BLACK,TRIM4#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-95406

LY60,YY52,61

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-95407

LY60,YY52,61

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-95406

LY60,YY52,61

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-95406

LY60,YY52,61

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-89101

LY60,YY52,61

 28
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-89103

LY60,YY52,61

 28
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-95406

LY60,YY52,61

*TEM,T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-95406

LY60,YY52,61

*TEM,T=4.0

 1
68125 - GLASS, FRONT DOOR FIX WINDOW, RH
68125-95400

LY60,YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

*TEM,T=3.5

 1
68126 - GLASS, FRONT DOOR FIX WINDOW, LH
68126-95400

LY60,YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

*TEM,T=3.5

 1
68141 - RUN, FRONT DOOR GLASS
68141-95407

LY60,YY52,61

 2
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68160-95402

LY60,YY52,61

 1
68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68211-30080

LY60,YY52,61

 8
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-95405

LY60,YY52,61..GEN

LH

 1
68171-95408

LY60,YY52,61..GEN

RH

 1
68171-95406

LY60,YY52,61..GEN

RH

 1
68172-95407

LY60,YY52,61..GEN

LH

 1
68172-95402

LY60,YY52,61..GEN

LH

 1
68171-95410

LY60,YY52,61..GEN

RH

 1
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-12080

LY60,YY52,61..GEN

 8
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68160-95402

LY60,YY52,61

 1
68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68215-95402

LY60,YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

 1
68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68216-95402

LY60,YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

 1
68610 - CHECK ASSY, FRONT DOOR
68610-95400

LY60,YY52,61

 2
68617 - PIN, FRONT DOOR CHECK
68617-90A00

LY6#,YY52,61

 2
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-2003101

LY60,YY52,61..GEN

BLACK,TRIM4#

 2
Common parts
67772-95J02
90168-40025
90179-06070
90189-06018
90333-05001
90950-06001
91521-60610
93229-15008
93560-16014
Linked diagrams
7451
