YH81R-MDBQ3 (1987)
Toyota Dyna100
Production
Aug 1987
-
May 1995
Engine
2Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8708- )5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-26080 |
LH80,YH81..RHD..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-35004 |
LH80,YH81..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
LH80,YH81..5F |
1 | ||
| 90541-06036 |
LH80,YH81..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LH80,YH81..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LH80,YH81..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
LH80,YH81..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
LH80,YH81..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51070 |
LH80,YH81..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
LH80,YH81..5F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
LH80,YH81..5F L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
LH80,YH81..5F |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||
| 94613-11001 | ||||

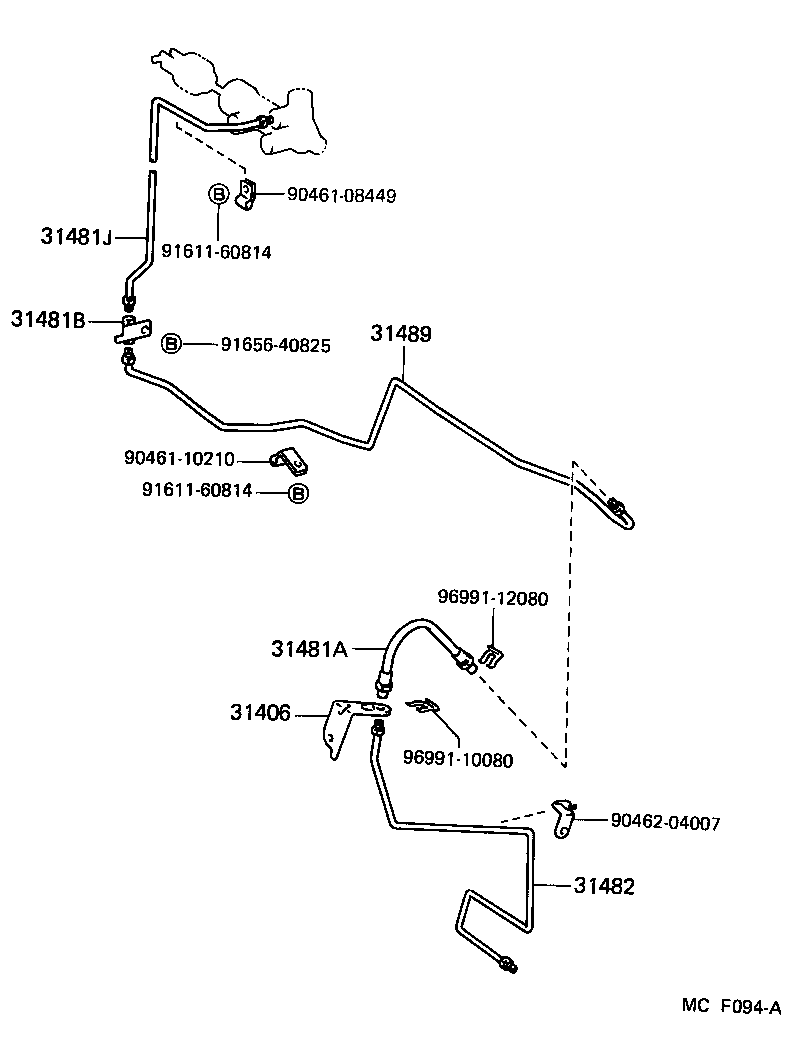

ILLUST NO. 2 OF 2(8708- )YH81
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-26011 |
YH81 |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01052 |
YH81 |
1 | ||
| 96815-50370 |
YH81 |
1 | ||
| 31481B - WAY(FOR CLUTCH TUBE) | ||||
| 90412-12018 |
LH80,YH81..5F |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-26150 |
LH80,YH81..RHD..5F |
1 | ||
| 31481-26180 |
LH80,YH81..RHD..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-25110 |
YH81 |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-26130 |
LH80,YH81..RHD..5F |
1 | ||
| Common parts | ||||
| 90461-08449 | ||||
| 90461-10210 | ||||
| 90462-04007 | ||||
| 91611-60814 | ||||
| 91656-40825 | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
