YH81R-MDBQ3 (1985)
Toyota Dyna100
Production
Aug 1985
-
Aug 1987
Engine
2Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )T3

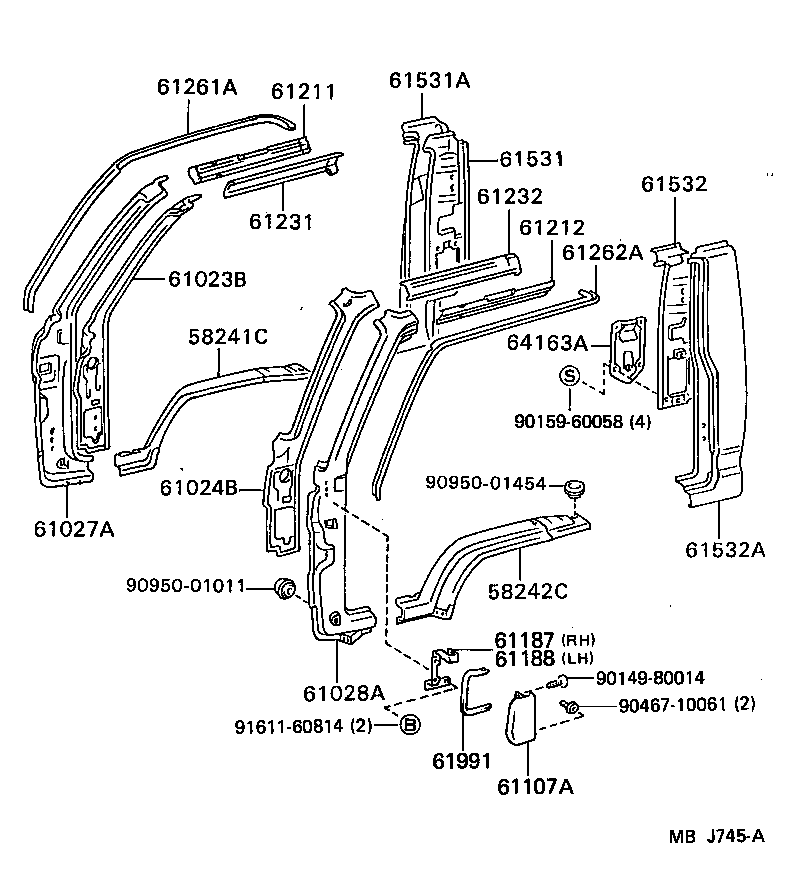

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58241C - PANEL, FLOOR SIDE, RH | ||||
| 58011-95011 |
LH80,YH8#..T3 |
1 | ||
| 58242C - PANEL, FLOOR SIDE, LH | ||||
| 58012-95012 |
LH80,YH8#..T3 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95400 |
LH80,YH8#..RHD |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95400 |
LH80,YH8#..RHD |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95400 |
LH80,YH8#..RHD W/RADIO |
1 | ||
| 61027-95401 |
LH80,YH8# |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95400 |
LH80,YH8#..ARL,GEN |
1 | ||
| 61107A - COVER SUB-ASSY, FRONT PILLAR DOOR HINGE | ||||
| 61107-95415 |
YH81;LH80..EUR;LH80,YH80..RHD RH |
1 | ||
| 61108-95416 |
LH80,YH81..ARL..IV LH |
1 | ||
| 61187 - BRACKET, FRONT PILLAR DOOR HINGE COVER, RH | ||||
| 61187-95400 |
YH81;LH80..EUR;LH80,YH80..RHD |
1 | ||
| 61188 - BRACKET, FRONT PILLAR DOOR HINGE COVER, LH | ||||
| 61188-95400 |
LH80,YH81..ARL..IV |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95403 |
LH80,YH8# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95403 |
LH80,YH8# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95405 |
LH80,YH8#..RHD..T3 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95406 |
LH80,YH8#..RHD..T3 |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61261-95404 |
LH80,YH8#..T3 |
1 | ||
| 61261-95404 |
LH80,YH8#..T3..(ARL,GEN) |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61262-95404 |
LH80,YH8#..T3 |
1 | ||
| 61262-95404 |
LH80,YH8#..T3..(ARL,GEN) |
1 | ||
| 61531 - PANEL, BACK CORNER, INNER RH | ||||
| 64015-95401 |
LH80,YH81..T3..(ARL,EUR) |
1 | ||
| 61531A - PANEL, BACK CORNER, OUTER RH | ||||
| 64103-95403 |
LH80,YH81..T3..(ARL,EUR) |
1 | ||
| 61532 - PANEL, BACK CORNER, INNER LH | ||||
| 64016-95401 |
LH80,YH81..T3..(ARL,EUR) |
1 | ||
| 61532A - PANEL, BACK CORNER, OUTER LH | ||||
| 64104-95403 |
LH80,YH81..T3..(ARL,EUR) |
1 | ||
| 61991 - PROTECTOR, FRONT PILLAR DOOR HINGE | ||||
| 61992-95400 |
LH80,YH81..ARL..IV LH |
1 | ||
| 61991-95400 |
YH81;LH80..EUR;LH80,YH80..RHD RH |
1 | ||
| 64163A - COVER, BACK CORNER, INNER | ||||
| 64163-95404 |
LH80,YH81..ARL,EUR |
2 | ||
| Common parts | ||||
| 90149-80014 | ||||
| 90159-60058 | ||||
| 90467-10061 | ||||
| 90950-01011 | ||||
| 90950-01454 | ||||
| 91611-60814 | ||||
