YH81R-MDBQ3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )1Y,2Y

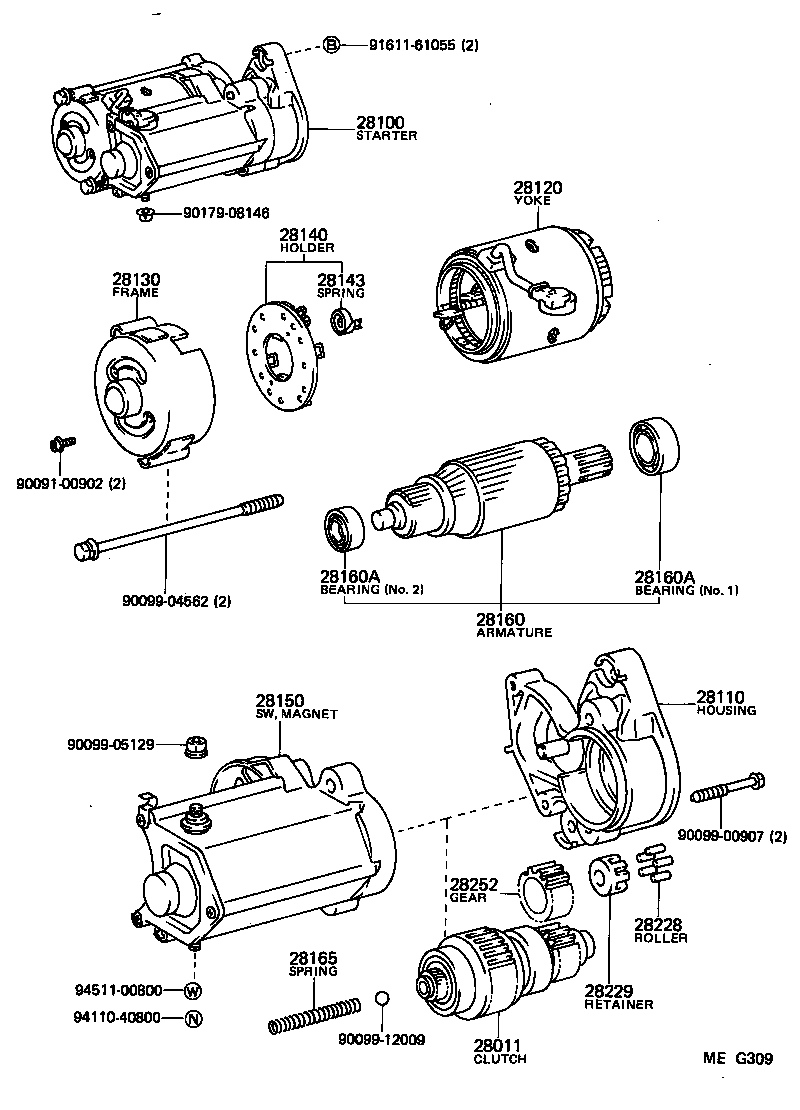

Click highlighted areas on diagram

diagram 28011 28100 28110 28120 28130 28140 28143 28150 28160 28160A 28160A 28165 28228 28229 28252 9009100902 9009900907 9009904562 9009905129 9009912009 9017908146 9161161055 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042

1Y,2Y..YH8#

12V 1.0KW

 1
28100 - STARTER ASSY
28100-72010

1Y,2Y..YH8#

12V 1.0KW,12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-72010

1Y,2Y..YH8#

12V 1.0KW

 1
28120 - YOKE ASSY, STARTER
28120-26071

1Y,2Y..YH8#

12V 1.0KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-72010

1Y,2Y..YH8#

12V 1.0KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070

1Y,2Y..YH8#

12V 1.0KW

 1
28143 - SPRING, STARTER BRUSH
90099-17112

1Y,2Y..YH8#

12V 1.0KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-34080

1Y,2Y..YH8#

12V 1.0KW

 1
28160 - ARMATURE ASSY, STARTER
28160-26070

1Y,2Y..YH8#

12V 1.0KW

 1
28160A - BEARING, STARTER ARMATURE
90099-10113

1Y,2Y..YH8#

12V 1.0KW,NO.1

 1
28253-45020

1Y,2Y..YH8#

12V 1.0KW,NO.2

 1
28160A - BEARING, STARTER ARMATURE
90099-10113

1Y,2Y..YH8#

12V 1.0KW,NO.1

 1
28253-45020

1Y,2Y..YH8#

12V 1.0KW,NO.2

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

2L,1Y,2Y..LH80,YH8#..5F

12V 1.0KW,2.0KW

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

2L,1Y,2Y..LH80,YH8#..5F

12V 1.0KW,2.0KW

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

2L,1Y,2Y..LH80,YH8#..5F

12V 1.0KW,2.0KW

 1
28252 - GEAR, STARTER IDLE
28254-45020

1Y,2Y..YH8#

12V 1.0KW

 1
Common parts
90091-00902
90099-00907
90099-04562
90099-05129
90099-12009
90179-08146
91611-61055
94110-40800
94511-00800
