YH81R-MDB3 (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

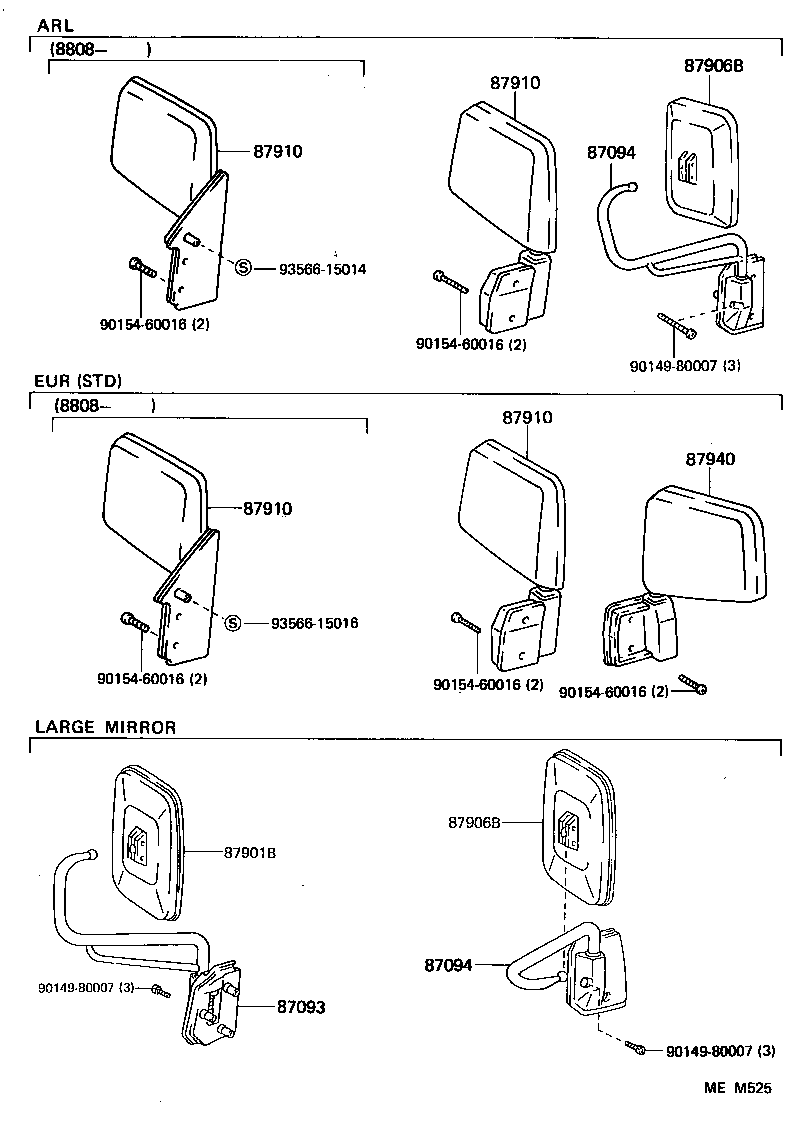

Click highlighted areas on diagram

diagram 87093 87094 87810 87810B 87827 87834 87901B 87906B 87910 87910 87940 87940 9014980007 9014980007 9015260008 9015460016 9015460016 9015460016 9015460016 9356615016 9356615016
Part # Description Qty Price
87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH
87094-26030

LH80,YH81..RHD..GEN

 1
87094-95010

LH80,YH81..RHD..GEN

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-9541801

LH80,YH81..ARL,GEN

BLACK,TRIM1#

 1
87810-9541801

LH80,YH81..ARL,GEN

BLACK,TRIM4#

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90981-11027

LH80,YH81

12V 10W

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-30010

LH80,YH81

L=43.5

 1
87828-23010

LH80,YH81

L=38.5

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
81243-95701

LH80,YH81

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87901-95A00

LH80,YH81..RHD..GEN

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95A10

LH80,YH81..RHD..GEN

 1
87910-95A10

LH80,YH81..RHD..GEN

W(DIVISION BAR)

 1
87910-95A15

LH80,YH81..RHD..GEN

 1
87910-95A10

LH80,YH81..GEN..IV

MALAYSIA SPEC OR W(DIVISION BAR)

 1
87910-95A10

LH80,YH81..RHD..GEN

W(DIVISION BAR)

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95A10

LH80,YH81..RHD..GEN

 1
87910-95A10

LH80,YH81..RHD..GEN

W(DIVISION BAR)

 1
87910-95A15

LH80,YH81..RHD..GEN

 1
87910-95A10

LH80,YH81..GEN..IV

MALAYSIA SPEC OR W(DIVISION BAR)

 1
87910-95A10

LH80,YH81..RHD..GEN

W(DIVISION BAR)

 1
Common parts
90149-80007
90152-60008
90154-60016
93566-15016

(8708- )

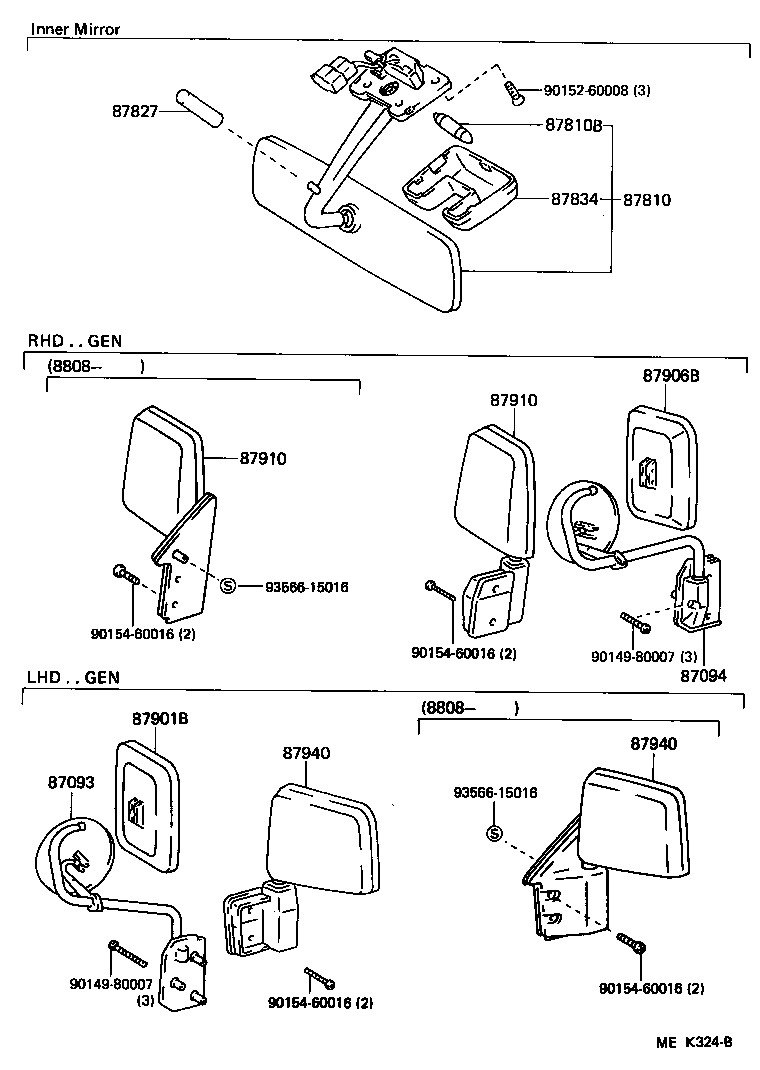

Click highlighted areas on diagram

diagram 87093 87094 87094 87901B 87906B 87906B 87910 87910 87910 87910 87940 9014980007 9014980007 9014980007 9015460016 9015460016 9015460016 9015460016 9015460016 9356615014 9356615016
Part # Description Qty Price
87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH
87094-26030

LH80,YH81..RHD..GEN

 1
87094-95010

LH80,YH81..RHD..GEN

 1
87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH
87094-26030

LH80,YH81..RHD..GEN

 1
87094-95010

LH80,YH81..RHD..GEN

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87901-95A00

LH80,YH81..RHD..GEN

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87901-95A00

LH80,YH81..RHD..GEN

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95A10

LH80,YH81..RHD..GEN

 1
87910-95A10

LH80,YH81..RHD..GEN

W(DIVISION BAR)

 1
87910-95A15

LH80,YH81..RHD..GEN

 1
87910-95A10

LH80,YH81..GEN..IV

MALAYSIA SPEC OR W(DIVISION BAR)

 1
87910-95A10

LH80,YH81..RHD..GEN

W(DIVISION BAR)

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95A10

LH80,YH81..RHD..GEN

 1
87910-95A10

LH80,YH81..RHD..GEN

W(DIVISION BAR)

 1
87910-95A15

LH80,YH81..RHD..GEN

 1
87910-95A10

LH80,YH81..GEN..IV

MALAYSIA SPEC OR W(DIVISION BAR)

 1
87910-95A10

LH80,YH81..RHD..GEN

W(DIVISION BAR)

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95A10

LH80,YH81..RHD..GEN

 1
87910-95A10

LH80,YH81..RHD..GEN

W(DIVISION BAR)

 1
87910-95A15

LH80,YH81..RHD..GEN

 1
87910-95A10

LH80,YH81..GEN..IV

MALAYSIA SPEC OR W(DIVISION BAR)

 1
87910-95A10

LH80,YH81..RHD..GEN

W(DIVISION BAR)

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95A10

LH80,YH81..RHD..GEN

 1
87910-95A10

LH80,YH81..RHD..GEN

W(DIVISION BAR)

 1
87910-95A15

LH80,YH81..RHD..GEN

 1
87910-95A10

LH80,YH81..GEN..IV

MALAYSIA SPEC OR W(DIVISION BAR)

 1
87910-95A10

LH80,YH81..RHD..GEN

W(DIVISION BAR)

 1
Common parts
90149-80007
90154-60016
93566-15014
93566-15016
