YH81R-MDB (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2Y

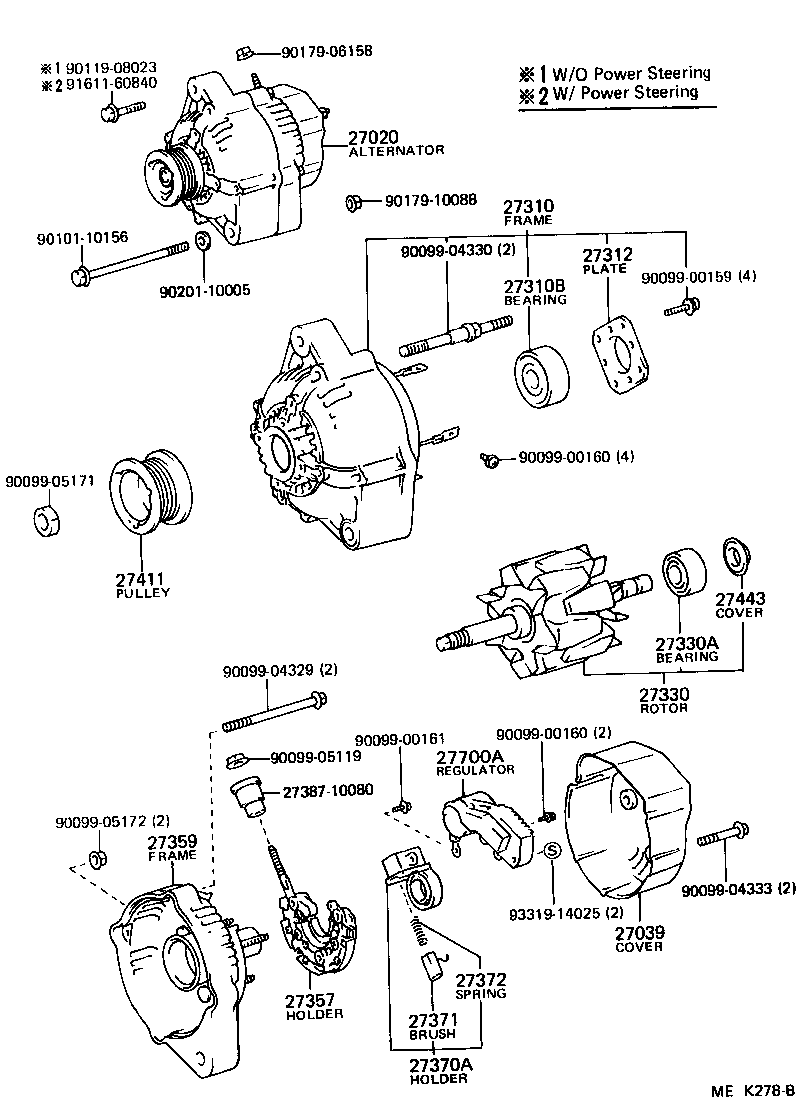

Click highlighted areas on diagram

12V 45A

diagram 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370A 27371 27372 2738710080 27411 27443 27700A 9009900159 9009900160 9009900160 9009900161 9009904329 9009904330 9009904333 9009905119 9009905171 9009905172 9010110156 9011908023 9017906158 9017910088 9020110005 9161160840 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-72111

2Y..YH81

12V 45A

 1
27060-72330

2Y..YH81

12V 45A

 1
27039 - COVER, ALTERNATOR REAR END
27039-72150

2Y..YH81

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72150

2Y..YH81

 1
27310-72151

2Y..YH81

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10170

2Y..YH81

 1
90099-10198

2Y..YH81

 1
27312 - PLATE, RETAINER
27312-72120

2Y..YH81

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72150

2Y..YH81

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10154

2Y..YH81

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-72150

2Y..YH81

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72150

2Y..YH81

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021

2Y..YH81

 1
27371 - BRUSH, ALTERNATOR
27371-63020

2Y..YH81

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

2Y..YH81

 2
27411 - PULLEY, ALTERNATOR
27411-72120

2Y..YH81

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

2Y..YH81

 1
27700A - REGULATOR ASSY, GENERATOR
27700-66030

2Y..YH81

 1
27700-10080

2Y..YH81

 1
27700-10050

2Y..YH81

 1
Common parts
27387-10080
90099-00159
90099-00160
90099-00161
90099-04329
90099-04330
90099-04333
90099-05119
90099-05171
90099-05172
90101-10156
90119-08023
90179-06158
90179-10088
90201-10005
91611-60840
93319-14025
