YH81L-MDPW (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

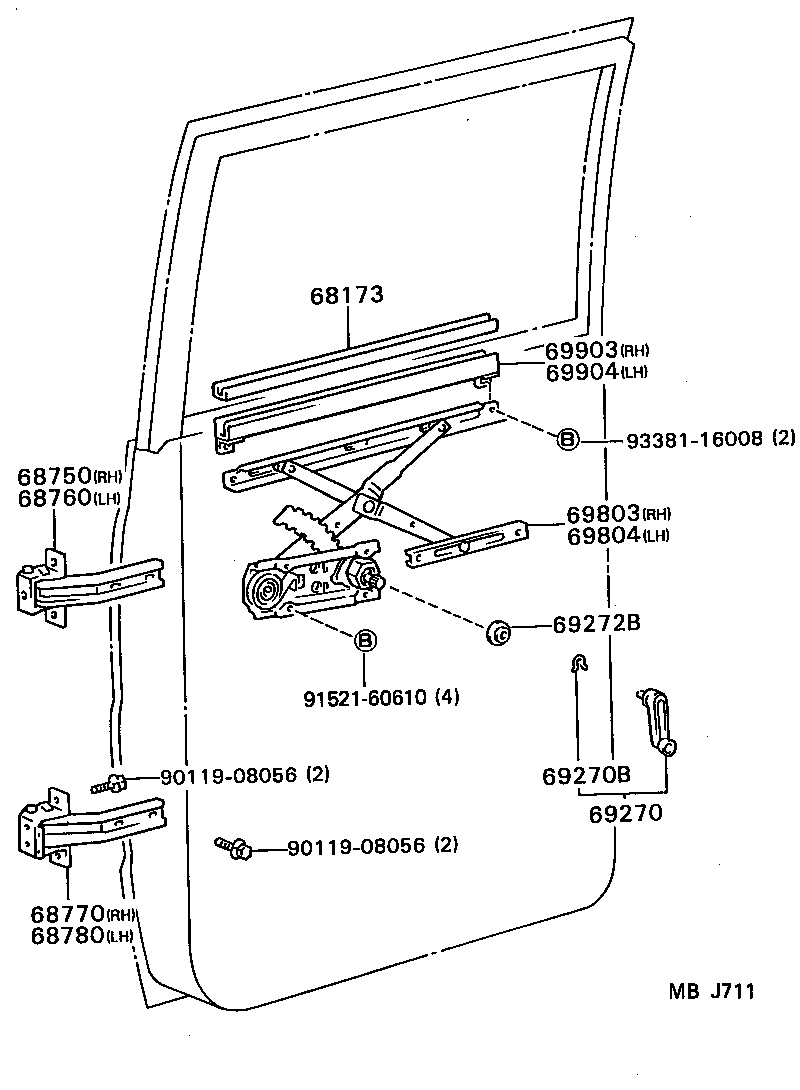

Click highlighted areas on diagram

diagram 68173 68750 68760 68770 68780 69270 69270B 69272B 69803 69804 69903 69904 9011908056 9011908056 9152160610 9338116008
Part # Description Qty Price
68173 - WEATHERSTRIP, REAR DOOR GLASS CHANNEL
69981-95701

LH80,YH8#..TW

 2
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-95400

LH80,YH8#..TW

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68750-95400

LH80,YH8#..TW

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-95400

LH80,YH8#..TW

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-95400

LH80,YH8#..TW

 1
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1004033

LH80,YH8#..TW

GRAY,SHADOW GRAY

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

LH80,YH8#..TW

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69272-3001008

LH80,YH8#..TW

NATURAL WHITE

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-95A00

LH80,YH8#..TW

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-95A00

LH80,YH8#..TW

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69901-95701

LH80,YH8#..TW

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69901-95701

LH80,YH8#..TW

 1
Common parts
90119-08056
91521-60610
93381-16008
