YH81L-MDPW (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )TW

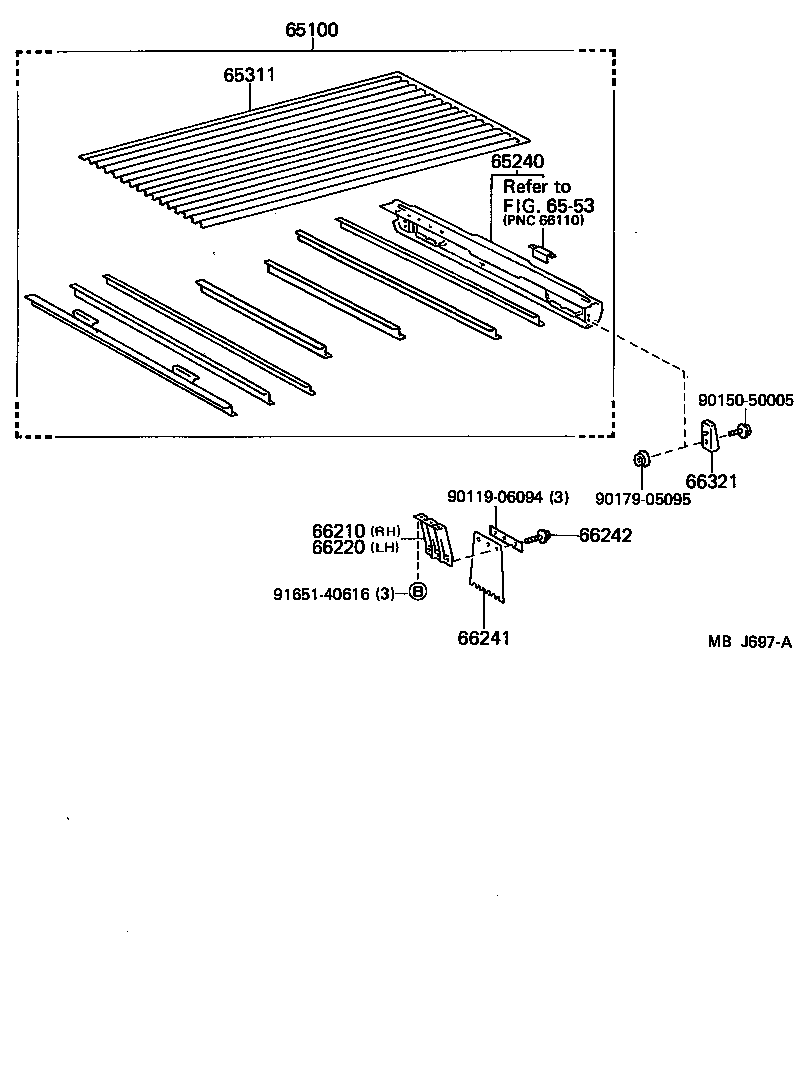

Click highlighted areas on diagram

diagram 65100 65240 65311 6553 66210 66220 66241 66242 66321 9011906094 9015050005 9017905095 9165140616
Part # Description Qty Price
65100 - FLOOR ASSY, REAR BODY
65100-95A12

LH80,YH8#..TW

 1
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-95A04

LH80,YH8#..TW

 1
65311 - PANEL, FLOOR, CENTER
65311-95A05

LH80,YH8#..TW

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66205-95A00

LH80,YH8#..TW

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66205-95A00

LH80,YH8#..TW

 1
66241 - MUDGUARD, REAR
66241-95600

LH80,YH8#

 2
66242 - PLATE, REAR MUDGUARD SET RETAINER
66242-95012

LH80,YH8#

 2
66321 - BUMPER, GATE RUBBER
66321-95406

LH80,YH8#..TW

 2
Common parts
90119-06094
90150-50005
90179-05095
91651-40616
Linked diagrams
6553
