YH81L-MDPW (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )1Y,2Y

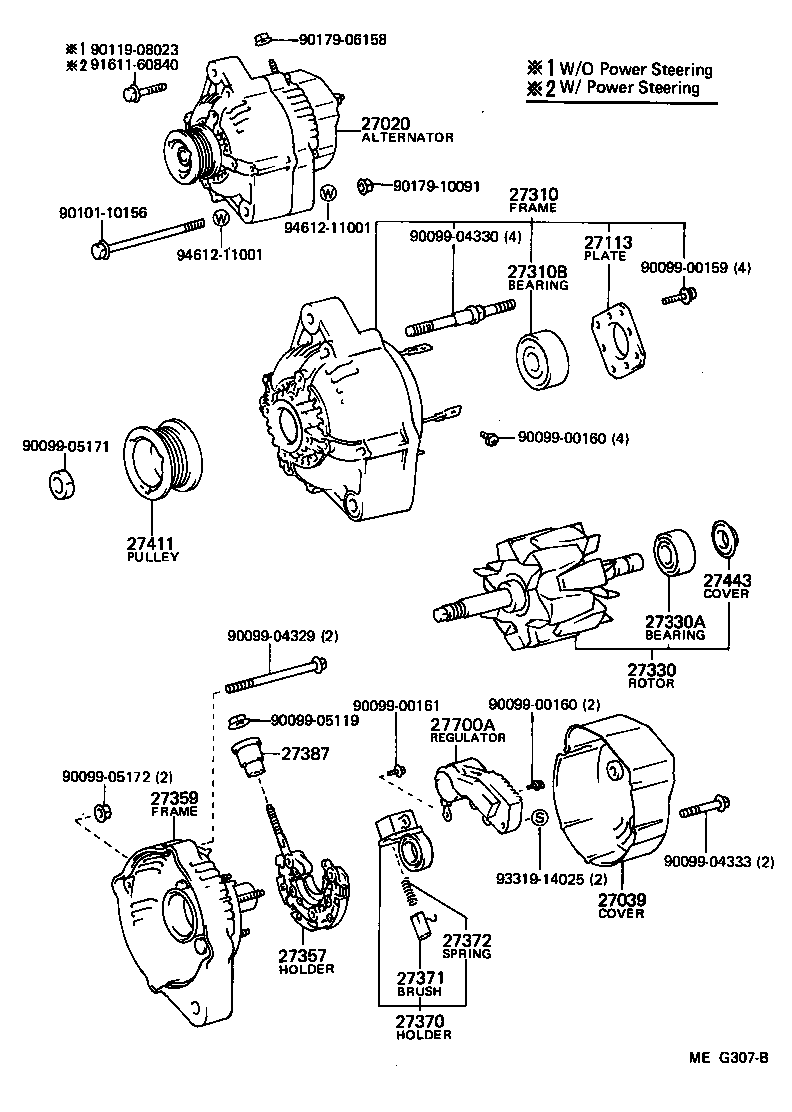

Click highlighted areas on diagram

diagram 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 27387 27411 27443 27700A 9009900159 9009900160 9009900160 9009900161 9009904329 9009904330 9009904333 9009905119 9009905171 9009905172 9010110156 9011908023 9017906158 9017910091 9161160840 9331914025 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-72080

2Y..YH81..EUR

12V 40A,12V 40A

 1
27060-72081

2Y..YH81..EUR

12V 40A,12V 40A

 1
27039 - COVER, ALTERNATOR REAR END
27039-72120

2Y..YH81..EUR

12V 40A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-72120

2Y..YH81..EUR

12V 40A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72120

2Y..YH81..EUR

12V 40A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10170

1Y,2Y..YH8#

12V 40A,45A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72120

2Y..YH81..EUR

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10154

1Y,2Y..YH8#

12V 40A,45A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-72120

2Y..YH81..EUR

12V 40A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-10050

2Y..YH81..EUR

12V 40A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-72100

1Y,2Y..YH8#

12V 40A,45A

 1
27370-63021

1Y,2Y..YH8#

12V 40A,45A

 1
27371 - BRUSH, ALTERNATOR
27371-63020

1Y,2Y..YH8#

12V 40A,45A

 1
27372 - SPRING, ALTERNATOR BRUSH
27372-72100

1Y,2Y..YH8#

12V 40A,45A

 1
27387 - INSULATOR, TERMINAL
27387-10080

1Y,2Y..YH8#

12V 40A

 1
27387-10050

1Y,2Y..YH8#

12V 40A

 1
27411 - PULLEY, ALTERNATOR
27411-72120

1Y,2Y..YH8#

12V 40A,45A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1Y,2Y..YH8#

12V 40A,45A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-10050

1Y,2Y..YH8#

12V 40A,45A

 1
Common parts
90099-00159
90099-00160
90099-00161
90099-04329
90099-04330
90099-04333
90099-05119
90099-05171
90099-05172
90101-10156
90119-08023
90179-06158
90179-10091
91611-60840
93319-14025
94612-11001
