YH81L-MDPW (1985)
Toyota Dyna100
(8508- )1Y,2Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 |
1Y,2Y..YH8# |
1 | ||
| 90116-06143 |
1Y,2Y..YH8# |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 53097-95A00 |
2Y..YH81..EUR |
1 | ||
| 53097-95A00 |
2Y..YH81..EUR |
1 | ||
| 53097-95A01 |
1Y,2Y..YH8# *ACIS |
1 | ||
| 53097-95A01 |
1Y,2Y..YH8# *ACIS |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 53097-95A00 |
2Y..YH81..EUR |
1 | ||
| 53097-95A00 |
2Y..YH81..EUR |
1 | ||
| 53097-95A01 |
1Y,2Y..YH8# *ACIS |
1 | ||
| 53097-95A01 |
1Y,2Y..YH8# *ACIS |
1 | ||
| 17710E - CABLE SUB-ASSY | ||||
| 53970-95A01 |
1Y,2Y..YH8#..LHD *ACIS |
1 | ||
| 53970-95A01 |
1Y,2Y..YH8#..LHD *ACIS |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 53709-95A03 |
1Y,2Y..YH8# |
1 | ||
| 53709-95A03 |
1Y,2Y..YH8# |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-54020 |
1Y,2Y..YH8# |
1 | ||
| 17771-54020 |
1Y,2Y..YH8# |
1 | ||
| 17780B - BRACKET SUB-ASSY, AIR CLEANER SHUTTER | ||||
| 53909-95A01 |
1Y,2Y..YH8#..LHD *ACIS |
1 | ||
| 53909-95A01 |
1Y,2Y..YH8#..LHD *ACIS |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-71020 |
1Y,2Y..YH8# |
1 | ||
| 17805-71020 |
1Y,2Y..YH8# |
1 | ||
| 17805A - GASKET & WASHER, SEAL | ||||
| 90210-09026 |
1Y,2Y..YH8# |
1 | ||
| 90210-09026 |
1Y,2Y..YH8# |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17806-71010 |
2Y..YH81..EUR W/HOT AIR INTAKE |
1 | ||
| 17806-71010 |
2Y..YH81..EUR W/HOT AIR INTAKE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
1Y,2Y..YH8# |
1 | ||
| 17848-35010 |
1Y,2Y..YH8# |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-54060 |
1Y,2Y..YH8# |
1 | ||
| 17805-54060 |
1Y,2Y..YH8# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-71070 |
1Y,2Y..YH8# |
1 | ||
| 17881-71070 |
1Y,2Y..YH8# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-71070 |
1Y,2Y..YH8# |
1 | ||
| 17881-71070 |
1Y,2Y..YH8# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
1Y,2Y..YH8# AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
1Y,2Y..YH8# AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
1Y,2Y..YH8# CARBURETOR SIDE |
1 | ||
| 96111-10750 |
1Y,2Y..YH8# CARBURETOR SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
1Y,2Y..YH8# AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
1Y,2Y..YH8# AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
1Y,2Y..YH8# CARBURETOR SIDE |
1 | ||
| 96111-10750 |
1Y,2Y..YH8# CARBURETOR SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
1Y,2Y..YH8# AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
1Y,2Y..YH8# AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
1Y,2Y..YH8# CARBURETOR SIDE |
1 | ||
| 96111-10750 |
1Y,2Y..YH8# CARBURETOR SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-31070 |
1Y,2Y..YH8# |
1 | ||
| 17882-31070 |
1Y,2Y..YH8# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
1Y,2Y..YH8# |
2 | ||
| 96111-10750 |
1Y,2Y..YH8# |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
1Y,2Y..YH8# |
2 | ||
| 96111-10750 |
1Y,2Y..YH8# |
2 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-95A00 |
1Y,2Y..YH8# |
1 | ||
| 17883-95A00 |
1Y,2Y..YH8# |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10750 |
1Y,2Y..YH8# |
2 | ||
| 96111-10750 |
1Y,2Y..YH8# |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10750 |
1Y,2Y..YH8# |
2 | ||
| 96111-10750 |
1Y,2Y..YH8# |
2 | ||
| 17885A - HOSE, AIR CLEANER, NO.5 | ||||
| 17882-71040 |
2Y..YH81..EUR W/HOT AIR INTAKE |
1 | ||
| 17882-71040 |
2Y..YH81..EUR W/HOT AIR INTAKE |
1 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 96111-10460 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 90460-47036 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 90460-47036 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 96111-10460 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 90460-47036 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 90460-47036 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 17886 - HOSE, AIR CLEANER, NO.6 | ||||
| 17881-74040 |
2Y..YH81..EUR W/HOT AIR INTAKE |
1 | ||
| 17881-74040 |
2Y..YH81..EUR W/HOT AIR INTAKE |
1 | ||
| 17886A - CLAMP(FOR AIR CLEANER HOSE, NO.6) | ||||
| 96111-10460 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 90460-47036 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 90460-47036 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 17886A - CLAMP(FOR AIR CLEANER HOSE, NO.6) | ||||
| 96111-10460 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 90460-47036 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 90460-47036 |
2Y..YH81..EUR W/HOT AIR INTAKE |
2 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17895-71030 |
2Y..YH81..EUR W/HOT AIR INTAKE |
1 | ||
| 17895-71030 |
2Y..YH81..EUR W/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90179-06012 | ||||
| 90202-05129 | ||||
| 90387-08016 | ||||
| 90468-14001 | ||||
| 90480-16005 | ||||
| 90959-01246 | ||||
| 91615-60820 | ||||
| 91621-40816 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91656-40820 | ||||
| 91665-40616 | ||||
(8508- )1Y,2Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

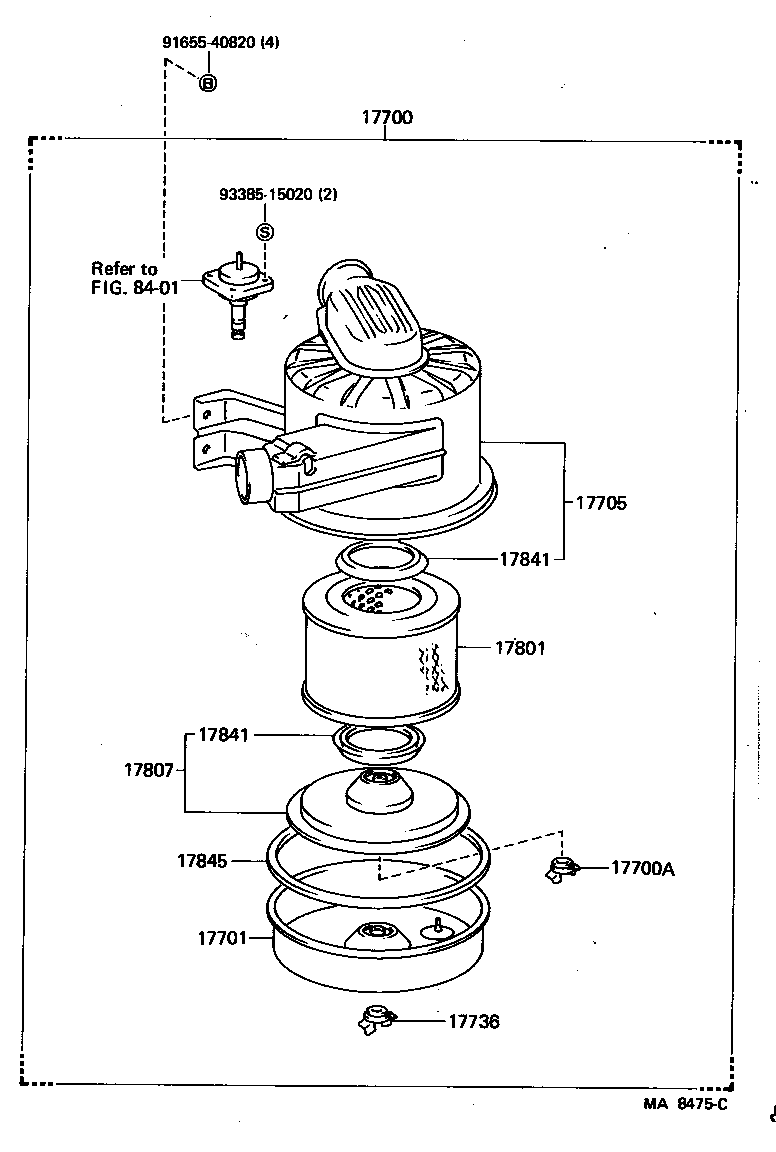

| 17700 - CLEANER ASSY, AIR | ||||
| 17700-71080 |
2Y..YH81..EUR |
1 | ||
| 17700-71080 |
2Y..YH81..EUR |
1 | ||
| 17700-71120 |
2Y..YH81..EUR W/HOT AIR INTAKE |
1 | ||
| 17700-71120 |
2Y..YH81..EUR W/HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
1Y,2Y..YH8# |
1 | ||
| 90175-08008 |
1Y,2Y..YH8# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-54200 |
1Y,2Y..YH8# |
1 | ||
| 17701-54200 |
1Y,2Y..YH8# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-71050 |
2Y..YH81..EUR W/HOT AIR INTAKE |
1 | ||
| 17705-71050 |
2Y..YH81..EUR W/HOT AIR INTAKE |
1 | ||
| 17705-71070 |
2Y..YH81..EUR |
1 | ||
| 17705-71070 |
2Y..YH81..EUR |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
1Y,2Y..YH8# |
1 | ||
| 90175-06003 |
1Y,2Y..YH8# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31060 |
2Y..YH81..EUR |
1 | ||
| 17801-31060 |
2Y..YH81..EUR |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-54010 |
1Y,2Y..YH8# |
1 | ||
| 17807-54010 |
1Y,2Y..YH8# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
1Y,2Y..YH8# |
2 | ||
| 17841-54010 |
1Y,2Y..YH8# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
1Y,2Y..YH8# |
2 | ||
| 17841-54010 |
1Y,2Y..YH8# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-54010 |
1Y,2Y..YH8# |
1 | ||
| 17845-54010 |
1Y,2Y..YH8# |
1 | ||
| Common parts | ||||
| 91655-40820 | ||||
| 93385-15020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
