YH81L-MDPW (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )1Y,2Y

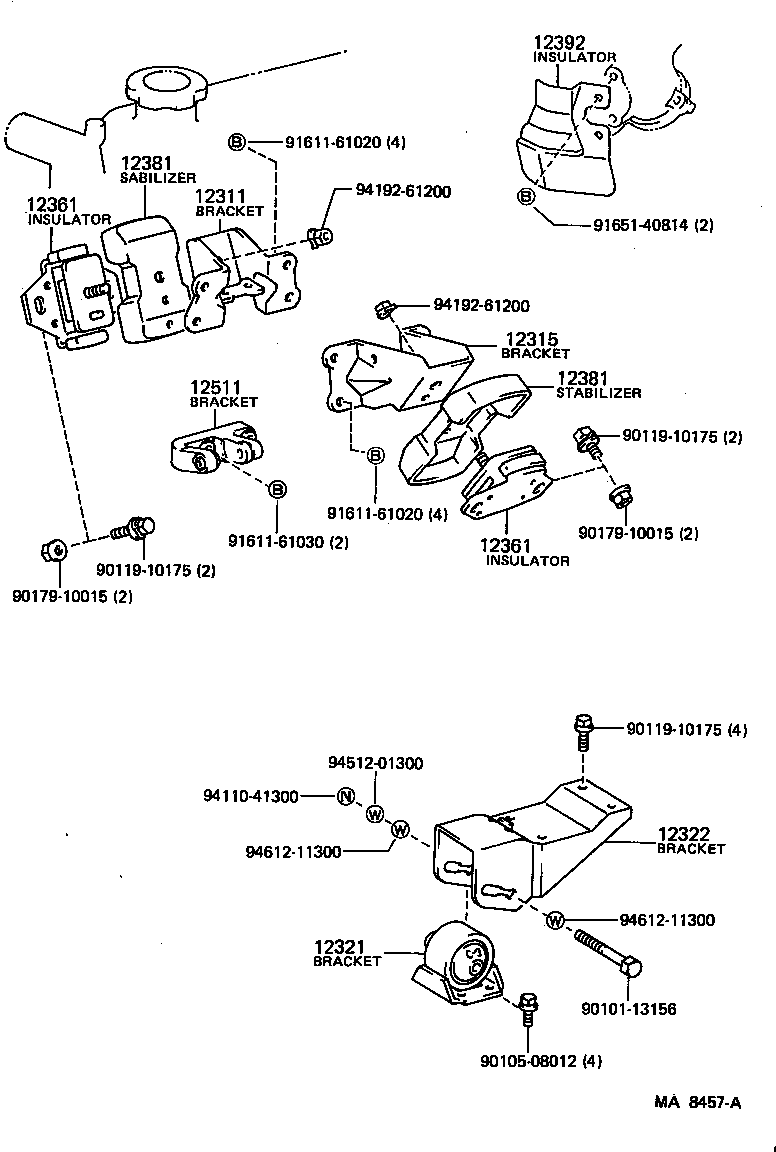

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12361 12361 12381 12381 12392 12511 9010113156 9010508012 9011910175 9011910175 9011910175 9017910015 9017910015 9161161020 9161161020 9161161030 9165140814 9411041300 9419261200 9419261200 9451201300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

1Y,2Y..YH8#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

1Y,2Y..YH8#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-72010

1Y,2Y..YH8#

 1
12303-54020

1Y,2Y..YH8#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54050

1Y,2Y..YH8#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

1Y,2Y..YH8#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

1Y,2Y..YH8#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

1Y,2Y..YH8#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

1Y,2Y..YH8#

 2
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-72010

1Y,2Y..YH8#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-73011

1Y,2Y..YH8#

 1
Common parts
90101-13156
90105-08012
90119-10175
90179-10015
91611-61020
91611-61030
91651-40814
94110-41300
94192-61200
94512-01300
94612-11300
