YH81L-MDPW (1987)

Toyota Dyna100

Production Aug 1987 - Mar 1992
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

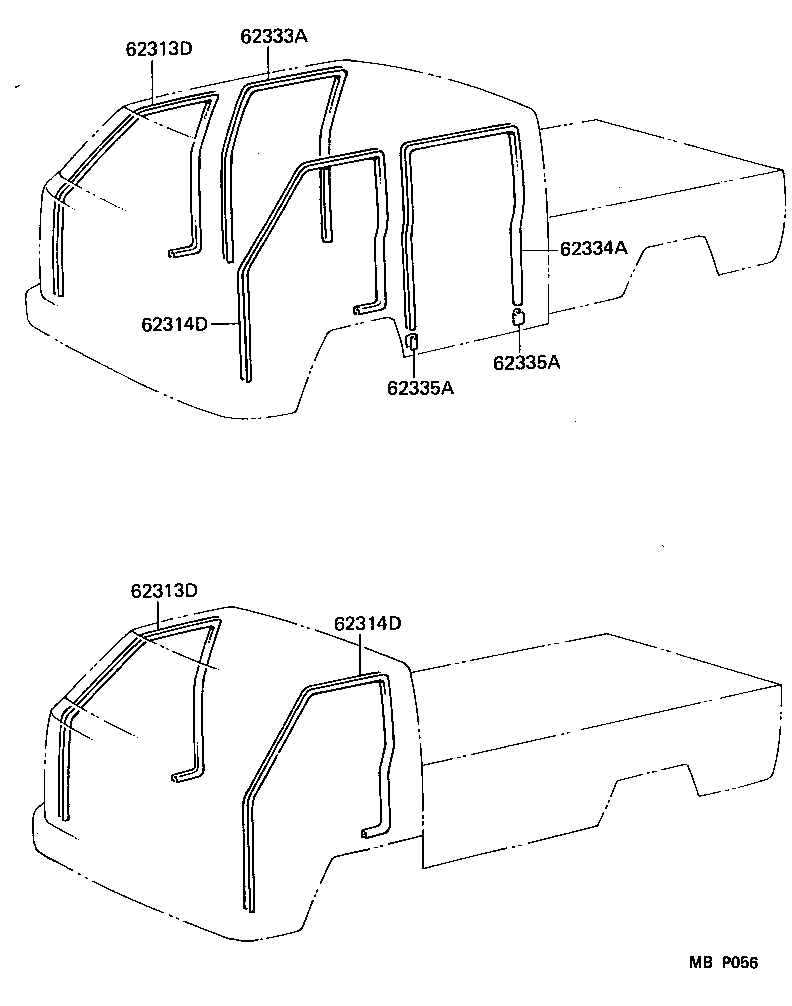

Click highlighted areas on diagram

diagram 62313D 62313D 62314D 62314D 62333A 62334A 62335A 62335A
Part # Description Qty Price
62313D - TRIM, FRONT DOOR OPENING, RH
62313-9540406

LH80,YH81

BROWN,TRIM4#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-9540406

LH80,YH81

BROWN,TRIM4#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-9540406

LH80,YH81

BROWN,TRIM4#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-9540406

LH80,YH81

BROWN,TRIM4#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-9540006

LH80,YH81..TW

BROWN,TRIM4#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62333-9540006

LH80,YH81..TW

BROWN,TRIM4#

 1
62335A - COVER, REAR DOOR OPENING TRIM
62335-9260006

LH80,YH81..TW

BROWN,TRIM4#

 4
62335A - COVER, REAR DOOR OPENING TRIM
62335-9260006

LH80,YH81..TW

BROWN,TRIM4#

 4
