YH81L-MDPW (1987)

Toyota Dyna100

Production Aug 1987 - Mar 1992
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2Y

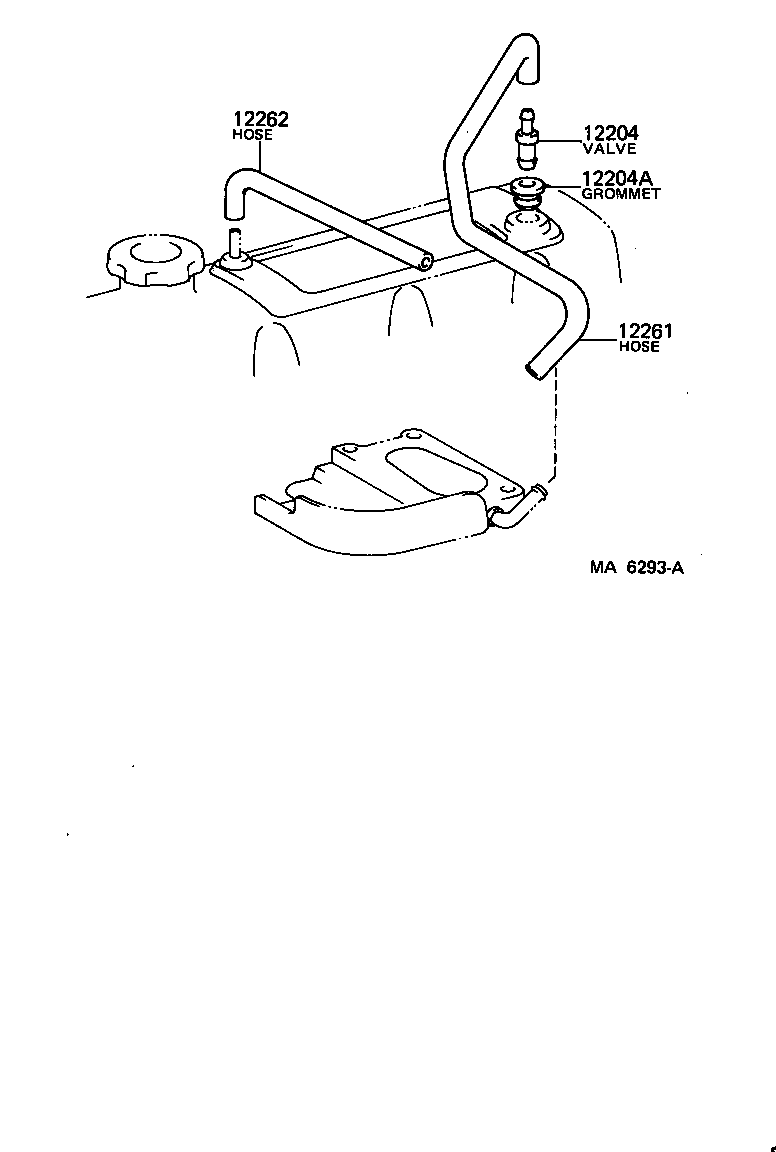

Click highlighted areas on diagram

diagram 12204 12204A 12261 12262
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-15022

2Y..YH81

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

2Y..YH81

 1
12261 - HOSE, VENTILATION
12261-72020

2Y..YH81

 1
12262 - HOSE, VENTILATION, NO.2
12262-71010

2Y..YH81

 1
