YH81L-MDP (1987)

Toyota Dyna100

Production Aug 1987 - Mar 1992
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

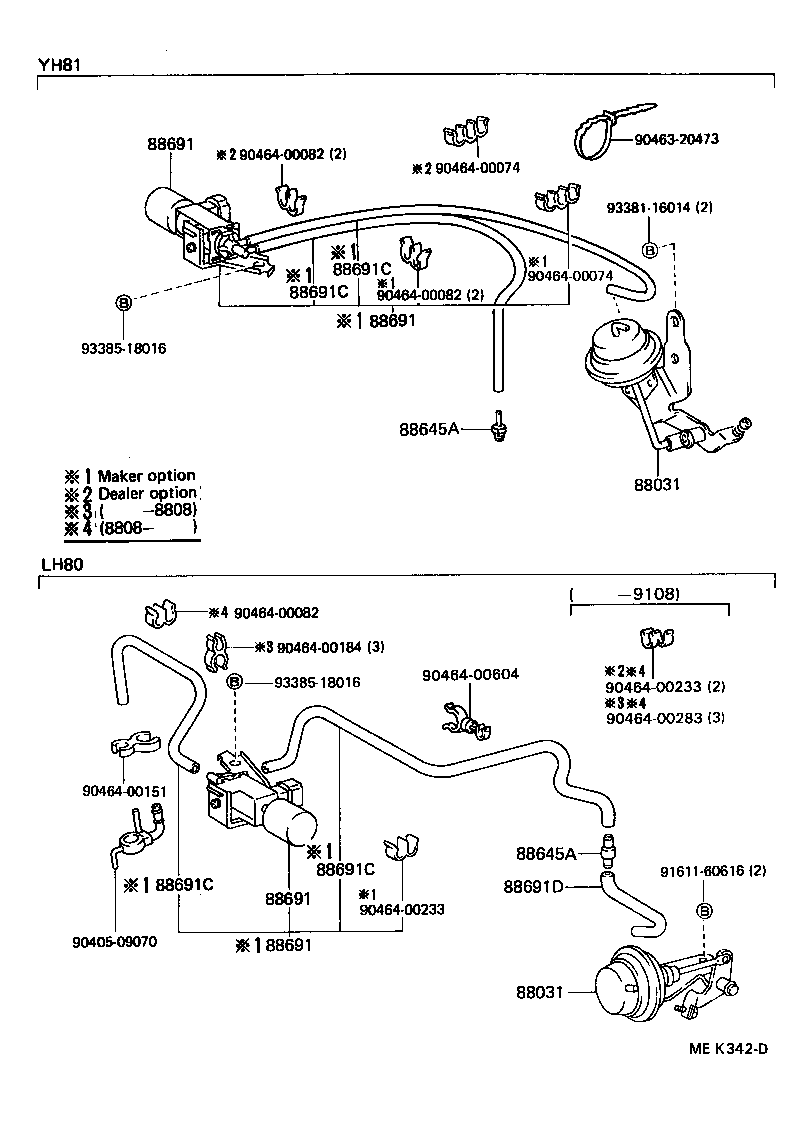

Click highlighted areas on diagram

diagram 88031 88031 88645A 88645A 88691 88691 88691 88691 88691C 88691C 88691C 88691C 88691D 9040509070 9046320473 9046400074 9046400074 9046400082 9046400082 9046400082 9046400151 9046400184 9046400233 9046400233 9046400283 9046400604 9161160616 9338116014 9338518016 9338518016
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-28010

YH81..ARL,GEN

 1
88031 - ACTUATOR SET, IDLE-UP
88031-28010

YH81..ARL,GEN

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51093

YH81..ARL,GEN

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51093

YH81..ARL,GEN

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95022

YH81..LHD..GEN

MAKER OPTION

 1
88690-95024

YH81..LHD..GEN

DEALER OPTION

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95022

YH81..LHD..GEN

MAKER OPTION

 1
88690-95024

YH81..LHD..GEN

DEALER OPTION

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95022

YH81..LHD..GEN

MAKER OPTION

 1
88690-95024

YH81..LHD..GEN

DEALER OPTION

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95022

YH81..LHD..GEN

MAKER OPTION

 1
88690-95024

YH81..LHD..GEN

DEALER OPTION

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

YH81..GEN

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

YH81..GEN

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

YH81..GEN

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

YH81..GEN

*H,L=300

 1
Common parts
90405-09070
90463-20473
90464-00074
90464-00082
90464-00151
90464-00184
90464-00233
90464-00283
90464-00604
91611-60616
93381-16014
93385-18016
