YH81L-MDP (1987)

Toyota Dyna100

Production Aug 1987 - Mar 1992
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

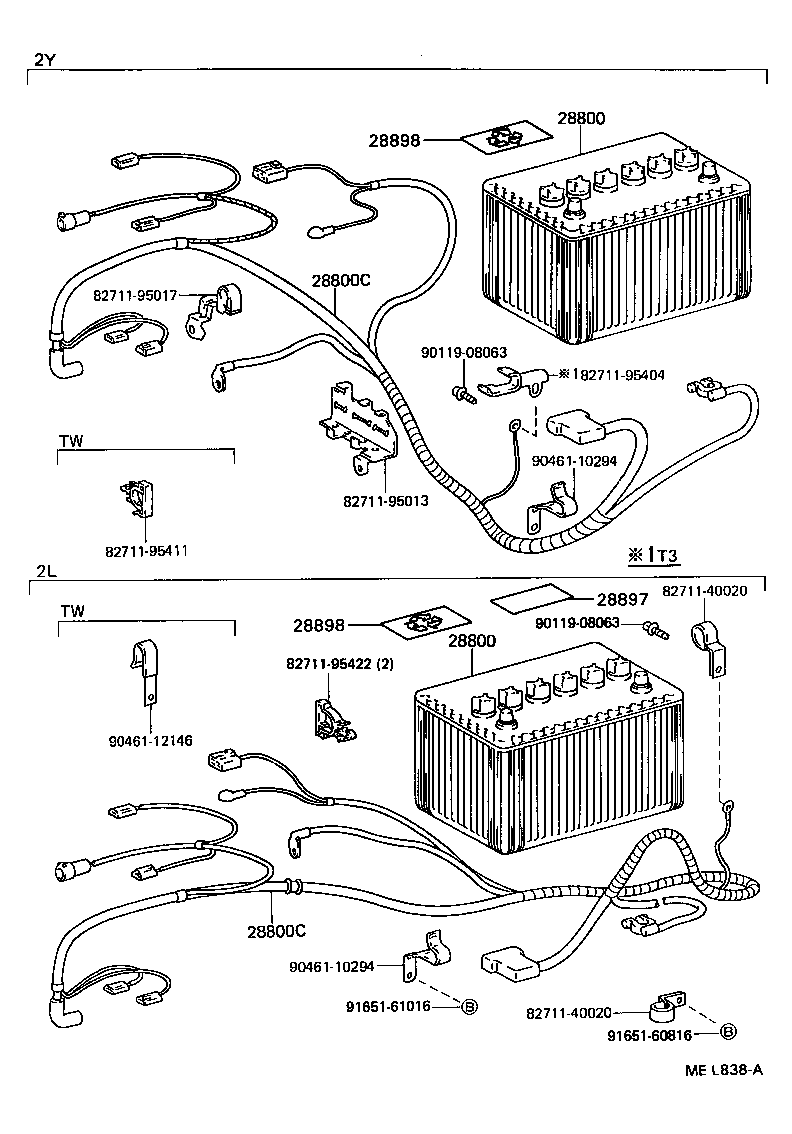

Click highlighted areas on diagram

diagram 28800 28800 28800C 28800C 28897 28898 28898 8271140020 8271140020 8271195013 8271195017 8271195404 8271195411 8271195422 9011908063 9011908063 9046110294 9046110294 9046112146 9165160816 9165161016
Part # Description Qty Price
28800 - BATTERY
28800-12060

2Y..YH81..GEN

50D20R

 1
28800-72010

2Y..YH81..GEN

34B19L(S)

 1
28800 - BATTERY
28800-12060

2Y..YH81..GEN

50D20R

 1
28800-72010

2Y..YH81..GEN

34B19L(S)

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95A29

2Y..YH81..TW..GEN

 1
82021-95A30

2Y..YH81..TW..GEN

W(50D20R BATTERY)

 1
82021-95A82

2Y..YH81..TW..GEN

 1
82021-95A84

2Y..YH81..TW..GEN

W(50D20R BATTERY)

 1
82021-26020

2Y..YH81..TW..GEN

 1
82021-26050

2Y..YH81..TW..GEN

W(50D20R BATTERY)

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95A29

2Y..YH81..TW..GEN

 1
82021-95A30

2Y..YH81..TW..GEN

W(50D20R BATTERY)

 1
82021-95A82

2Y..YH81..TW..GEN

 1
82021-95A84

2Y..YH81..TW..GEN

W(50D20R BATTERY)

 1
82021-26020

2Y..YH81..TW..GEN

 1
82021-26050

2Y..YH81..TW..GEN

W(50D20R BATTERY)

 1
Common parts
82711-40020
82711-95013
82711-95017
82711-95404
82711-95411
82711-95422
90119-08063
90461-10294
90461-12146
91651-60816
91651-61016
