YH81L-MDP (1987)
Toyota Dyna100
Production
Aug 1987
-
Mar 1992
Engine
2Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )YH81..GEN

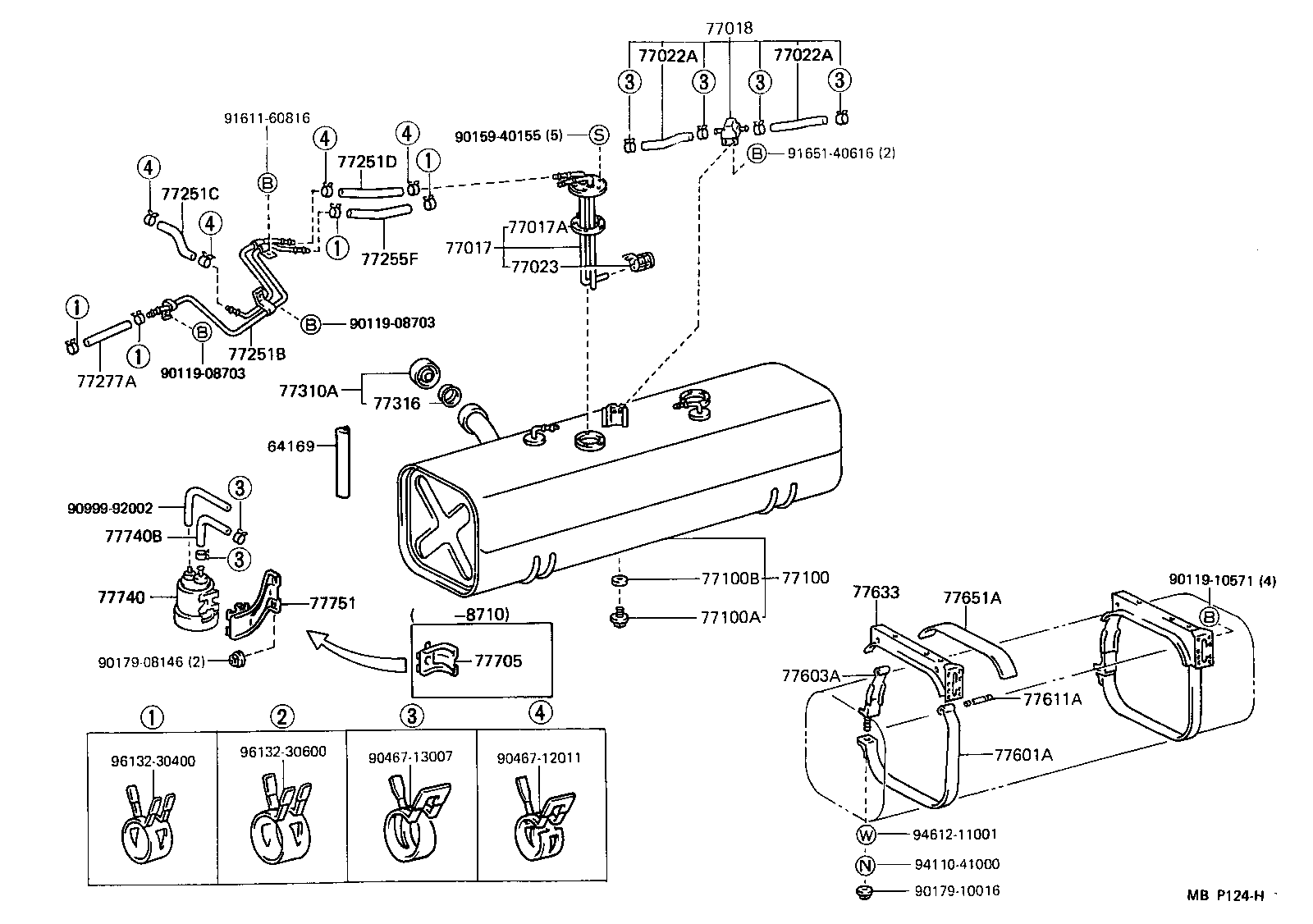

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64169 - PROTECTOR, FUEL INLET | ||||
| 64169-95A01 |
LH80,YH81..TW |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-26110 |
YH81 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14020 |
LH80,YH81 |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-25110 |
LH80..RHD;YH81..GEN |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
LH80,YH81 L=200,ID=8 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
LH80,YH81 L=200,ID=8 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-14030 |
YH81 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-26420 |
LH80,YH81..LHD..TW |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
LH80,YH81 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LH80,YH81 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-26050 |
YH81..EUR,GEN |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-26030 |
YH81 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
YH81 *H,L=200 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04020 |
YH81 L=200 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-11004 |
YH81 L=280 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-60051 |
YH81..LHD |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-27010 |
LH80,YH81 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
LH80,YH81 |
2 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26030 |
LH80,YH81 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
LH80,YH81 |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25090 |
LH80,YH81 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26040 |
LH80,YH81 |
2 | ||
| 77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER | ||||
| 77705-26021 |
YH81..EUR,GEN |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-26060 |
YH81..EUR,GEN |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 90447-14048 |
YH81 |
1 | ||
| Common parts | ||||
| 90119-08703 | ||||
| 90119-10571 | ||||
| 90159-40155 | ||||
| 90179-08146 | ||||
| 90179-10016 | ||||
| 90467-12011 | ||||
| 90467-13007 | ||||
| 90999-92002 | ||||
| 91611-60816 | ||||
| 91651-40616 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
