YH81L-MDP (1987)

Toyota Dyna100

Production Aug 1987 - Mar 1992
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )LHD

Click highlighted areas on diagram

diagram 58936A 71012S 71013S 71014S 71071S 71072S 71073S 71074S 71319A 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71709B 71812C 71816A 71910A 71910A 71910A 72090 72120 72520 9011906214 9011908079 9011908079 9011908079 9011908079 9011908086 9011908469 9011910116 9014950039 9016840043 9017908039 9017908039 9038612018 9046818071 9046818071 9046818071 9052308001 9053018003 9053018003 9054006006 9161161020 9321056020 9356055016 9356055016
Part # Description Qty Price
58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-9570006

LH80,YH81

DARK BROWN,TRIM4#

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-95412

LH80,YH81..LHD

 1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-9541601

LH80,YH81..LHD

BLACK,TRIM4#

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-95422

LH80,YH81..LHD

W(HEADREST)

 1
71014-95422

LH80,YH81..EUR..IV;YH81..LHD..T3..GEN;LH80,YH81..LHD..TW..CBU

W(HEADREST)

 1
71014-95423

LH80,YH81..LHD

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9548206

YH81..LHD..GEN

FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#

 1
71071-9547706

YH81..LHD..GEN

CHINA SPEC & W(HEADREST),BROWN,TRIM4#

 1
71071-95B0406

YH81..LHD..GEN

CHINA SPEC & W(HEADREST),BROWN,TRIM4#

 1
71071-95B0506

YH81..LHD..GEN

FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-95B0906

YH81..TW..GEN

CHINA SPEC & W(HEADREST),BROWN,TRIM4#

 1
71072-37040B1

YH81..TW..GEN

CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#

 1
71072-95B2006

YH81..TW..GEN

FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#

 1
71072-37030B1

YH81..TW..GEN

CHINA SPEC & W(HEADREST),GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-95B0306

YH81..LHD..GEN

CHINA SPEC & W(HEADREST),BROWN,TRIM4#

 1
71073-95B0506

YH81..LHD..GEN

FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-95B6706

YH81..TW..GEN

FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#

 1
71074-95B3606

YH81..TW..GEN

BROWN,TRIM4#

 1
71073-9548106

YH81..TW..GEN

W(HEADREST),BROWN,TRIM4#

 1
71073-37010B1

YH81..TW..GEN

W(HEADREST),GRAY,TRIM1#

 1
71074-37030B1

YH81..TW..GEN

CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#

 1
71074-37020B1

YH81..TW..GEN

GRAY,TRIM1#

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95404

LH80,YH81

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-9540006

LH80,YH81

BROWN,TRIM4#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9546606

YH81..LHD..GEN

CHINA SPEC & W(HEADREST),BROWN,TRIM4#

 1
71410-9547306

YH81..LHD..GEN

FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#

 1
71410-9547106

YH81..LHD..GEN

FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#

 1
71410-9546706

YH81..LHD..GEN

CHINA SPEC & W(HEADREST),BROWN,TRIM4#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-9548506

YH81..TW..GEN

CHINA SPEC & W(HEADREST),BROWN,TRIM4#

 1
71420-95B1006

YH81..TW..GEN

FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#

 1
71420-37040B0

YH81..TW..GEN

CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#

 1
71420-37030B1

YH81..TW..GEN

CHINA SPEC & W(HEADREST),GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9547406

YH81..LHD..GEN

CHINA SPEC & W(HEADREST),BROWN,TRIM4#

 1
71430-9547606

YH81..LHD..GEN

FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-95B3106

YH81..TW..GEN

BROWN,TRIM4#

 1
71440-95B3006

YH81..TW..GEN

FABRIC(FRAME RESISTING) & W(HEADREST),BROWN,TRIM4#

 1
71440-95B2806

YH81..TW..GEN

W(HEADREST),BROWN,TRIM4#

 1
71440-26130B0

YH81..TW..GEN

GRAY,TRIM1#

 1
71440-26140B0

YH81..TW..GEN

W(HEADREST),GRAY,TRIM1#

 1
71440-26150B0

YH81..TW..GEN

CHINA SPEC & W(FABRIC SEAT & HEADREST),GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-95400

LH80,YH81..LHD

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-95400

YH81..LHD..GEN

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71552-95403

LH80,YH81..LHD

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-95404

LH80,YH81..LHD

W(HEADREST)

 1
71551-95404

LH80,YH81..EUR..IV;YH81..LHD..T3..GEN;LH80,YH81..LHD..TW..CBU

W(HEADREST)

 1
71551-95405

LH80,YH81..LHD

 1
71812C - COVER, RECLINING ADJUSTER, LH
71812-95J0016

LH80,YH81..LHD

BROWN,TRIM4#

 1
71816A - COVER, FRONT SEAT CUSHION HINGE, LH
71816-95J0016

LH80,YH81..LHD

BROWN,TRIM4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-9260306

YH81..TW;LH80..TW..IV

BROWN,TRIM4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-9260306

YH81..TW;LH80..TW..IV

BROWN,TRIM4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-9260306

YH81..TW;LH80..TW..IV

BROWN,TRIM4#

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-9540006

LH80,YH81

BROWN,TRIM4#

 1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-95A00

LH80,YH81..LHD

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-95A0506

LH80,YH81..LHD

BROWN,TRIM4#

 1
Common parts
90119-06214
90119-08079
90119-08086
90119-08469
90119-10116
90149-50039
90168-40043
90179-08039
90386-12018
90468-18071
90523-08001
90530-18003
90540-06006
91611-61020
93210-56020
93560-55016

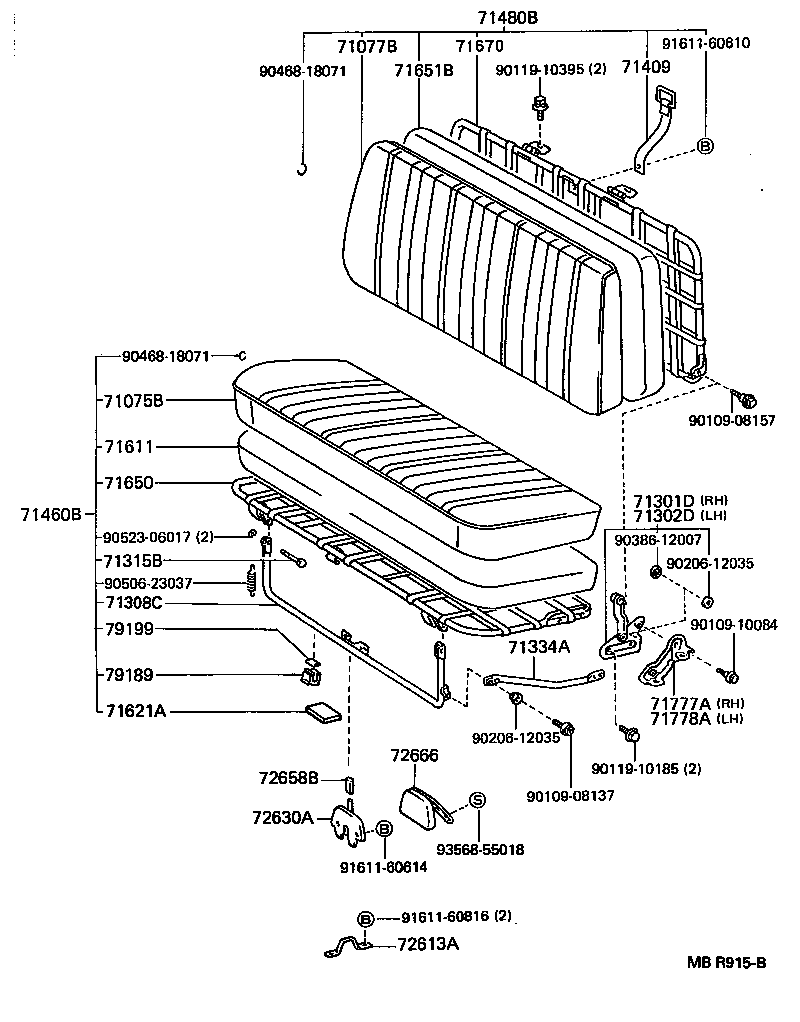

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 71075B 71077B 71301D 71302D 71308C 71315B 71334A 71409 71460B 71480B 71611 71621A 71650 71651B 71670 71777A 71778A 72613A 72630A 72658B 72666 79189 79199 9010908137 9010908157 9010910084 9011910185 9011910395 9020612035 9020612035 9038612007 9046818071 9046818071 9050623037 9052306017 9161160610 9161160614 9161160816 9356855018
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-37010B1

YH81..TW..GEN

GRAY,TRIM1#

 1
71065-9540006

YH81..TW..GEN

BROWN,TRIM4#

 1
71065-9501206

YH81..TW..GEN

FABRIC(FRAME RESISTING),BROWN,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-9540906

YH81..TW..GEN

FABRIC(FRAME RESISTING),BROWN,TRIM4#

 1
71077-9540706

YH81..TW..GEN

BROWN,TRIM4#

 1
71077-37010B2

YH81..TW..GEN

GRAY,TRIM1#

 1
71301D - HINGE SUB-ASSY, REAR SEAT, RH
71301-95401

LH80,YH81..TW

 1
71302D - HINGE SUB-ASSY, REAR SEAT, LH
71302-95401

LH80,YH81..TW

 1
71308C - LEG SUB-ASSY, REAR SEAT, FRONT
71308-95400

YH81..TW..GEN

 1
71315B - PIN, REAR SEAT HINGE
71315-95011

YH81..TW..GEN

 2
71334A - STOPPER, REAR SEAT LEG
71334-95400

LH80,YH81..TW

 1
71409 - STOPPER SUB-ASSY, REAR SEAT BACK
71409-95A31

LH80,YH81..TW

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-37030B1

YH81..TW..GEN

W(FABRIC SEAT),GRAY,TRIM1#

 1
71460-37010B1

YH81..TW..GEN

GRAY,TRIM1#

 1
71460-9541306

YH81..TW..GEN

BROWN,TRIM4#

 1
71460-9501706

YH81..TW..GEN

FABRIC(FLAME RESISTING),BROWN,TRIM4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-9540706

YH81..TW..GEN

BROWN,TRIM4#

 1
71480-37010B1

YH81..TW..GEN

GRAY,TRIM1#

 1
71480-9540906

YH81..TW..GEN

FABRIC(FLAME RESISTING),BROWN,TRIM4#

 1
71611 - PAD, REAR SEAT CUSHION
71611-95401

LH80,YH81..TW

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-95404

LH80,YH81..TW

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-95400

LH80,YH81..TW

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-95402

LH80,YH81..TW

 1
71777A - PLATE, REAR SIDE SEAT HINGE, LOWER RH
71777-95400

LH80,YH81..TW

 1
71778A - PLATE, REAR SIDE SEAT HINGE, LOWER LH
71778-95400

LH80,YH81..TW

 1
79189 - STOPPER, NO.1 SEAT LEG
79189-95J00

YH81..TW..GEN

 2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00

YH81..TW..GEN

 2
Common parts
90109-08137
90109-08157
90109-10084
90119-10185
90119-10395
90206-12035
90386-12007
90468-18071
90506-23037
90523-06017
91611-60610
91611-60614
91611-60816
93568-55018
