YH81L-MDP (1987)

Toyota Dyna100

Production Aug 1987 - Mar 1992
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )TW

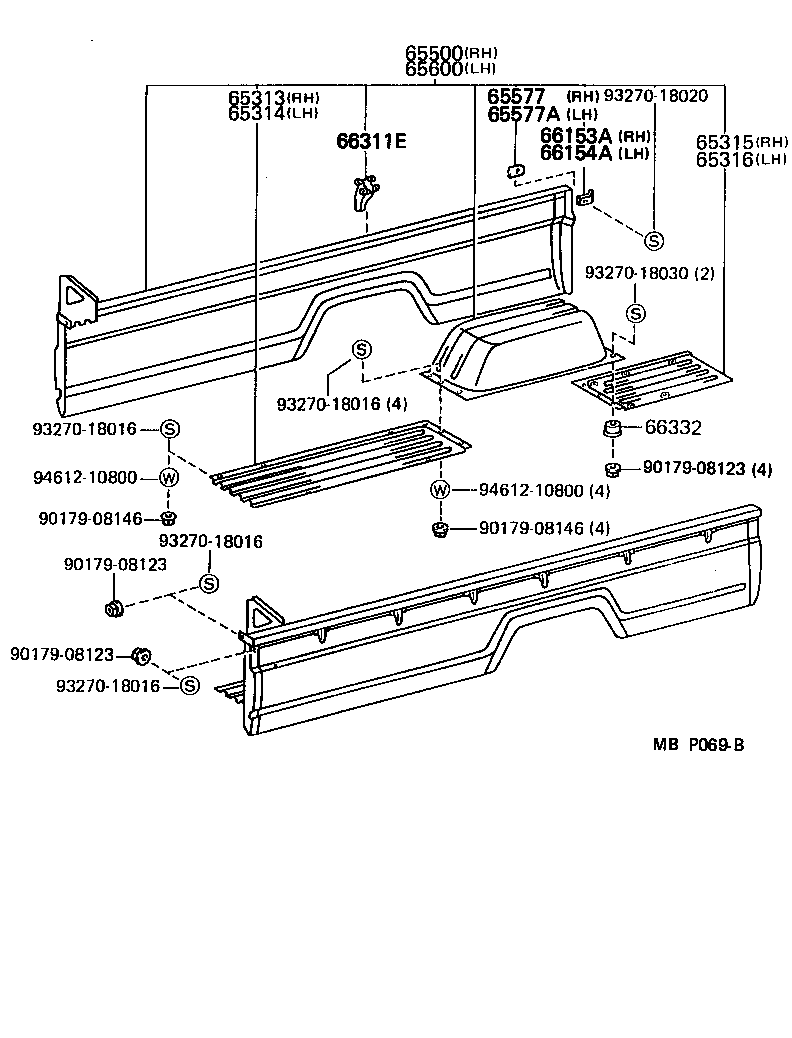

Click highlighted areas on diagram

diagram 65313 65314 65315 65316 65500 65577 65577A 65600 66153A 66154A 66311E 66332 9017908123 9017908123 9017908123 9017908146 9017908146 9327018016 9327018016 9327018016 9327018016 9327018020 9327018030 9461210800 9461210800
Part # Description Qty Price
65313 - PANEL, FLOOR FRONT CORNER, RH
65313-95027

LH80,YH81..TW..CBU

 1
65314 - PANEL, FLOOR FRONT CORNER, LH
65314-95027

LH80,YH81..TW..CBU

 1
65315 - PANEL, FLOOR REAR CORNER, RH
65315-95405

LH80,YH81..TW..CBU

 1
65316 - PANEL, FLOOR REAR CORNER, LH
65316-95405

LH80,YH81..TW..CBU

 1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-95070

LH80,YH81..TW..CBU

 1
65577 - RETAINER, TAIL GATE LATCH FEMALE
65577-95012

LH80,YH81..TW..CBU

 1
65577A - RETAINER, TAIL GATE FEMALE
65577-95012

LH80,YH81..TW..CBU

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95072

LH80,YH81..TW..CBU

 1
66153A - LATCH, TAIL GATE FEMALE, RH
66153-95012

LH80,YH81..TW..CBU

 1
66154A - LATCH, TAIL GATE FEMALE, LH
66153-95012

LH80,YH81..TW..CBU

 1
66311E - HOOK, ROPE
66311-95010

LH80,YH81..TW..CBU

 4
66332 - CUSHION, RUBBER
66332-95A00

LH80,YH81..TW..CBU

 4
Common parts
90179-08123
90179-08146
93270-18016
93270-18020
93270-18030
94612-10800
