YH81L-MDP (1987)
Toyota Dyna100
Production
Aug 1987
-
Mar 1992
Engine
2Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )TW

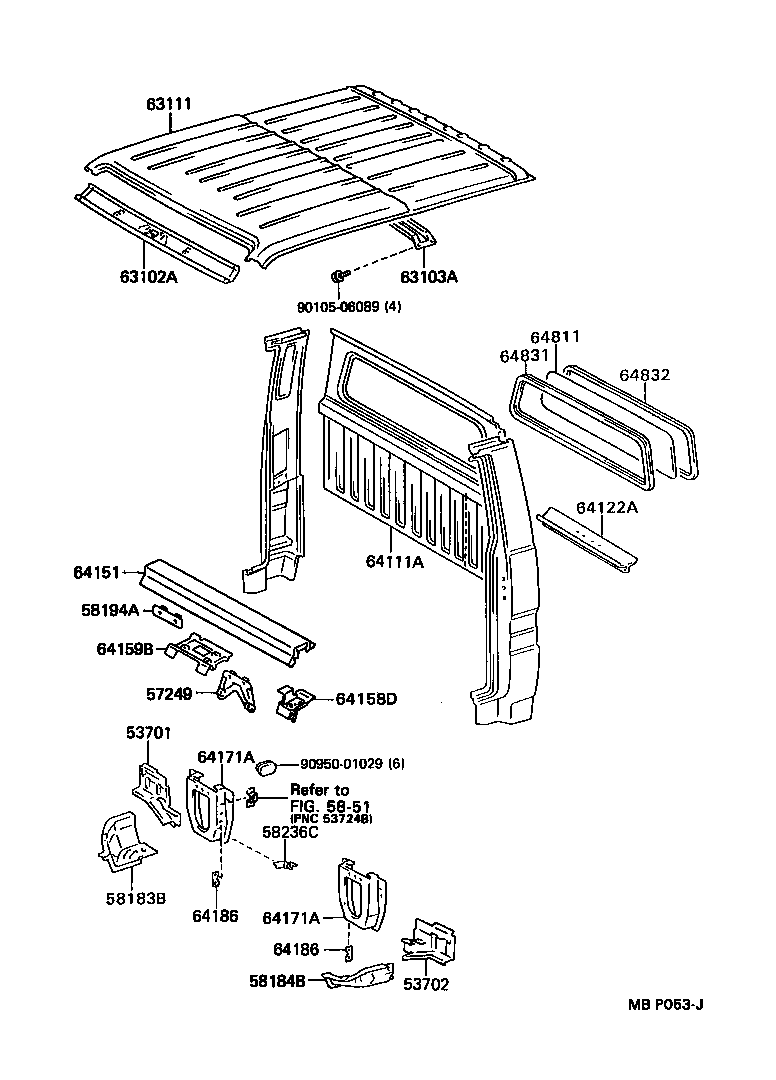

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53717-95411 |
LH80,YH81..TW |
1 | ||
| 53717-95413 |
YH81..TW..GEN |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53718-95412 |
LH80,YH81..TW |
1 | ||
| 53718-95414 |
YH81..TW..GEN |
1 | ||
| 58183B - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-95406 |
YH81..GEN;LH80..5F..T3 |
1 | ||
| 58183-95405 |
LH80,YH81 |
1 | ||
| 58184B - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-95404 |
LH80,YH81 |
1 | ||
| 58184-95405 |
YH81..GEN;LH80..5F..T3 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-95420 |
LH80,YH81 W(ROOF VENTILATOR) |
1 | ||
| 63132-95418 |
LH80,YH81 |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-95412 |
LH80,YH81..TW |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95416 |
LH80,YH81..TW W(ROOF VENTILATOR) |
1 | ||
| 63111-95417 |
LH80,YH81..TW |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64100-95450 |
LH80,YH81..TW |
1 | ||
| 64122A - BAFFLE, DUST REAR BODY | ||||
| 64122-95A06 |
LH80,YH81..TW |
1 | ||
| 64151 - FRAME, BACK | ||||
| 64151-95408 |
LH80,YH81..LHD..TW |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64171-95410 |
LH80,YH81..TW |
2 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64171-95410 |
LH80,YH81..TW |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95410 |
LH80,YH81..TW *TEM,T=3.5 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-95406 |
LH80,YH81 |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-95013 |
LH80,YH81..TW |
1 | ||
| Common parts | ||||
| 90105-06089 | ||||
| 90950-01029 | ||||
| Linked diagrams | ||||
| 5851 | ||||
