YH81L-MDP (1987)

Toyota Dyna100

Production Aug 1987 - Mar 1992
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

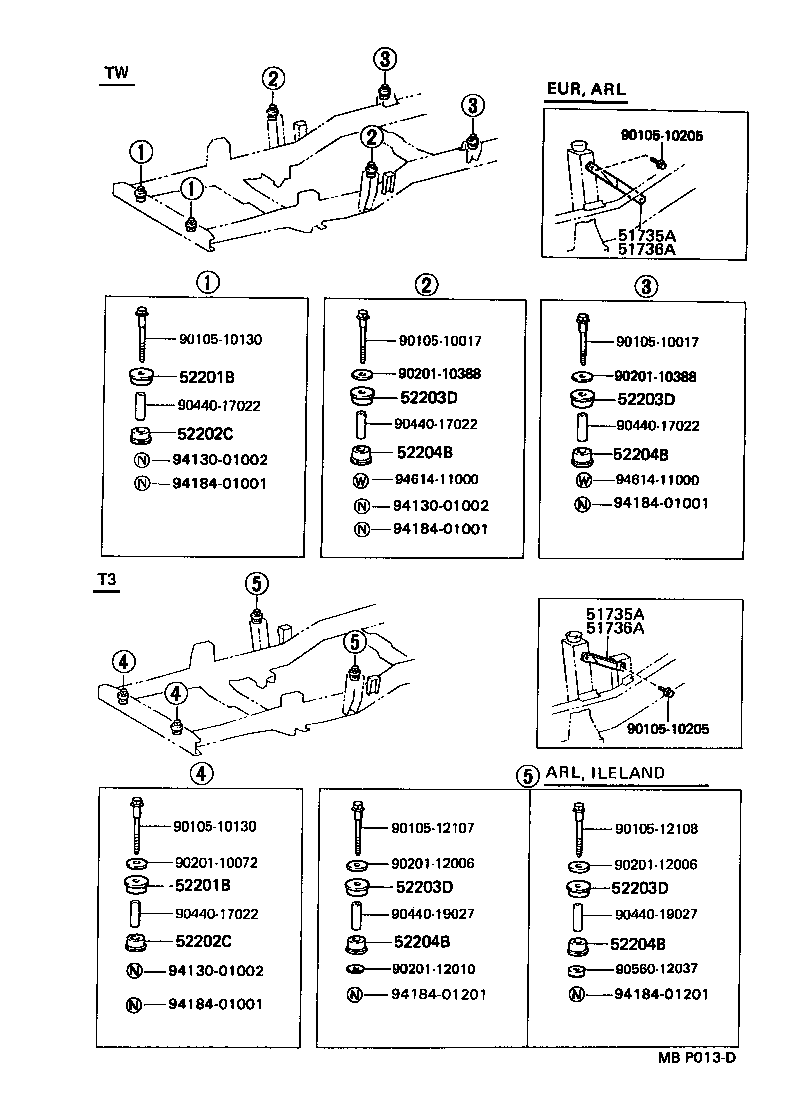

Click highlighted areas on diagram

diagram 51735A 51735A 51736A 51736A 52201B 52201B 52202C 52202C 52203D 52203D 52203D 52203D 52204B 52204B 52204B 52204B 9010510017 9010510017 9010510130 9010510130 9010510205 9010510205 9010512107 9010512108 9020110072 9020110388 9020110388 9020112006 9020112006 9020112010 9044017022 9044017022 9044017022 9044017022 9044019027 9044019027 9056012037 9413001002 9413001002 9413001002 9418401001 9418401001 9418401001 9418401001 9418401201 9418401201 9461411000 9461411000
Part # Description Qty Price
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-26010

LH80,YH81

 2
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-26010

LH80,YH81

 2
52202C - CUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER
52202-26010

LH80,YH81

 2
52202C - CUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER
52202-26010

LH80,YH81

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-26010

LH80,YH81..TW

 4
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-26010

LH80,YH81..TW

 4
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-26010

LH80,YH81..TW

 4
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-26010

LH80,YH81..TW

 4
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-26011

LH80,YH81..TW

 4
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-26011

LH80,YH81..TW

 4
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-26011

LH80,YH81..TW

 4
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-26011

LH80,YH81..TW

 4
Common parts
90105-10017
90105-10130
90105-10205
90105-12107
90105-12108
90201-10072
90201-10388
90201-12006
90201-12010
90440-17022
90440-19027
90560-12037
94130-01002
94184-01001
94184-01201
94614-11000
